Note: This article is discontinued.

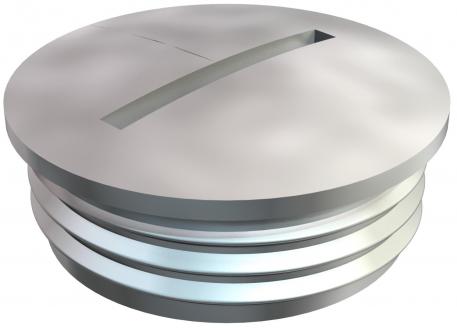

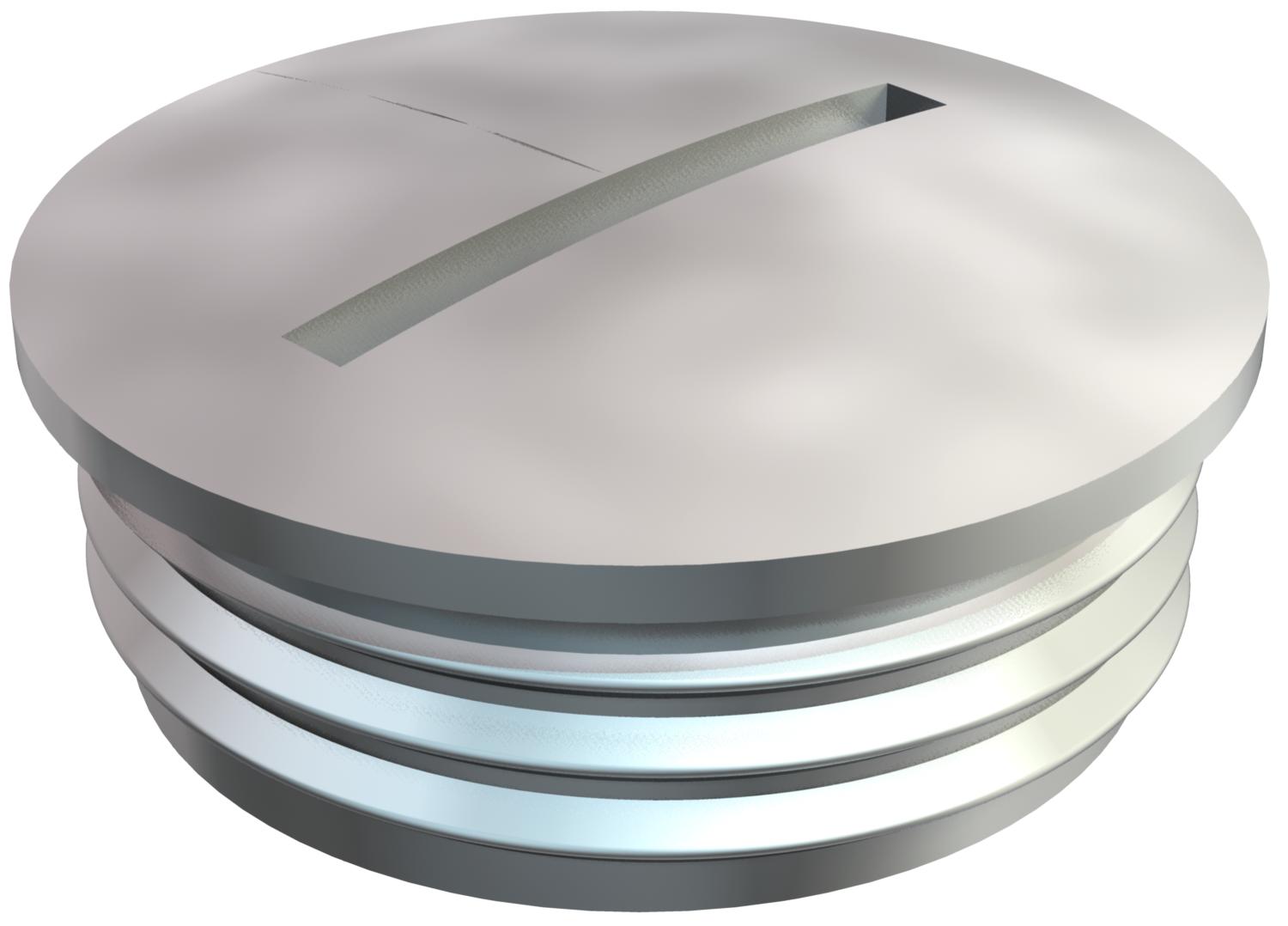

Screw plug, PG thread
Item no. 2090481 | EAN 4012195194477
- Product description
-
Product descriptionScrew plug N in accordance with DIN 46320, with PG thread to DIN 40430.
In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).
Sealing ring not contained in the scope of delivery.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Dimension PG48 explosion-proof no Fibre-glass reinforced no For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Brass Nominal thread size metric/PG 48 Product series Threaded connection accessories Protection rating IP68 ROHS-conformant Exempt Surface Nickel-plated Thread Pg 48 Thread increase 1,59 mm Thread type PG Dimensions

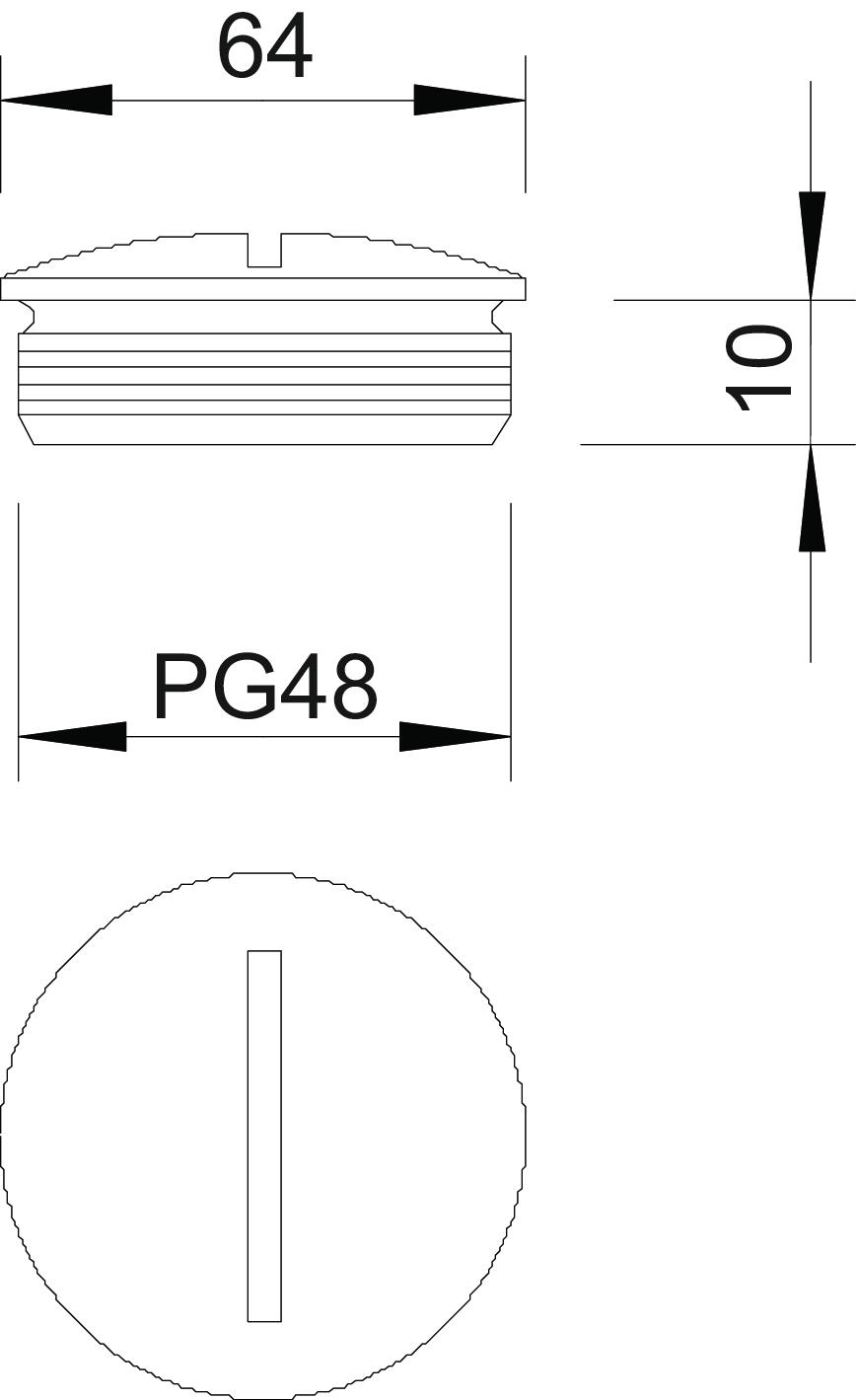

Dimension D 64 mm Dimension L 10 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3769 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,3769 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 168 MS PG48 / 2090481 , 0.17MB , pdfEU declaration of conformity 168 MS PG48 / 2090481 , 0.10MB , pdfUK Declaration of Conformity 168 MS PG48 / 2090481 , 0.09MB , pdfREACH Declaration of conformity 168 MS PG48 / 2090481 , 0.13MB , pdfRoHS Declaration of conformity 168 MS PG48 / 2090481 , 0.13MB , pdf
