Serrated washer DIN 6798 A2
Item no. 3404358 | EAN 4012195301998
- Product description
-

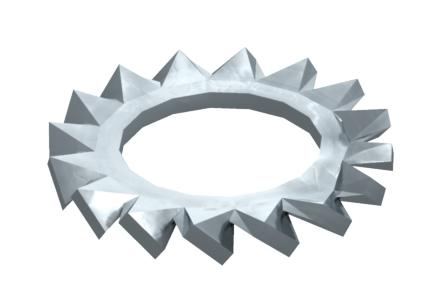

Product descriptionSerrated washer to DIN 6798, shape A.
-
- Technical data
-
Technical data
Dimension M8 External diameter 15 mm Inner diameter 0,33 mm Lock washer version Open external gearing Material Stainless steel Plate thickness 0,09 in Surface Bright, treated Thickness 2,4 mm Thread M8 Dimensions

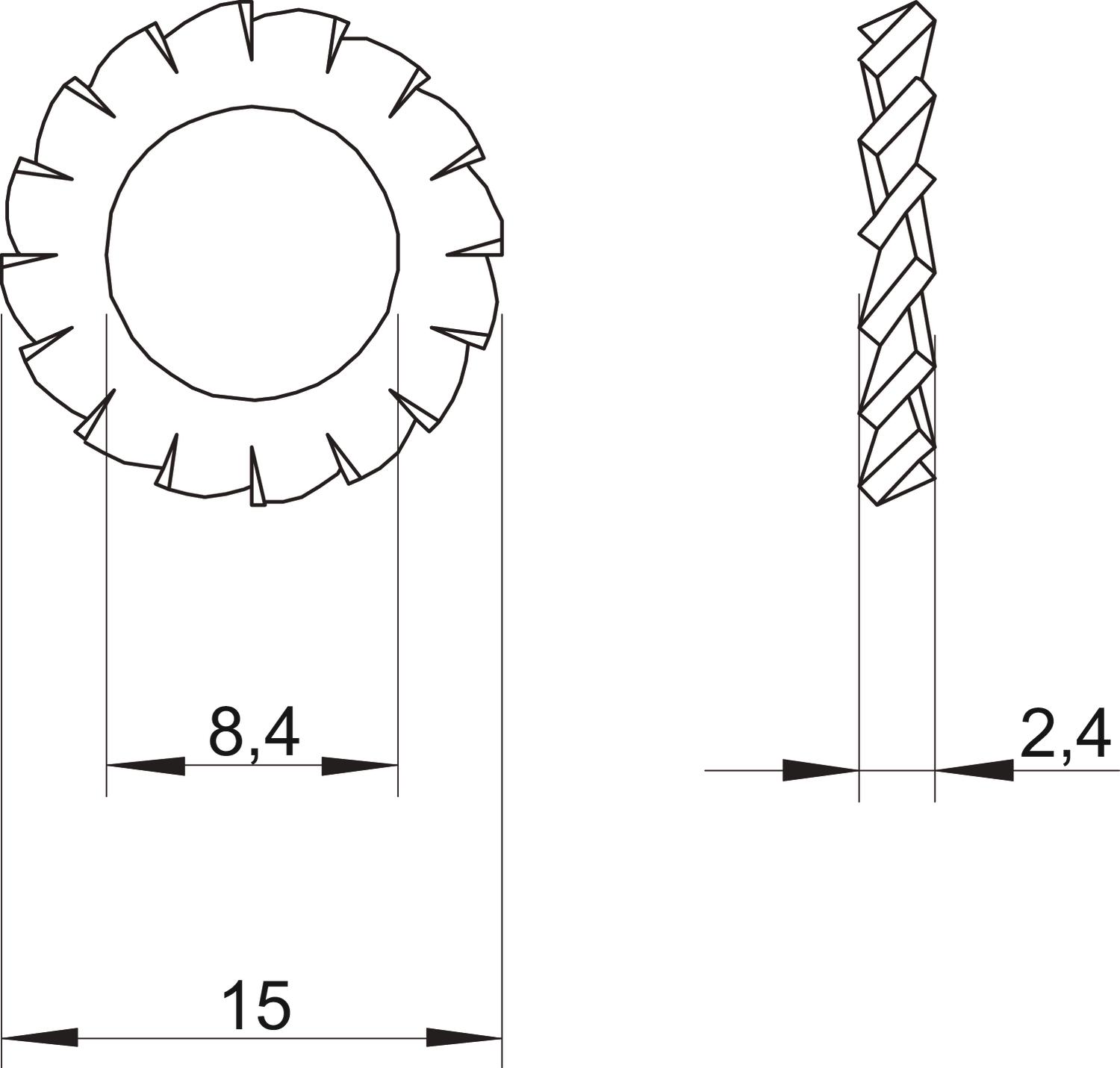

Dimension d 8,4 mm Dimension d min. 15 mm Dimension h 2,4 mm Height 2,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0032 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0032 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet SWS M8 A2 / 3404358 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity SWS M8 A2 / 3404358 , 0.13MB , pdfRoHS Declaration of conformity SWS M8 A2 / 3404358 , 0.13MB , pdf
