Service pole, type ISSHS140250 250 | Pure white; RAL 9010

Service pole, type ISSHS140250

Item no. 6290020 | EAN 4012195161226

Item no. / Types

Length	250 mm

Colour

Product description

Product description

ISS aluminium service pole, 2-compartment, with a 76.5 mm system opening.

Empty, equippable with standard devices (socket, telephone, etc.), max. 4 devices.

Fixing possible directly on floor. Accessory mounting boxes to be ordered separately.

The service pole is suitable for accepting front-locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.

Technical data

Technical data

Adjustable	no
Cable entry	Bottom
Ceiling mounting	no
Changes according to location	no
Colour	Pure white; RAL 9010
Continuous profile	yes
Cover width	76,5 mm
Dimension	250x130x140
Fastening type	Bolts

Floor mounting	yes
Halogen-free	yes
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole shape	Rectangular
Pre-wired	no
Version for	Double-sided

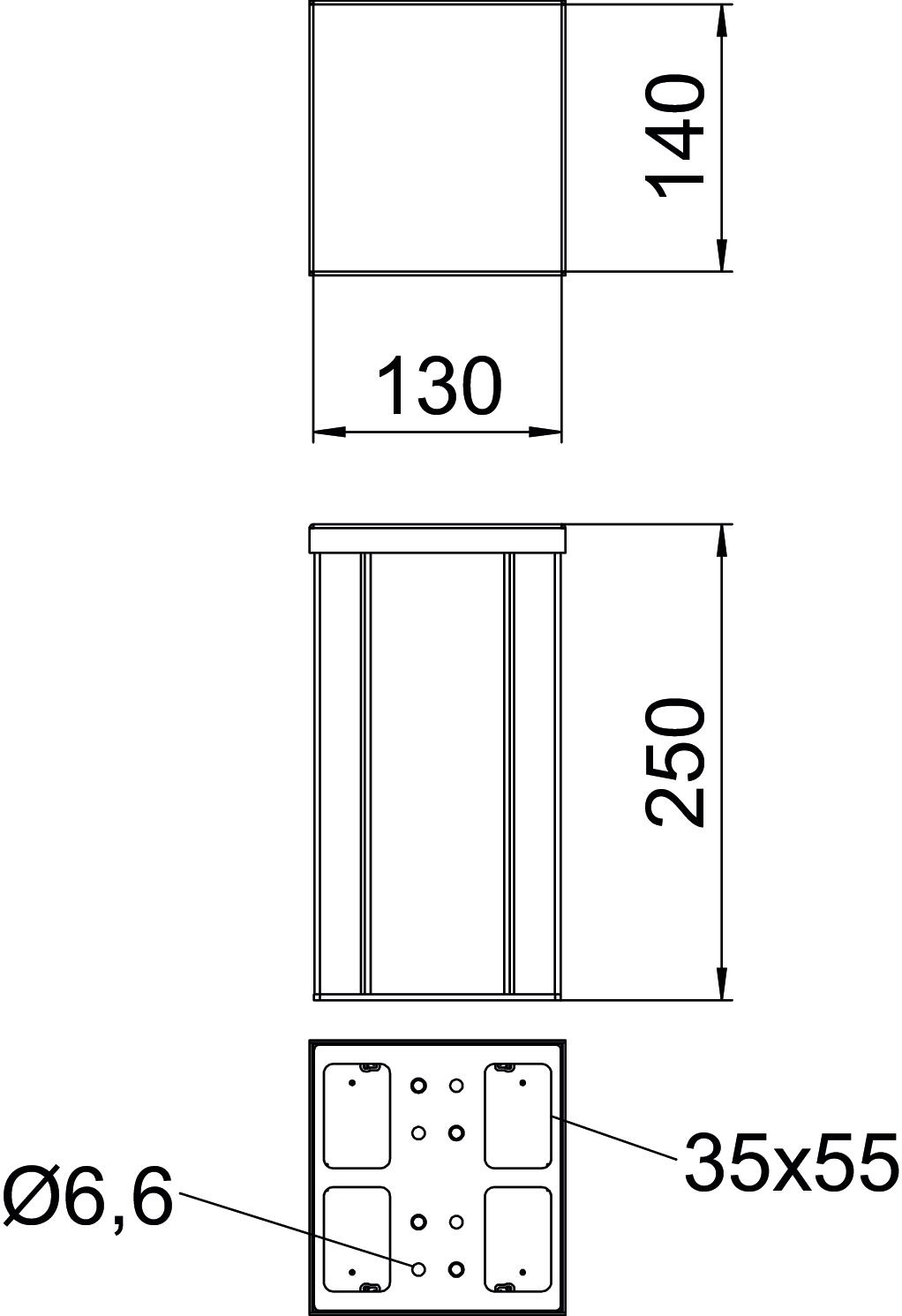

Dimensions

Height	140 mm
Length	250 mm

Pole height, min.	250 mm
Width	130 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	22,0798 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	22,0798 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
ISSHS140250RW	250 mm	Pure white; RAL 9010	6290020	piece	1 piece
ISSHS140250EL	250 mm	aluminium	6290023	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
