Skirting trunking SL 2050 2000 | Pure white; RAL 9010

Skirting trunking SL 2050

Item no. 6132193 | EAN 4012196726639

Item no. / Types	6132193 / SL 2050 rws

Length	2000 mm

Colour	Pure white; RAL 9010

Product description

Product description

SL skirting trunking for covered cable routing in internal areas. The colour of the trunking bases can vary depending on the production method.

With snap-on cover and base, with base perforation for direct wall mounting. Change the direction with the fittings and close the trunking ends with end pieces. Device support for mounting power and data technology.

Technical data

Technical data

Colour	Pure white; RAL 9010
Cover sealing lip	Without
Decoration	Without
Halogen-free	no
Material	Polyvinylchloride
Mounting perforation in base	yes
Number of fixed partitions	1

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK06
Protective film	no
Usable cross-section	580 mm²
With carpet strip	no

Dimensions

Height	20 mm
Length	2000 mm

Width	50 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,7415 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	0,7415 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
SL 2050 rws	2000 mm	Pure white; RAL 9010	6132193	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Device support SL2GT5070	SL2GT5070 rws	6132245	piece	1 piece
End piece SL ESli2050	SL ESli2050 rws	6132293	piece	10 piece
End piece SL ESre2050	SL ESre2050 rws	6132277	piece	10 piece
Internal corner SL IE2050	SL IE2050 rws	6132248	piece	10 piece

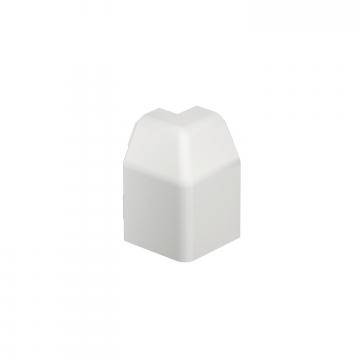

External corner SL AE2050	SL AE2050 rws	6132265	piece	10 piece
