Spreading anchor, plastic 50 | 10 | 70 |

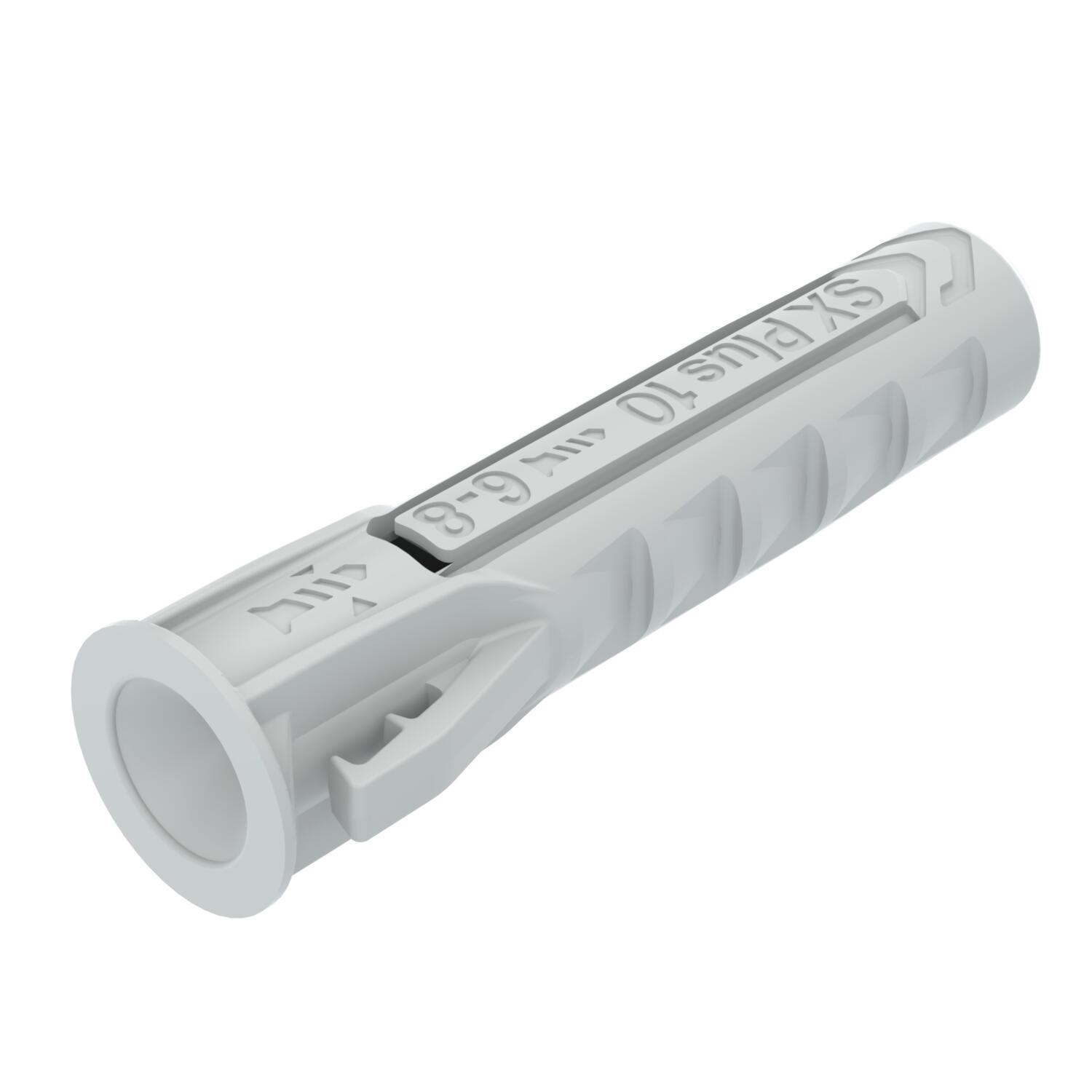

Spreading anchor, plastic

Item no. 2347729 | EAN 4012197504694

Item no. / Types

Length

Diameter

Drill hole depth

Product description

Product description

Nylon spreading anchor for mounting components on walls and ceilings. Suitable for solid building materials such as concrete, sand-lime brick and masonry. With pre-fixing of the screw for easy overhead mounting. The given load values are valid for wood screws with the specified diameter.

Technical data

Technical data

Colour	Light grey
Diameter	10 mm

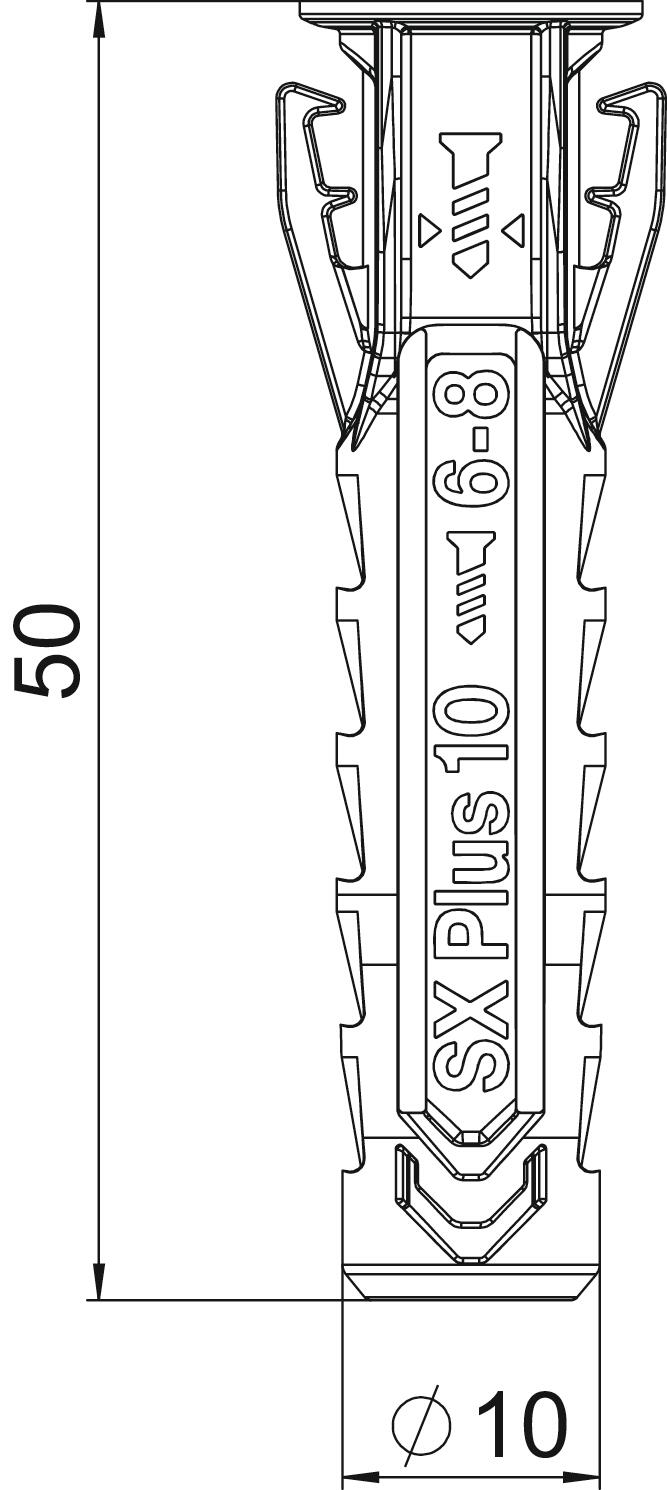

Dimension	10x50
Dimension D	10 mm
Dimension L	50 mm
Drill hole depth	70 mm
Length	50 mm

Material	Polyamide
Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	yes
Suitable for screw diameter, max.	8 mm
Suitable for screw diameter, min.	6 mm
Version for	Spreading anchor
With bolts	no

All types

All types

Types	Length	Diameter	Drill hole depth	Item no.	Quantity	SSU
SX Plus 6x30	30 mm	6 mm	40 mm	2347723	piece	1 piece
SX Plus 8x40	40 mm	8 mm	50 mm	2347726	piece	1 piece
SX Plus 10x50	50 mm	10 mm	70 mm	2347729	piece	1 piece
SX Plus 12x60	60 mm	12 mm	80 mm	2347732	piece	1 piece
SX Plus 5x25	25 mm	5 mm	35 mm	2347720	piece	1 piece
