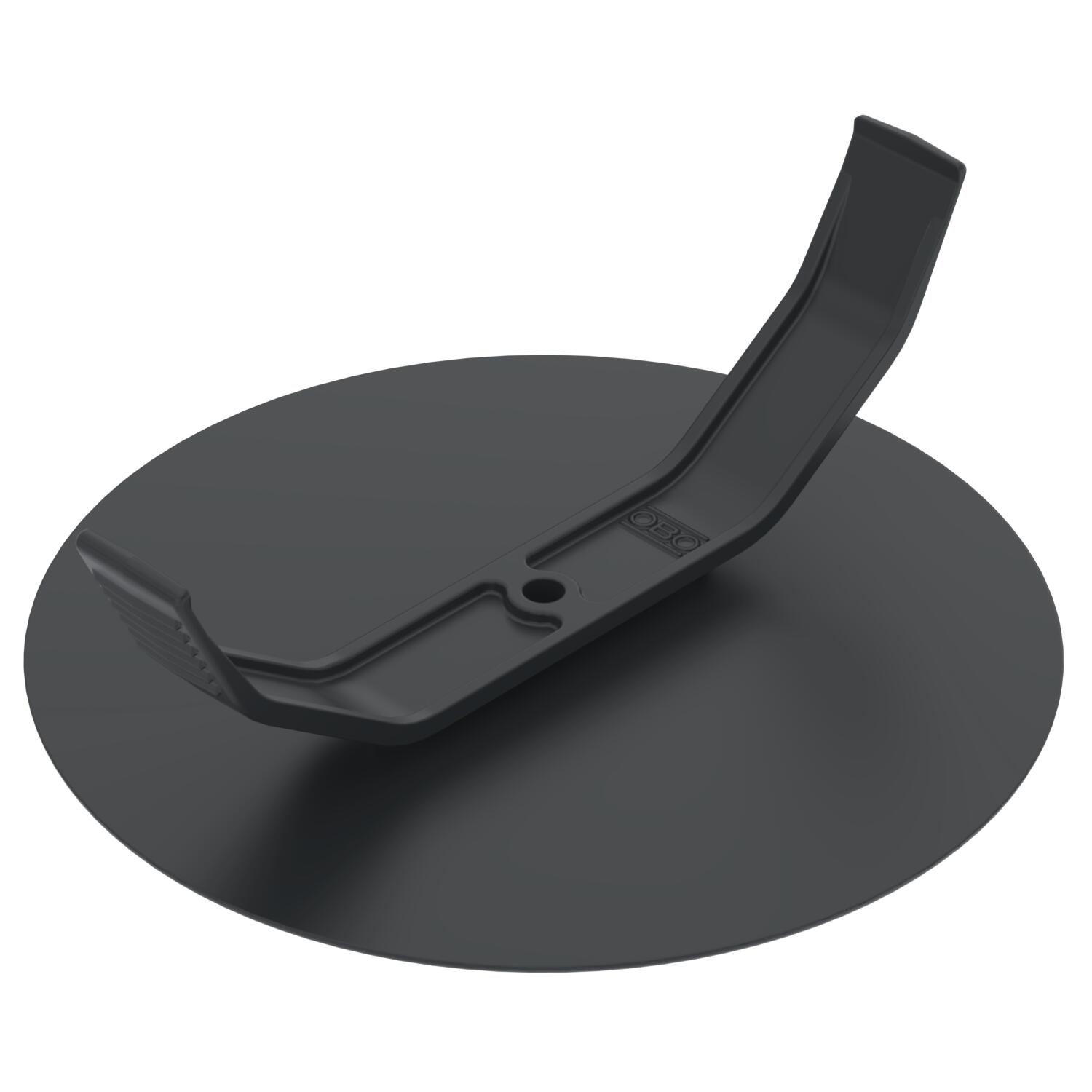

Sprung lid, 60 mm, black
Item no. 2003750 | EAN 4012197486211
- Product description
-
Product descriptionSprung lid with centrally moulded, elastic spreading spring, for sockets with Ø 60 mm, lid edge is flush, surface is roughened.
-
- Technical data
-
Technical data
Colour Black Diameter 60 mm Dimension Ø72 Fastening type Spring cover Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Material Polystyrene Product series BlackLine, WIN Series ROHS-conformant yes Sealable no Shape Round With bolts no Dimensions

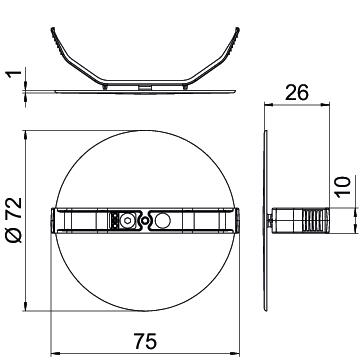

Height 26 mm Length 75 mm Width 72 mm - All types
- Downloads
-
Data sheet ZA 60-FD SW / 2003750 , 0.16MB , pdfEU declaration of conformity ZA 60-FD SW / 2003750 , 0.10MB , pdfREACH Declaration of conformity ZA 60-FD SW / 2003750 , 0.13MB , pdfRoHS Declaration of conformity ZA 60-FD SW / 2003750 , 0.13MB , pdfNo invitation to tender text is available for this product.
