Note: This article is discontinued.

Support clamp, for pipes, closed/side | | | 18 | 24 | | | 2 | 4

morepic-1

morepic-2

morepic-3

Support clamp, for pipes, closed/side

Item no. 1483681 | EAN 4012196502561

Item no. / Types	1483681 / BCHPC 2-4 D20

Pipe/cable diameter, min.	18 mm

Pipe/cable diameter, max.	24 mm

Flange thickness F min.	2 mm

Flange thickness F max.	4 mm

Product description

Product description

Beam clamp for knocking in with closed pipe seat as individual fastening solution on the beam.

Technical data

Technical data

Breaking load	0,45 kN
Connection type/component	Pipe/cable
Dimension	2-4mm
Fastening type	Clamp
Flange thickness F max.	4 mm
Flange thickness F min.	2 mm

Hinge, adjustable	no
Hinged	no
Material	Steel
Pipe/cable diameter, max.	24 mm
Pipe/cable diameter, min.	18 mm
Surface	Zinc slat

All types

All types

Types	Pipe/cable diameter, min.	Pipe/cable diameter, max.	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
BCHPC 2-4 D20	18 mm	24 mm	2 mm	4 mm	1483681	piece	50 piece

Downloads

Data sheet BCHPC 2-4 D20 / 1483681 , 0.15MB , pdf

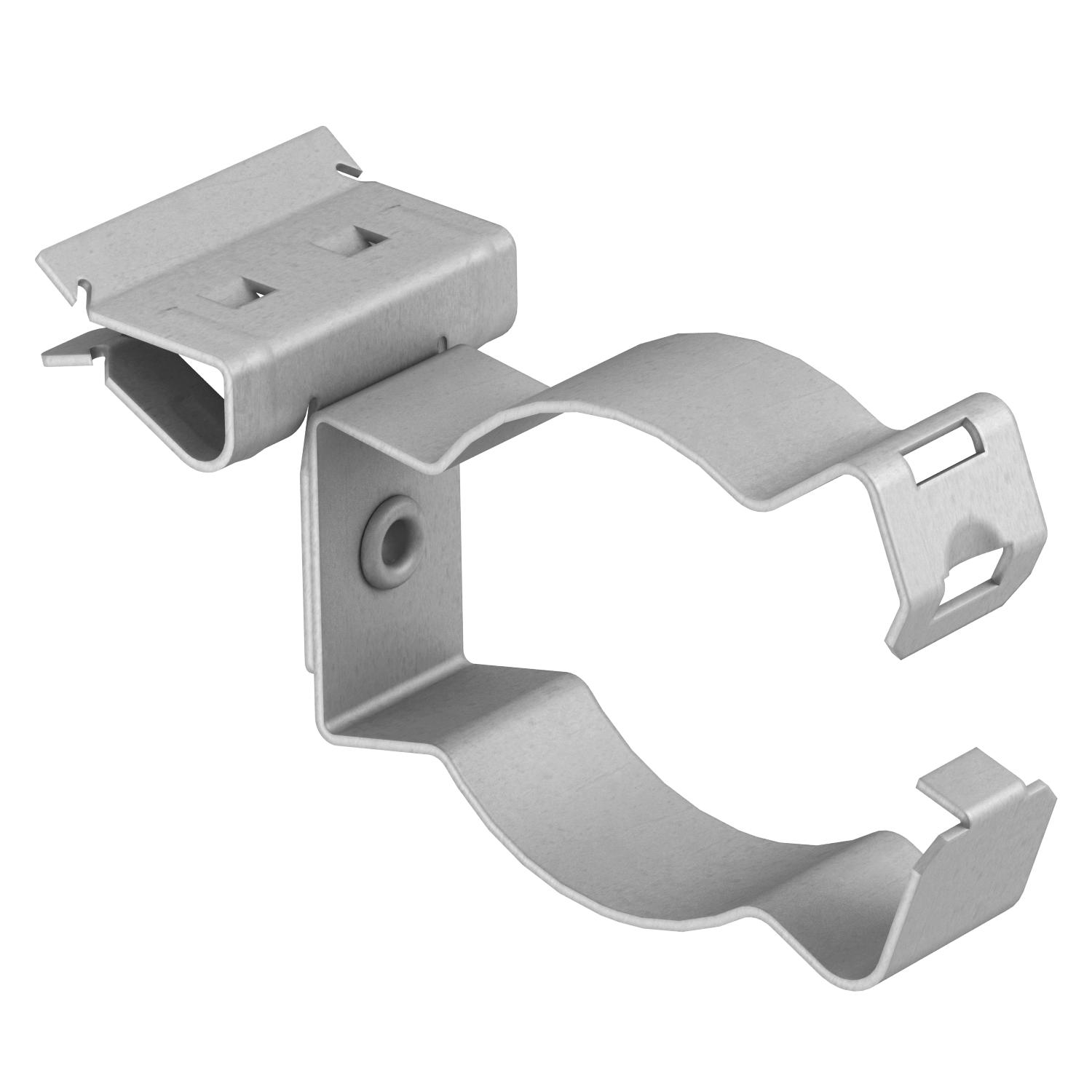

Product graphic BCHPC 2-4 D20 / 1483681, 77.97 kB, jpg

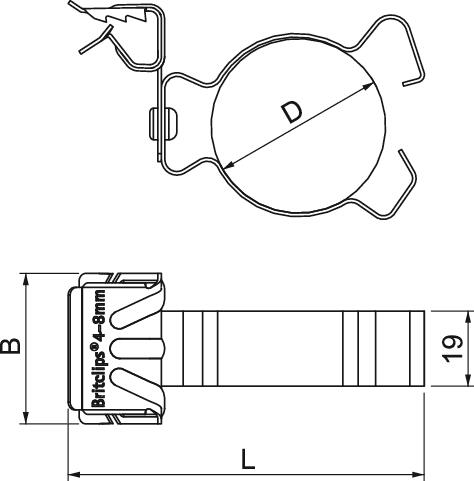

Scale drawing BCHPC 2-4 D20 / 1483681, 23.31 kB, jpg
