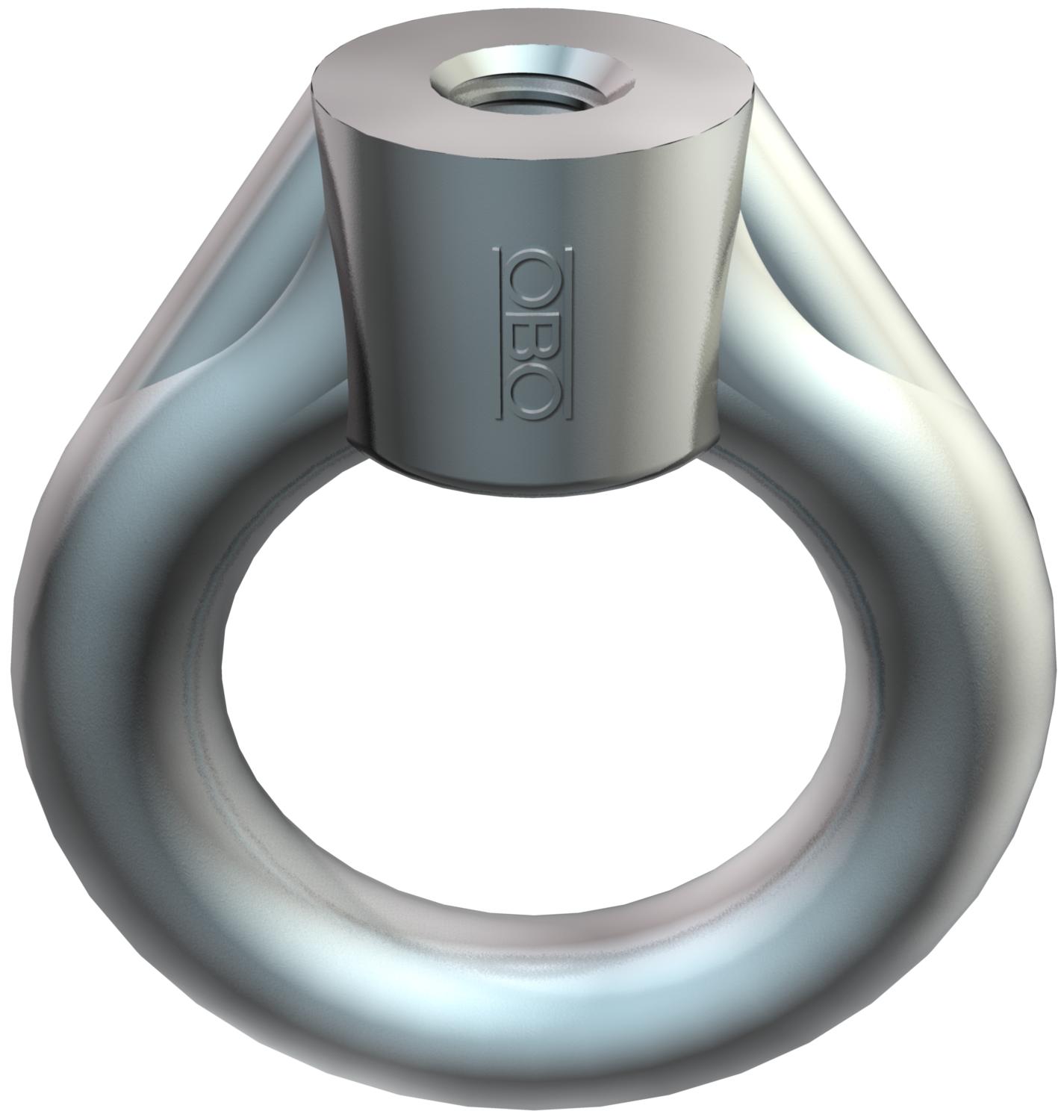

Suspension eyelet
Item no. 3464083 | EAN 4012195307396
- Product description
-
Product descriptionM8 suspension lug
-
- Technical data
-
Technical data
Breaking load 1,1 kN Dimension M8 Material Die-cast zinc Surface Electrogalvanised Thread metric 8 Dimensions

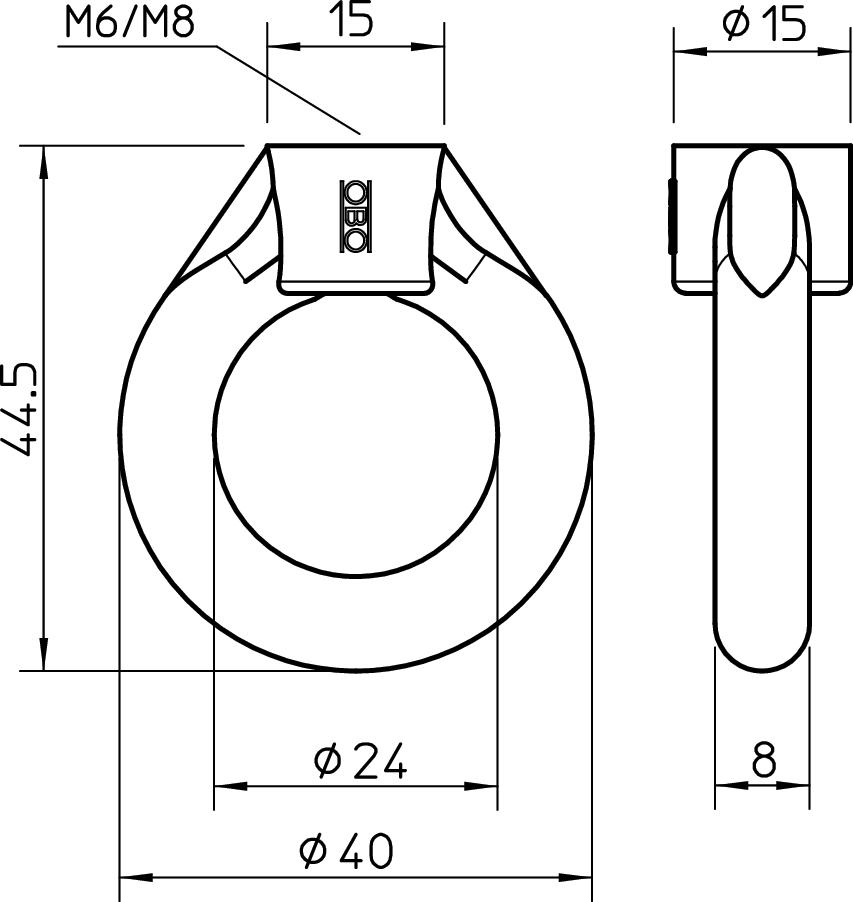

Dimension b 8 mm Dimension BØ 15 mm Dimension D 40 mm Dimension d Ø 24 mm Dimension L 44,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1745 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1745 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2085 M8 G / 3464083 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 2085 M8 G / 3464083 , 0.12MB , pdfRoHS Declaration of conformity 2085 M8 G / 3464083 , 0.13MB , pdf
