T piece 110 FS
Item no. 6225292 | EAN 4012196444304
- Product description
-

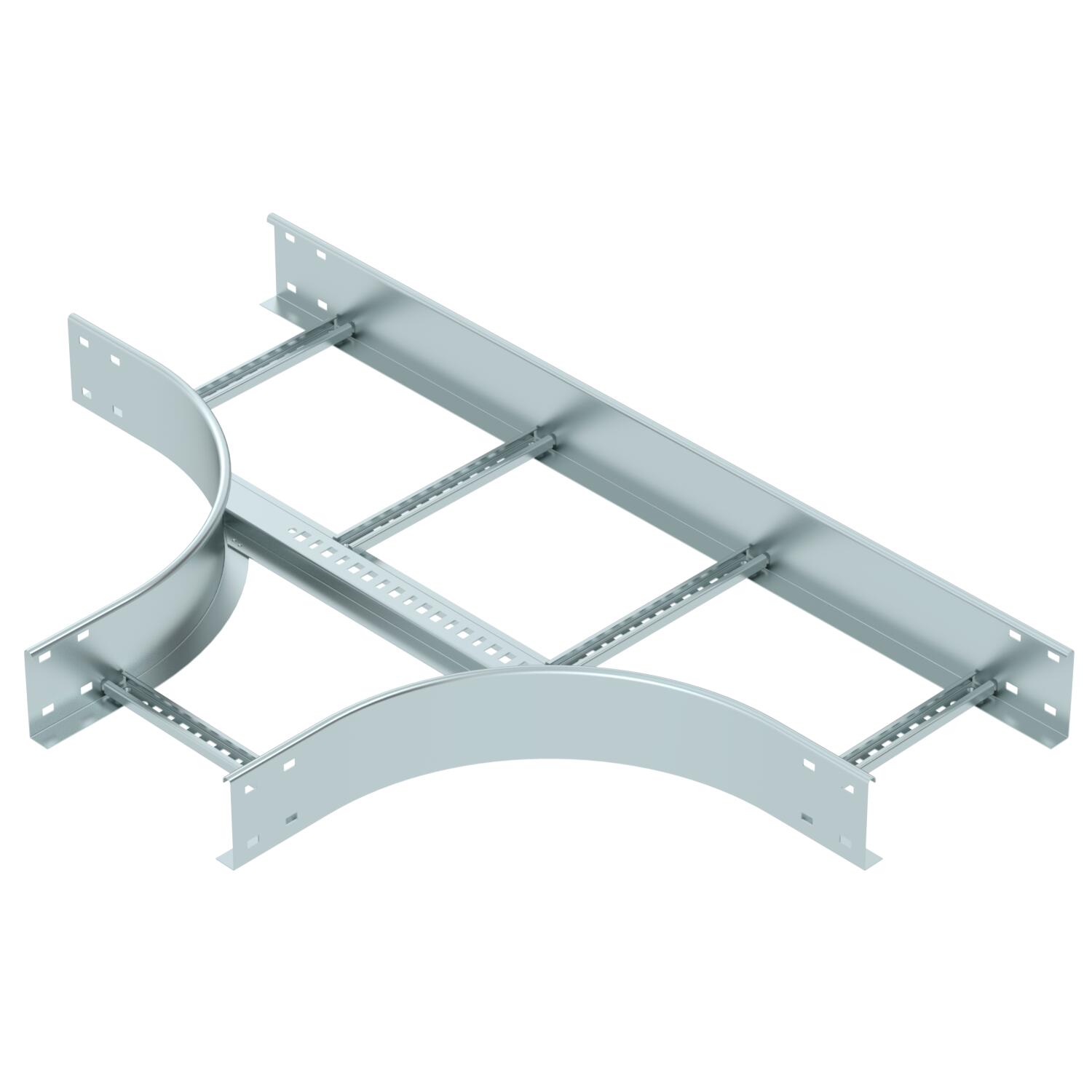

Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors Dimension 110x300 Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Dimensions
Dimension B 300 mm Dimension R 300 mm Height 110 mm Width 300 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 18,6635 kg CO2e / 1 Piece CO₂ Footprint (GWP) 18,6635 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 110 FS 6216545 10 piece - Downloads
-
Data sheet LT 1130 R3 FS / 6225292 , 0.19MB , pdfEU declaration of conformity LT 1130 R3 FS / 6225292 , 0.10MB , pdfUK Declaration of Conformity LT 1130 R3 FS / 6225292 , 0.09MB , pdfREACH Declaration of conformity LT 1130 R3 FS / 6225292 , 0.12MB , pdfRoHS Declaration of conformity LT 1130 R3 FS / 6225292 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
