Tension jack A4 16 | 15.5 | 125 | 8 | M12
morepic-1 morepic-2 morepic-3

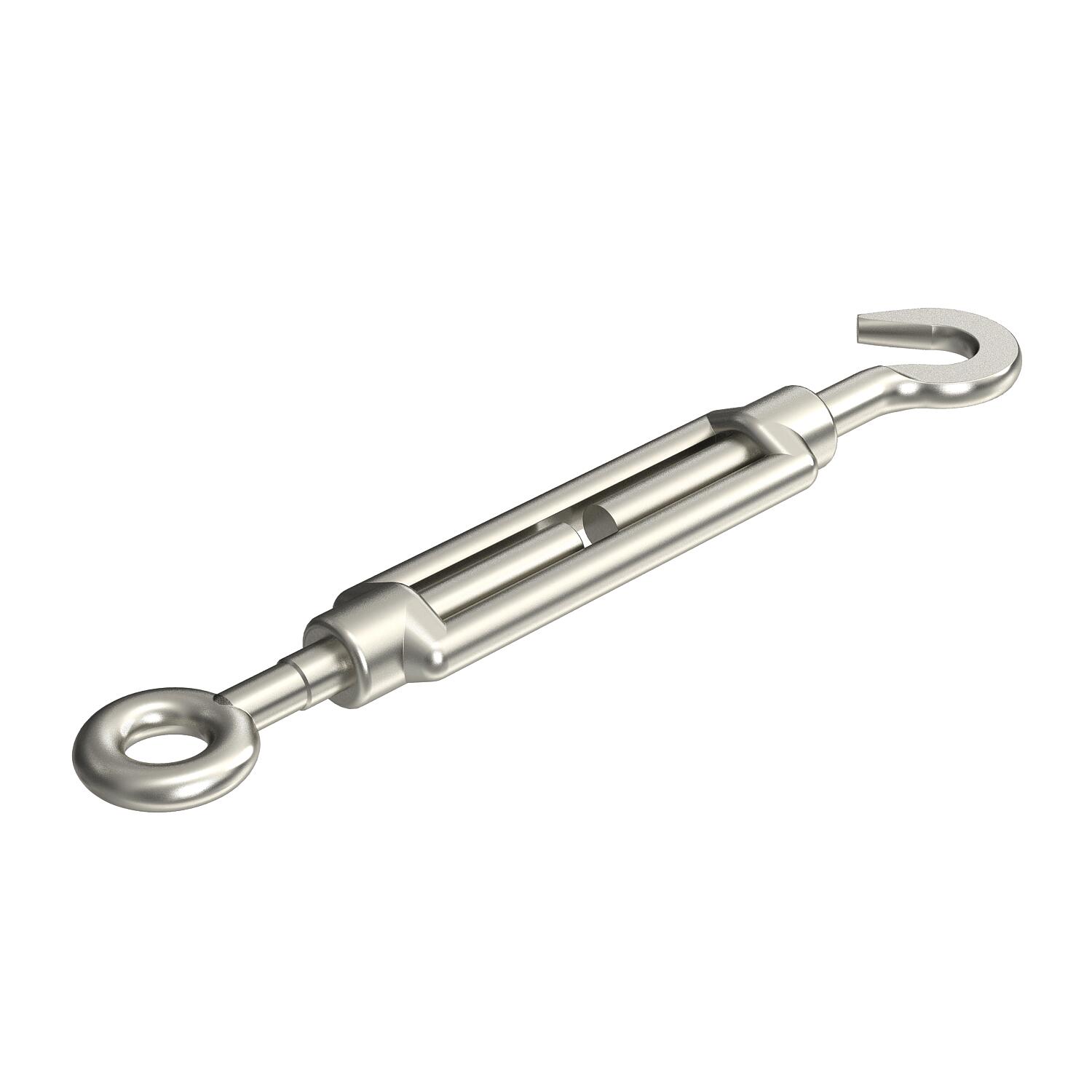

Tension jack A4

Item no. 5300127 | EAN 4012195901198

Product description
Product description
With hook and eye, to DIN 1480.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Breaking load 8 kN
Diameter, interior 16/15,5 mm
Dimension M12
Length of clamping nut C 125 mm
Material Stainless steel 1.4401
Span width 85 mm
Surface Bright, treated
Thread M12

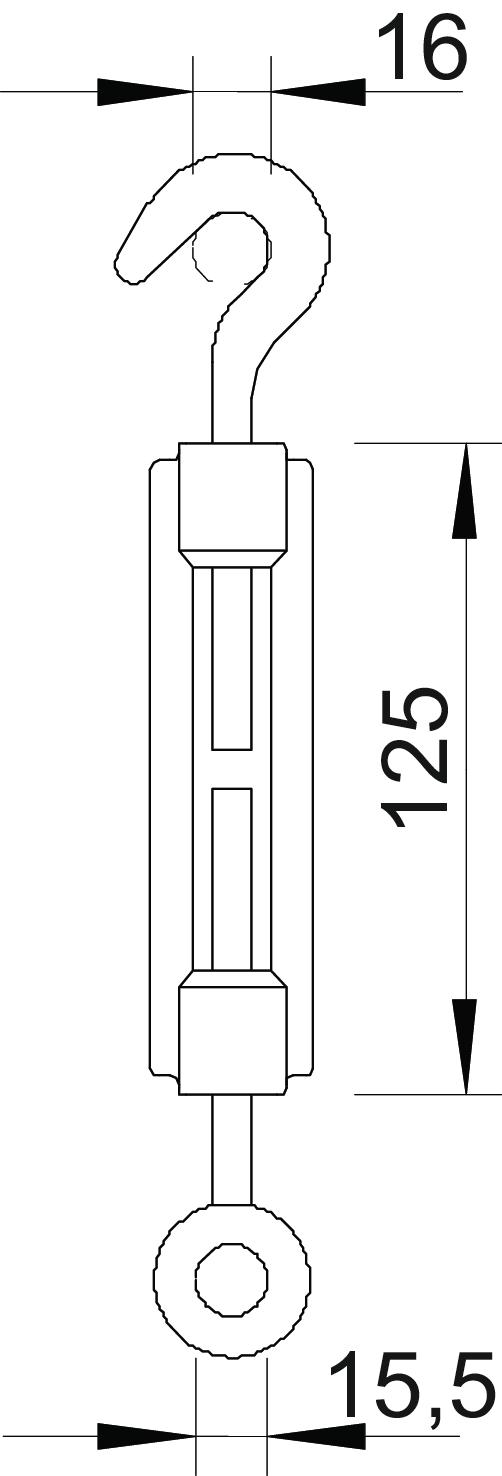

Dimensions

Dimension A 16 mm
Dimension B 15,5 mm
Dimension C 125 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 2,0053 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 2,0053 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension A Dimension B Dimension C Breaking load Thread Item no. Quantity SSU
945 M6 A4 9 mm 8.5 mm 110 mm 2 kN M6 5300120
5 piece
945 M10 A4 14 mm 13.5 mm 125 mm 5 kN M10 5300124
5 piece
945 M12 A4 16 mm 15.5 mm 125 mm 8 kN M12 5300127
5 piece
