Tension jack G 22 | 19 | 170 | 8.5 | M16
morepic-1 morepic-2 morepic-3

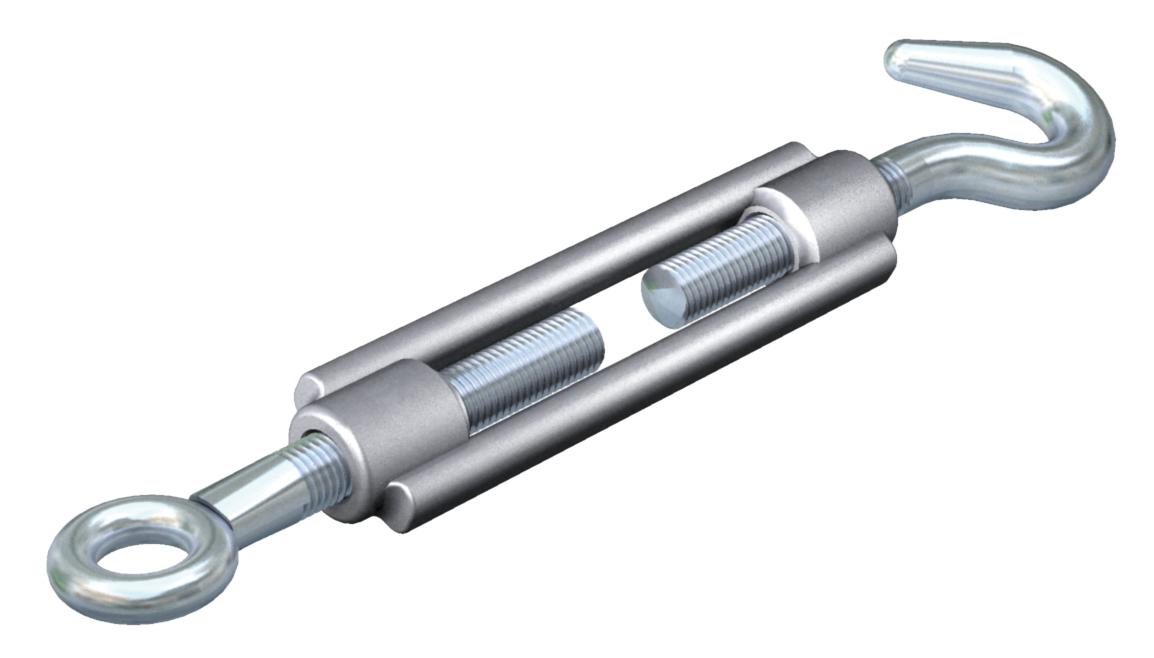

Tension jack G

Item no. 5300088 | EAN 4012195413714

Product description
Product description
With hook and eye, to DIN 1480.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Breaking load 8,5 kN
Diameter, interior 22/19 mm
Dimension M16
Length of clamping nut C 170 mm
Material Steel
Span width 110 mm
Surface Electrogalvanised
Thread M16

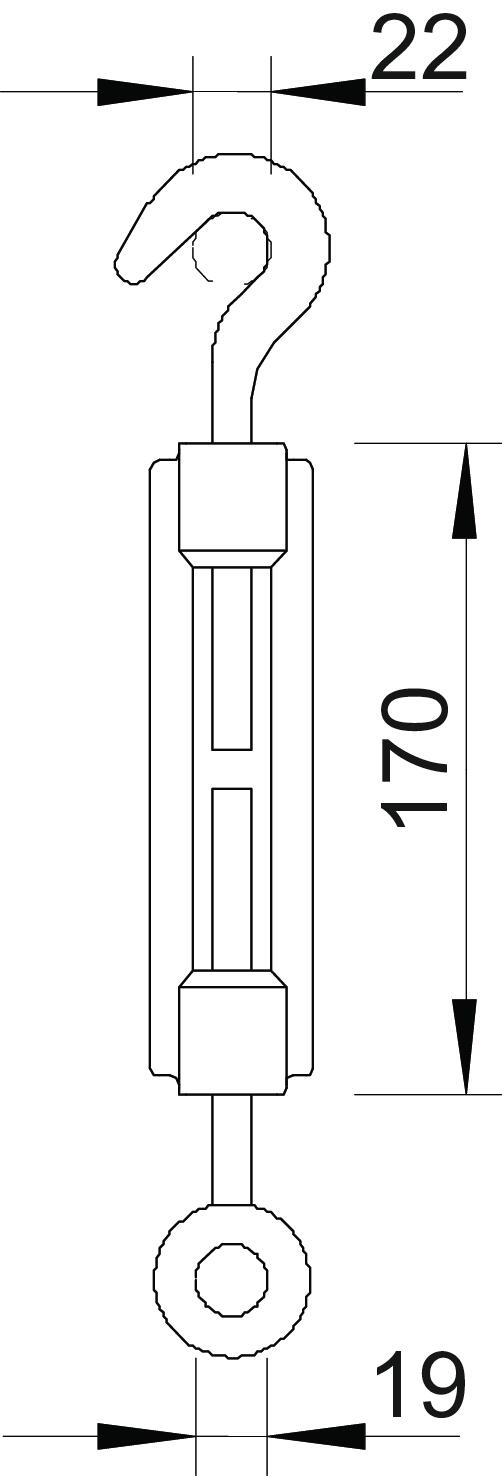

Dimensions

Dimension A 22 mm
Dimension B 19 mm
Dimension C 170 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 1,8173 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 1,8173 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension A Dimension B Dimension C Breaking load Thread Item no. Quantity SSU
945 M6 G 9 mm 8.5 mm 110 mm 2 kN M6 5300037
5 piece
945 M10 G 14 mm 13.5 mm 125 mm 5 kN M10 5300053
5 piece
945 M12 G 16 mm 15.5 mm 125 mm 7 kN M12 5300061
5 piece
945 M16 G 22 mm 19 mm 170 mm 8.5 kN M16 5300088
5 piece
