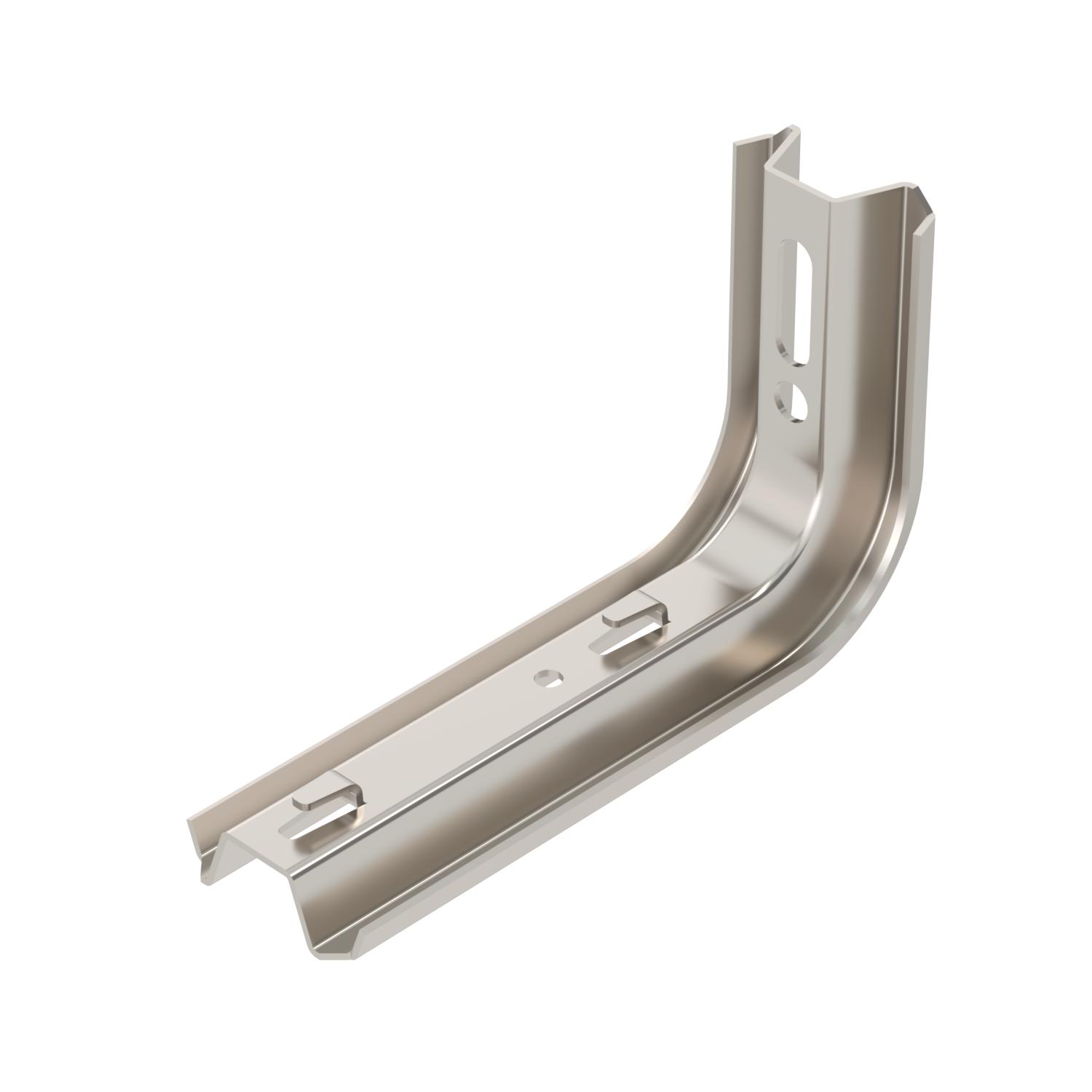

TP support / wall and support bracket A2
Item no. 6366146 | EAN 4012195617792
- Product description
-
Product descriptionTP bracket with clamping lugs for screwless mesh cable tray fastening.
If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.
-
- Technical data
-
Technical data
Colour stainless steel Dimension B195mm F in kN 1 kN for width max. 150 mm for width min. 150 Maintain electrical functions no Material Stainless steel 1.4301 Rustproof steel, pickled no Surface Bright, treated Dimensions

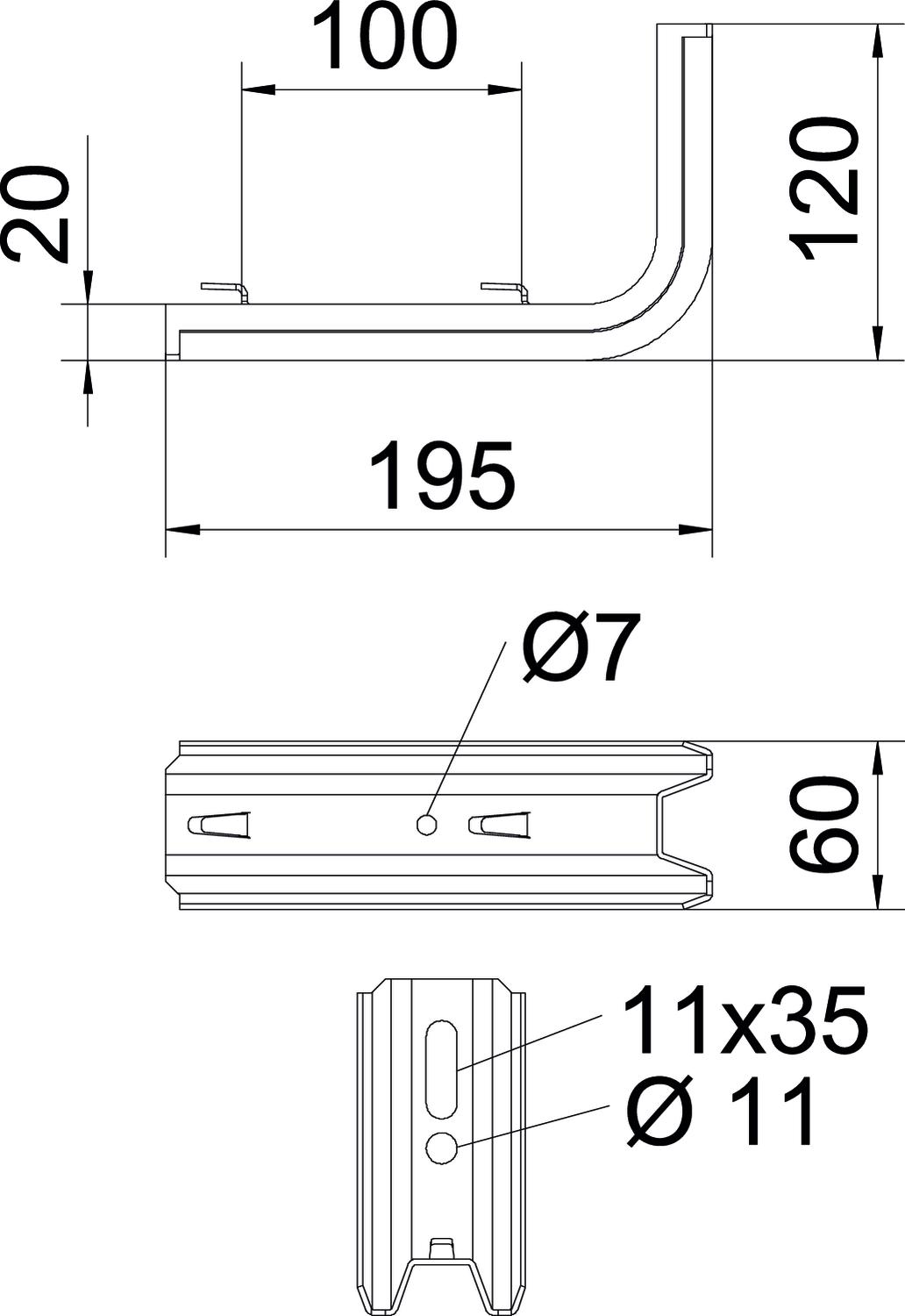

Dimension B 60 mm Dimension H 120 mm Dimension L 195 mm Dimension W 100 mm Height 120 mm Length 195 mm Width 60 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,9268 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,9268 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 Technical data
Load diagram, bracket, type TPSAG
- All types
- Downloads
-
Data sheet TPSAG 195 A2 / 6366146 , 0.28MB , pdfEU declaration of conformity TPSAG 195 A2 / 6366146 , 0.10MB , pdfUK Declaration of Conformity TPSAG 195 A2 / 6366146 , 0.09MB , pdfREACH Declaration of conformity TPSAG 195 A2 / 6366146 , 0.12MB , pdfRoHS Declaration of conformity TPSAG 195 A2 / 6366146 , 0.12MB , pdfEnvironmental Product Declaration (EPD) TPSAG 195 A2 / 6366146 , 1.48MB , pdfSelection aid GR-Magic® , 0.27MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
