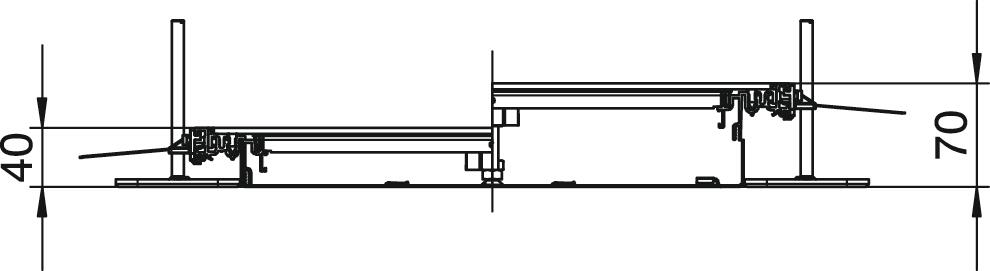

Trunking unit, blank, height 40−70 mm 2400 | 200 | 40 | 70 | 3

Trunking unit, blank, height 40−70 mm

Item no. 7424400 | EAN 4012195244127

Item no. / Types

Length	2400 mm

Width

Duct height, min.	40 mm

Trunking height, max.	70 mm

Covers	3

Product description

Product description

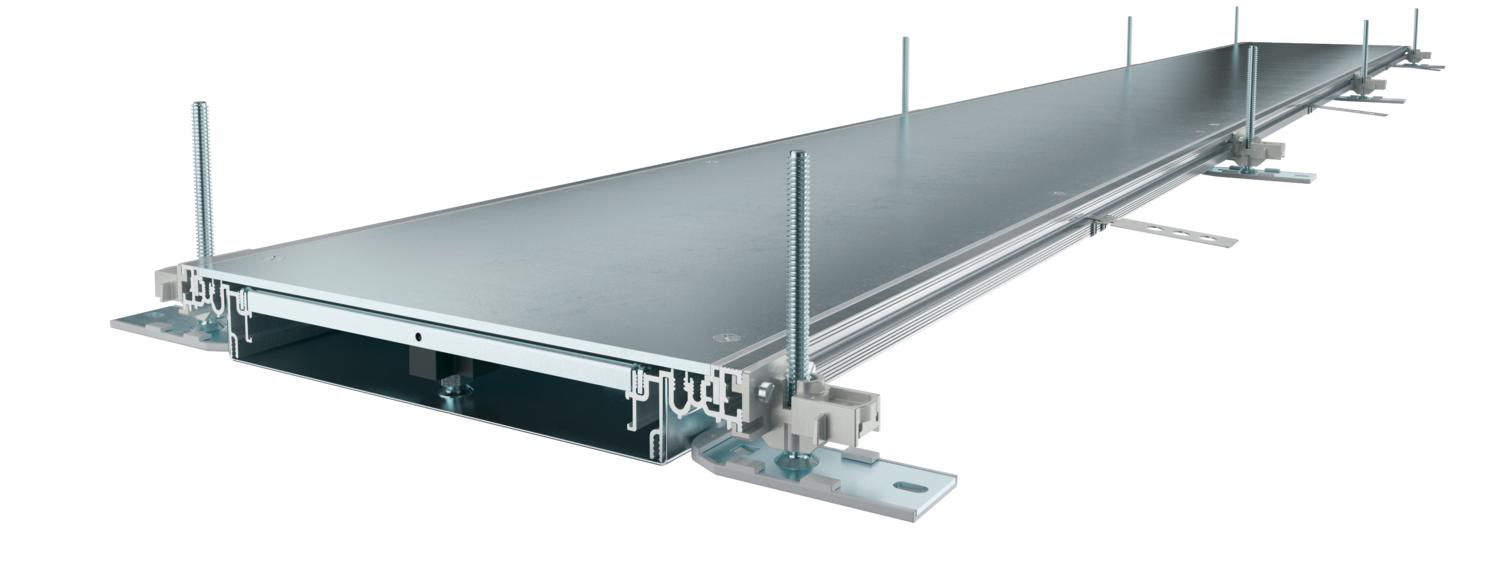

Ready-to-mount trunking unit with three blanking lids for cable laying, consisting of the trunking base (floor trough with side and floor covering contact profiles) and trunking lid. Floor trough with holding straps for self-contacting mounting of separating retainers. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and lid butt seals (3x for nominal trunking widths of 200 and 300) or height-adjustable lid butt supports: 3x for nominal trunking width 400 and 6x for nominal trunking widths 500 and 600. Trunking lid screwed on for delivery.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	46,9561 kg CO2e / 1 Meter
Cover fastening, locking	no
Cover material thickness	4
Covers	3
Decouplable	no
Dimension	2400x200x40
Duct height, min.	40 mm
Floor plate	yes
Height-adjustment range, max.	70 mm
Height-adjustment range, min.	40 mm
Installation opening for on-floor tank	no
Length	2400 mm
Material	Steel
Minimum screed height	40
Mounting opening	Without
Mounting opening cover	no

Number of compartments	2 St.
Number of insertable partitions	1
Number of planned flush-mount units	3
Removable cover	yes
Seal installation option	yes
Separating retainer fastening	Lock
Suitable for expansion joint	no
Surface	Strip galvanized
Trunking height, max.	70 mm
Usable cross-section	2600 mm²
Width	200 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes
With separating retainer	no
