Underfloor duct, 2 pieces, 2-compartment, duct height 28 mm
Item no. 7400256 | EAN 4012197351908
- Product description
-

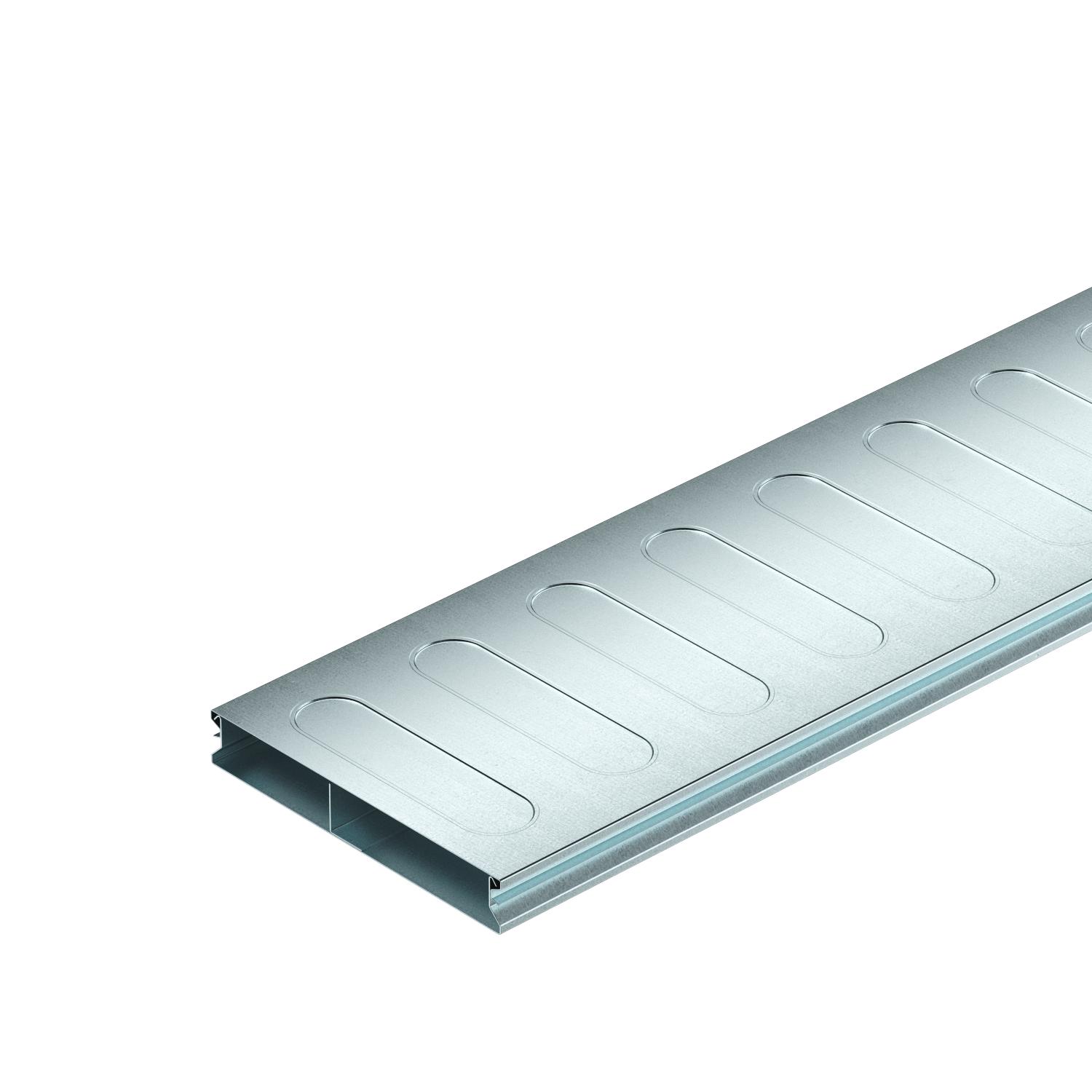

Product descriptionUnderfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable trunking cover. With separating retainers in the trunking base. Maximum load-bearing capacity to 1.5 kN.
-
- Technical data
-
Technical data

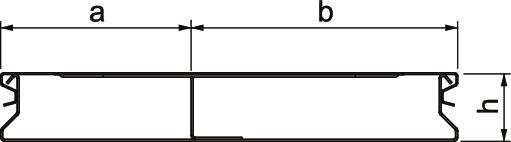

Application area Screed-covered CO₂ Footprint (GWP) Cradle-to-Gate 6,6718 kg CO₂e / 1 Meter Cross-section, draw a 1923 mm² Cross-section, draw b 2706 mm² Decouplable no Dimension 2000x190x28 Dimension a 80 mm Dimension b 110 mm Dimension h 28 mm Duct height, min. 28 mm Floor plate yes Height 28 mm Length 2000 mm Material Steel Number of compartments 2 St. Number of fixed partitions 1 Removable cover yes Surface Strip galvanized Trunking width, min. 190 mm Usable cross-section 4629 mm² Vertical load, large area to 1,500 N Width 190 mm - All types
- Downloads
-
Data sheet S2 19028-2 / 7400256 , 0.16MB , pdfEU declaration of conformity S2 19028-2 / 7400256 , 0.10MB , pdfREACH Declaration of conformity S2 19028-2 / 7400256 , 0.12MB , pdfRoHS Declaration of conformity S2 19028-2 / 7400256 , 0.13MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
