UP Flush-mounted electronics box 66, additional clamping space 66 | 60 | 20/25 mm | 22

UP Flush-mounted electronics box 66, additional clamping space

Item no. 2003726 | EAN 4012196856565

Item no. / Types	2003726 / UE 66

Height	66 mm

Diameter	60 mm

for pipe diameter	20/25 mm

No. of entries	22

Product description

Product description

Flush-mounted electronics box, with additional terminal area, for use in masonry with an installation depth of at least 66 mm.

• With 4 couplable connectors with bayonet lock

• 6 combination pipe entries of Ø 20 and 25 mm

• 8 entries up to Ø 20 mm

• 6 entries up to Ø 14 mm

• 2 entries up to Ø 20 mm in the base

• Partition for different voltages, with break-out openings

• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	no
Colour	Jet black
Combination entries Ø 20 / 25 mm	6
Cover	Without
Cover fastening	Screws ,
Device fixing	Screws ,
Diameter	60 mm
Dimension	Ø60xH66x148
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Impact-resistant	no

Material	Polypropylene
Max. Conductor cross-section	2,5 mm²
No. of entries	22
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	10
Protection rating	IP30
Rated voltage	400 V
Shape	Oval
Type of entry	NYM cables, data cables and corrugated pipes
Type of housing penetration	Break-out opening
With bolts	yes
With nail strap	no

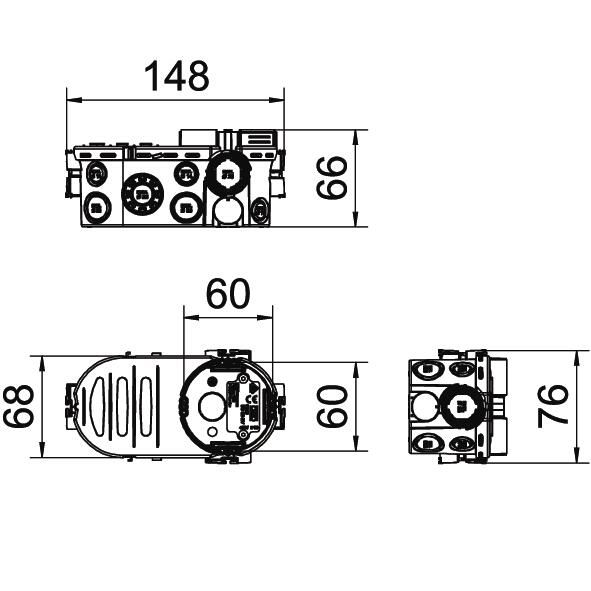

Dimensions

Height	66 mm
Length	148 mm

Width	76 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,2232 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,2232 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
UE 66	66 mm	60 mm	20/25 mm	22	2003726	piece	10 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
UP Plaster compensation ring 12 mm, flush-mounted device box	ZU 12-PR	2003742	piece	25 piece
UP Plaster compensation ring 24 mm, flush-mounted device box	ZU 24-PR	2003744	piece	25 piece
UP Signal cover flush-mounted boxes, single	ZU 60-SD	2003760	piece	50 piece
