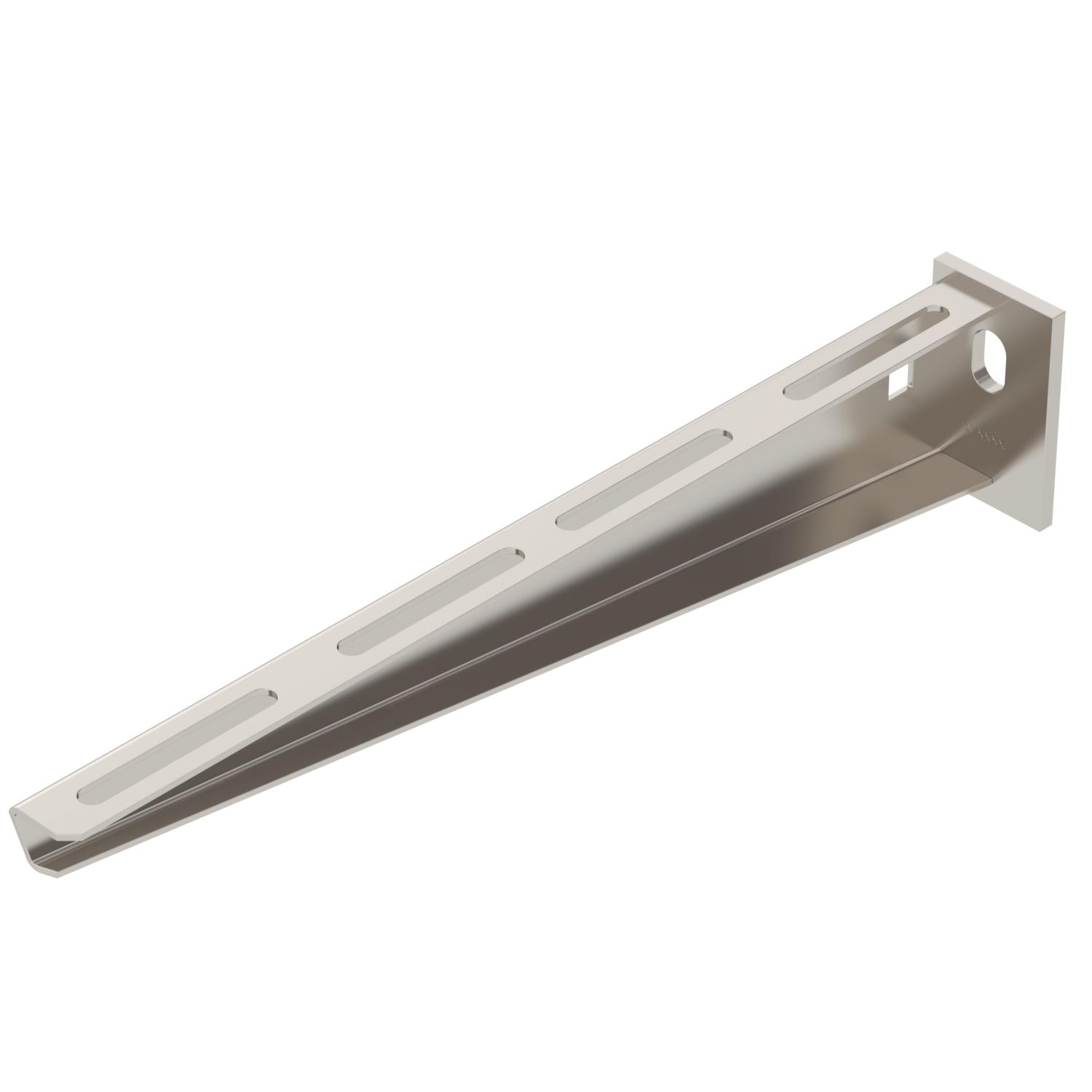

Wall and support bracket AW 15 A4
Item no. 6392024 | EAN 4012196817757
- Product description
-
Product descriptionLight-duty wall and support bracket with welded head plate.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
-
- Technical data
-
Technical data

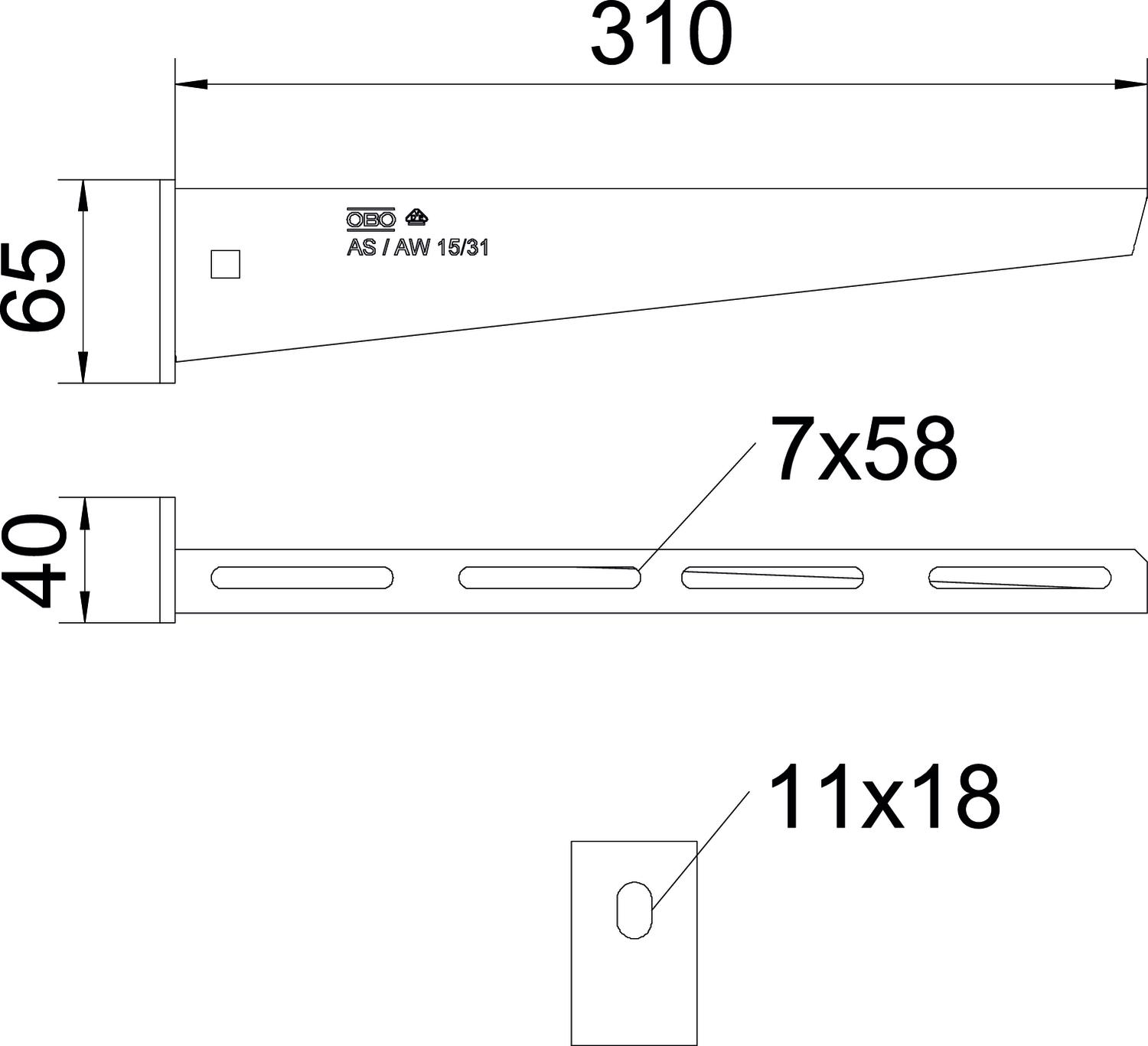

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 2,4841 kg CO2e / 1 Piece Colour stainless steel Dimension B310mm Dimension A 40 mm Dimension B 310 mm Dimension H 65 mm F in kN 1,5 kN Height 65 mm Hole diameter 11 mm Length 40 mm Maintain electrical functions no Material Stainless steel 1.4571 Rustproof steel, pickled yes Surface Bright, treated Version for Wall and support bracket Width 310 mm Technical data
Load diagram, bracket, type AW 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
