Wall and support bracket MWA 12 FS
Item no. 6424740 | EAN 4012196637034
- Product description
-

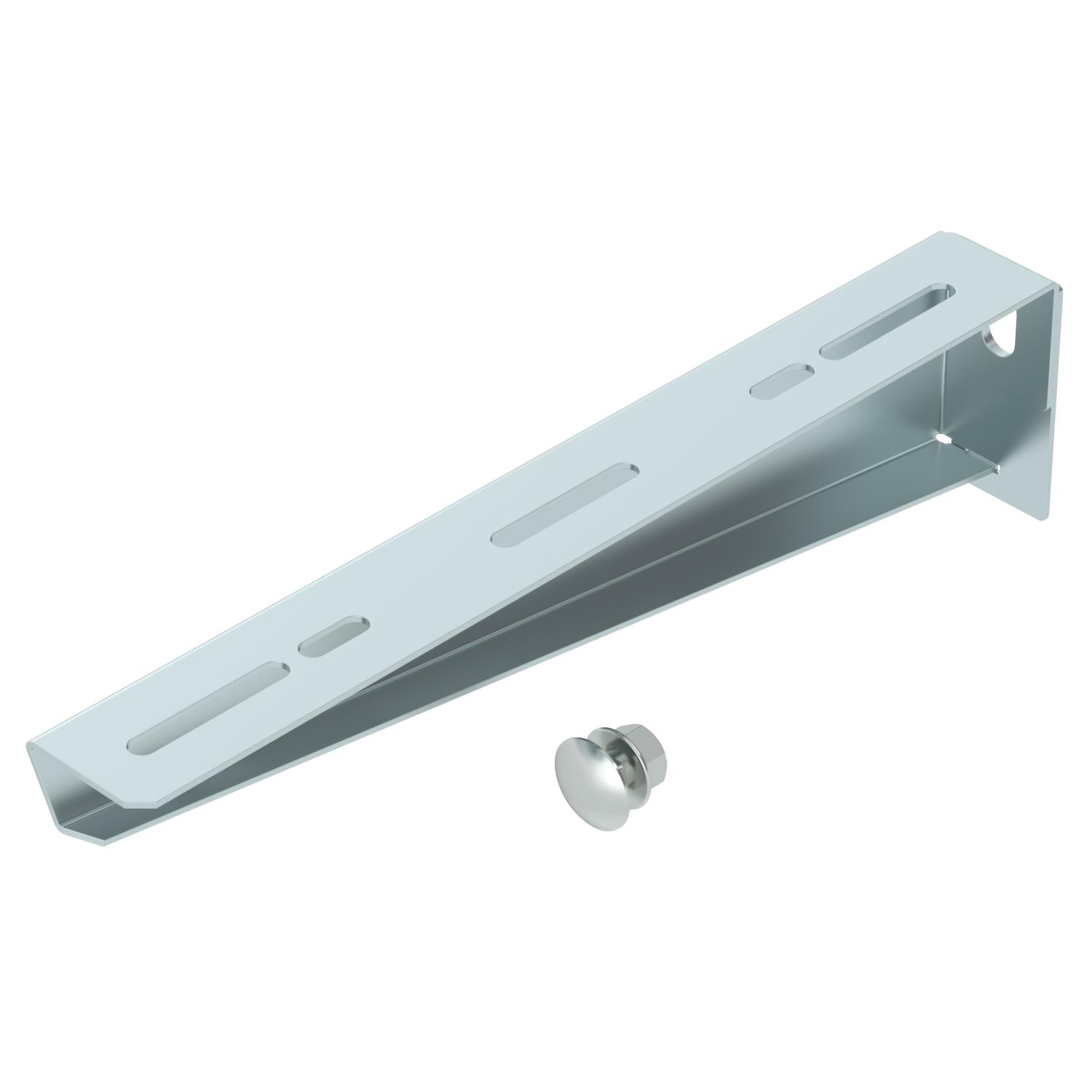

Product descriptionLight-duty wall and support bracket.
Including truss-head bolt M10 x 25 for fastening to
U supports.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B310mm F in kN 1,2 kN Hole diameter 11 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Strip galvanised Version for Wall and support bracket Dimensions

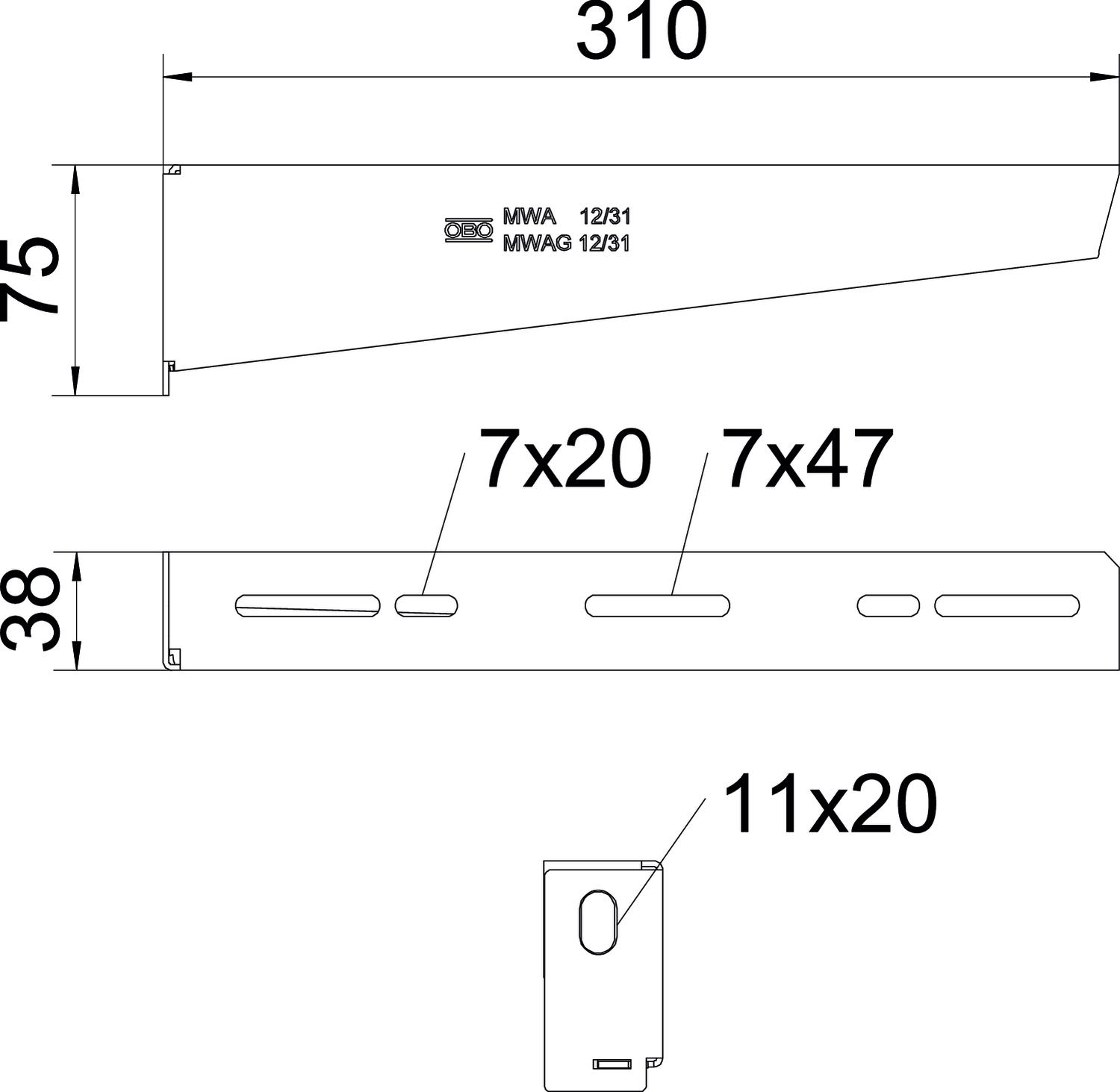

Dimension A 38,5 mm Dimension B 310 mm Dimension H 75 mm Dimension W 310 mm Height 75 mm Height 2,95 in Length 38,5 mm Width 310 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,3665 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,3665 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Technical data
Load diagram, bracket, type MWA 12
