Wide span cable ladder WKLG 110 FS 6000 | 200 | 2 | no

Wide span cable ladder WKLG 110 FS

Item no. 6311008 | EAN 4012196883035

Item no. / Types

Length	6000 mm

Width

Rail thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

Technical data

Technical data

Colour	zinc
Dimension	110x200x6000
Dimension	110 x 200
Fastening of rung	Fully riveted
Maintain electrical functions	no
Material	Steel
Rail thickness	2 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Profile (open)
Surface	Strip galvanised
Usable cross-section	186 cm²
Usable cross-section	18600 mm²
Version of the rungs	Profile perforated
Wide-span version	yes

Dimensions

Dimension B	200 mm
Dimension L	6000 mm
Height	110 mm

Length	6000 mm
Rung slot dimension	17,00
Width	200 mm

Loads

Support spacing 3.0 m	2,5 kN/m
Support spacing 3.5 m	1,98 kN/m
Support spacing 4.0 m	1,6 kN/m
Support spacing 4.5 m	1,31 kN/m

Support spacing 5.0 m	1,1 kN/m
Support spacing 6.0 m	0,8 kN/m
Support spacing 7.0 m	0,4 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	13,5242 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	13,5242 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, wide span cable ladder, type WKLG 110

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
WKLG 1120 FS	6000 mm	200 mm	2 mm	no	6311008	m	6 m
WKLG 1130 FS	6000 mm	300 mm	2 mm	no	6311012	m	6 m
WKLG 1140 FS	6000 mm	400 mm	2 mm	no	6311016	m	6 m
WKLG 1150 FS	6000 mm	500 mm	2 mm	no	6311020	m	6 m
WKLG 1160 FS	6000 mm	600 mm	2 mm	no	6311024	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover incl. turn buckle FS	WDRL 1116 20 FS	6227422	m	3 m
Straight connector FS	WRVL 110 FS	6091164	piece	2 piece
Straight and angle connector FS	WRWVK 110 FS	6091377	piece	2 piece
Adjustable connector FS	WRGV 110 FS	6091318	piece	2 piece
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
90° bend 110 FS	WLB 90 112 FS	6312330	piece	1 piece

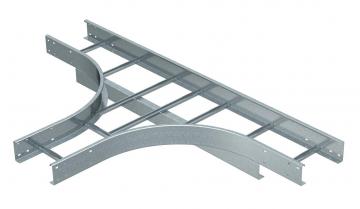

T branch piece 110 FS	WLT 1120 FS	6312632	piece	1 piece
