Wide span cable tray WKSG 110 FS

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

Technical data

Colour	zinc
Connector version	Without connectors

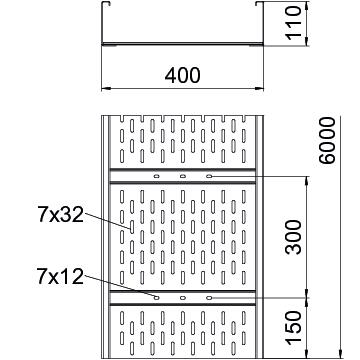

Dimension	400 x 110
Dimension	110x400x6000
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Strip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	408 cm²
Usable cross-section	40800 mm²
Usable length	6000 mm
Wide-span version	yes

CO2 Footprint (GWP) Cradle-to-Gate	22,1046 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	22,1046 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 120 FS	no	6000 mm	200 mm	2 mm	6098111	m	6 m
WKSG 130 FS	no	6000 mm	300 mm	2 mm	6098115	m	6 m
WKSG 140 FS	no	6000 mm	400 mm	2 mm	6098119	m	6 m
WKSG 150 FS	no	6000 mm	500 mm	2 mm	6098123	m	6 m
WKSG 160 FS	no	6000 mm	600 mm	2 mm	6098127	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Cover incl. turn buckle FS	WDRL 1116 40 FS	6227449	m	3 m
Straight connector FS	WRVL 110 FS	6091164	piece	2 piece
Straight and angle connector FS	WRWVK 110 FS	6091377	piece	2 piece
Joint plate FS	SSLB 400 FS	7070221	piece	20 piece
Adjustable connector FS	WRGV 110 FS	6091318	piece	2 piece
90° bend 110 FS	WRB 90 140 FS	6098312	piece	1 piece
Add-on tee 110 FS	WRAA 140 FS	6098413	piece	1 piece
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
