Wide span cable tray WKSG 110 FT

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRVL 110 should be ordered separately and in the appropriate quantity.

Technical data

Colour	zinc
Connector version	Without connectors
Dimension	110 x 200
Dimension	110x200x6000
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	20200 mm²
Usable cross-section	202 cm²
Usable length	6000 mm
Wide-span version	yes

Length	6000 mm
Width	200 mm

CO2 Footprint (GWP) Cradle-to-Gate	15,9014 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	15,9014 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 120 FT	no	6000 mm	200 mm	2 mm	6098141	m	6 m
WKSG 130 FT	no	6000 mm	300 mm	2 mm	6098145	m	6 m
WKSG 140 FT	no	6000 mm	400 mm	2 mm	6098149	m	6 m
WKSG 150 FT	no	6000 mm	500 mm	2 mm	6098153	m	6 m
WKSG 160 FT	no	6000 mm	600 mm	2 mm	6098157	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
DD cover with turn buckle	WDRL 1116 20 DD	6227600	m	3 m
Straight connector FT	WRVL 110 FT	6091180	piece	2 piece
Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
Adjustable connector FT	WRGV 110 FT	6091334	piece	2 piece
90° bend 110 FT	WRB 90 120 FT	6098344	piece	1 piece

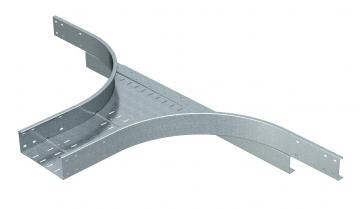

Add-on tee 110 FT	WRAA 120 FT	6098445	piece	1 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
