Wide span cable tray WKSG 160 FS

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.

Technical data

Colour	zinc
Connector version	Without connectors
Dimension	160 x 400
Dimension	160x400x6000
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Strip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	608 cm²
Usable cross-section	60800 mm²
Usable length	6000 mm
Wide-span version	yes

Length	6000 mm
Width	400 mm

CO2 Footprint (GWP) Cradle-to-Gate	25,6643 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	25,6643 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 162 FS	no	6000 mm	200 mm	2 mm	6098501	m	6 m
WKSG 163 FS	no	6000 mm	300 mm	2 mm	6098505	m	6 m
WKSG 164 FS	no	6000 mm	400 mm	2 mm	6098509	m	6 m
WKSG 165 FS	no	6000 mm	500 mm	2 mm	6098513	m	6 m
WKSG 166 FS	no	6000 mm	600 mm	2 mm	6098517	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Cover incl. turn buckle FS	WDRL 1116 40 FS	6227449	m	3 m
Straight connector FS	WRVL 160 FS	6227708	piece	2 piece
Straight and angle connector FS	WRWVK 160 FS	6227832	piece	2 piece
45° angle connector, internal FS	WRWV 160 I FS	6227902	piece	1 piece
45° angle connector, external 160 FS	WRWV 160 A FS	6227856	piece	1 piece

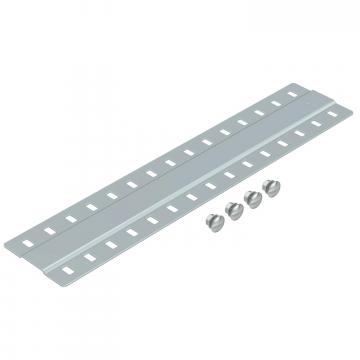

Joint plate FS	SSLB 400 FS	7070221	piece	20 piece
Adjustable connector FS	WRGV 160 FS	6227953	piece	2 piece
90° bend 160 FS	WRB 90 164 FS	6098711	piece	1 piece
Add-on tee 160 FS	WRAA 164 FS	6098808	piece	1 piece
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
