Wide span cable tray WKSG 160 FT

Item no. / Types

Maintain electrical functions	no

Length	6000 mm

Width

Plate thickness	2 mm

Product description

Product description

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.

Technical data

Colour	zinc
Connector version	Without connectors
Dimension	160x200x6000
Dimension	200x6000
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	30200 mm²
Usable cross-section	302 cm²
Usable length	6000 mm
Wide-span version	yes

Length	6000 mm
Width	200 mm

CO2 Footprint (GWP) Cradle-to-Gate	19,278 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	19,278 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Maintain electrical functions	Length	Width	Plate thickness	Item no.	Quantity	SSU
WKSG 162 FT	no	6000 mm	200 mm	2 mm	6098550	m	6 m
WKSG 163 FT	no	6000 mm	300 mm	2 mm	6098554	m	6 m
WKSG 164 FT	no	6000 mm	400 mm	2 mm	6098558	m	6 m
WKSG 165 FT	no	6000 mm	500 mm	2 mm	6098562	m	6 m
WKSG 166 FT	no	6000 mm	600 mm	2 mm	6098566	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
DD cover with turn buckle	WDRL 1116 20 DD	6227600	m	3 m
Straight connector FT	WRVL 160 FT	6227716	piece	2 piece
45° angle connector, internal FT	WRWV 160 I FT	6227910	piece	1 piece
45° angle connector, external 160 FT	WRWV 160 A FT	6227864	piece	1 piece
Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
Adjustable connector FT	WRGV 160 FT	6227961	piece	2 piece
90° bend 160 FT	WRB 90 162 FT	6098730	piece	1 piece

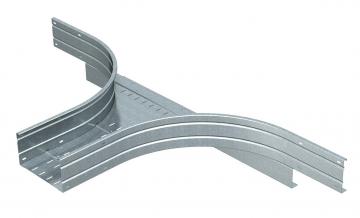

Add-on tee 160 FT	WRAA 162 FT	6098827	piece	1 piece
Barrier strip 110 DD	TSG 110 DD	6062335	m	3 m
