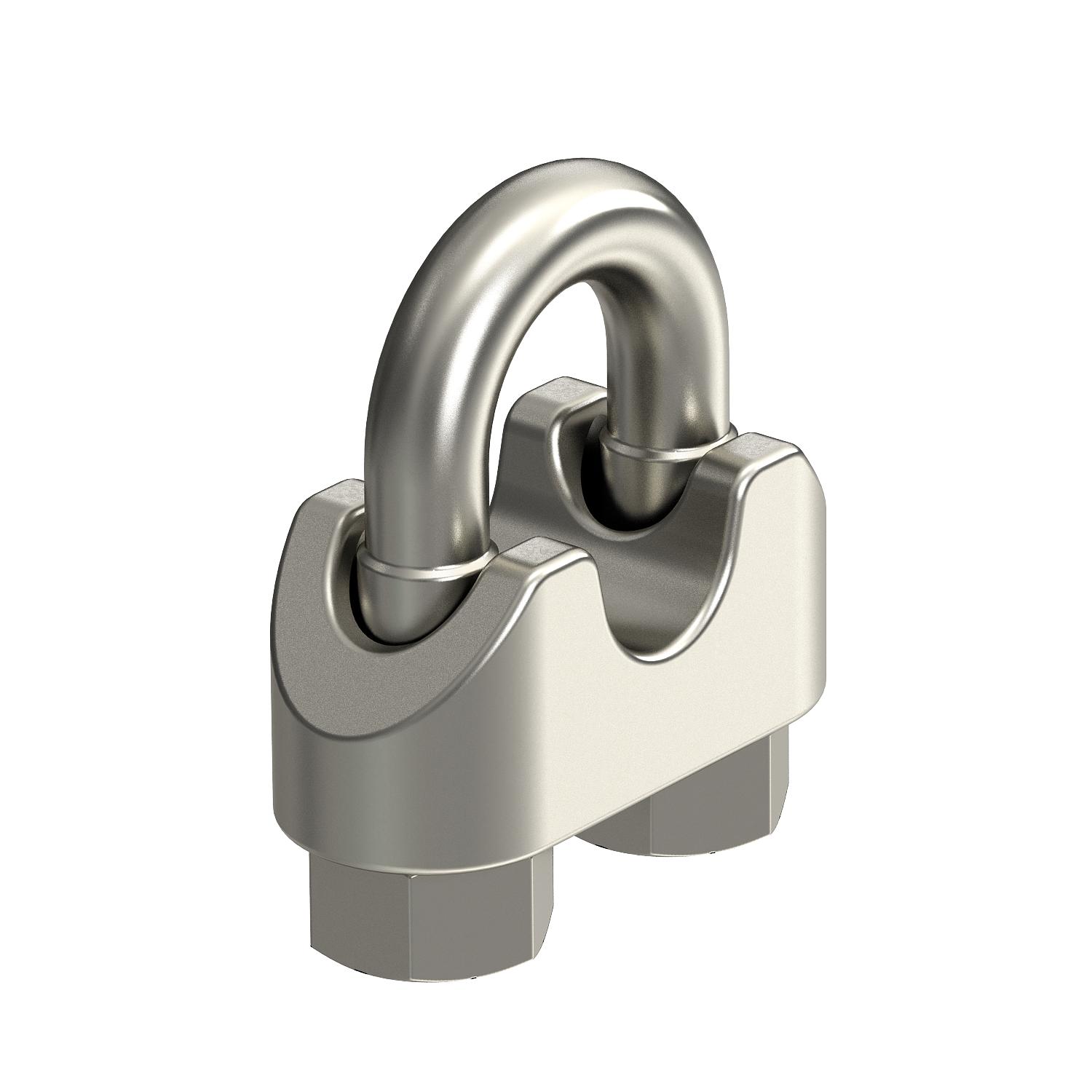

Wire cable clamp A4
Item no. 5302174 | EAN 4012195901358
- Product description
-
Product descriptionWire cable clamp, formerly DIN 741, for fastening steel wire tensioning ropes. The bracket of the wire rope clamp must be positioned over the unloaded end of the wire rope loop; the clamping body rests against the load-bearing, continuous section of the wire rope loop. To ensure a secure connection, at least 3 wire cable clamps are required per wire rope loop, spaced at intervals of 1–2 times the clamp width. The hexagonal nuts must be tightened evenly in alternating order and retightened after the rope has been loaded for the first time.
-
- Technical data
-
Technical data
Dimension 5mm for cable diameter, min. 5 mm Material Stainless steel 1.4401 ROHS-conformant yes Surface Bright, treated Version for Not insulated Dimensions

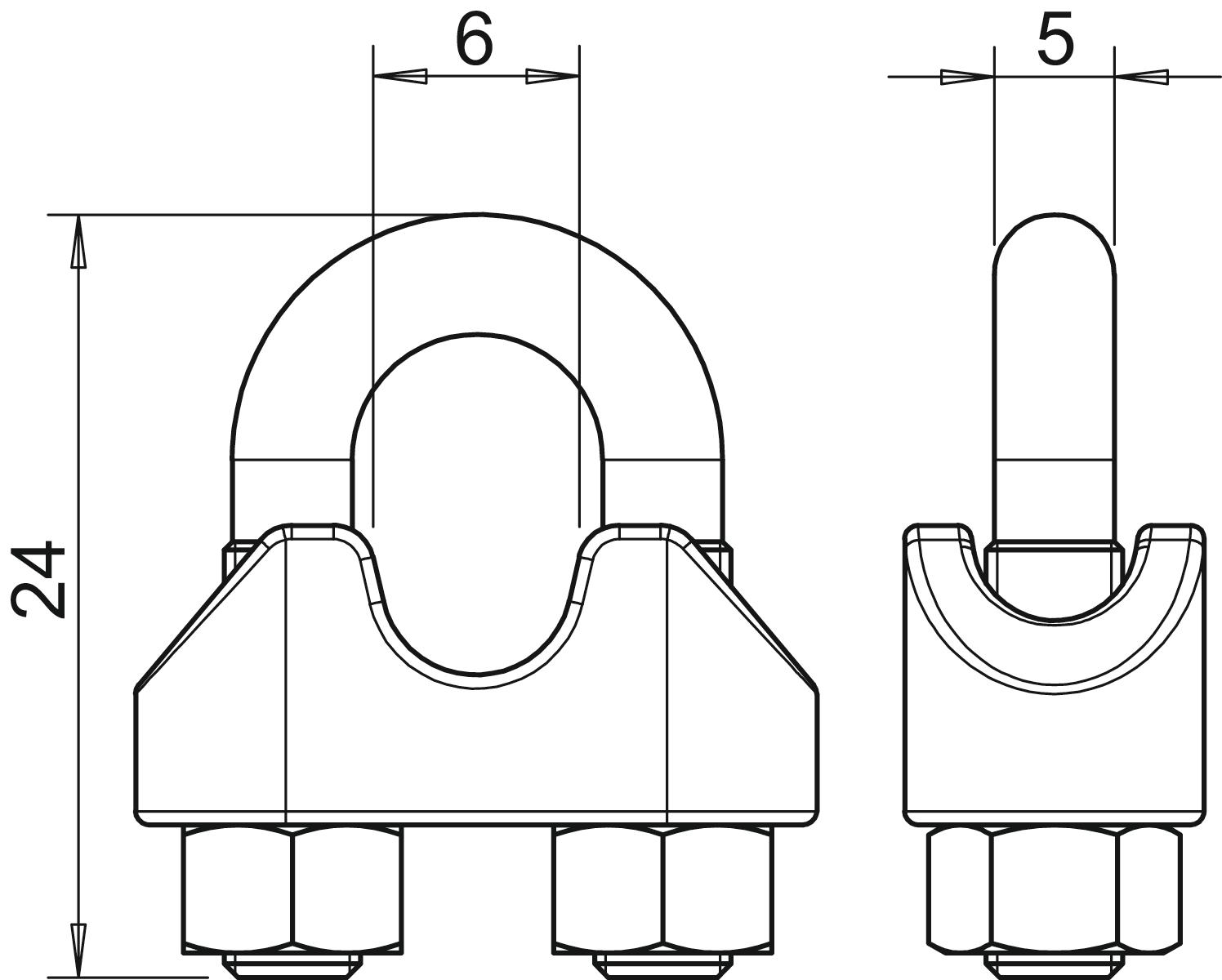

Dimension A 24 mm Dimension B 6 mm Dimension C 5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0733 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0733 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 947 5 A4 / 5302174 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity 947 5 A4 / 5302174 , 0.12MB , pdfRoHS Declaration of conformity 947 5 A4 / 5302174 , 0.13MB , pdf
