Wire retainer for type LK4 and LK4 N
Item no. 6178092 | EAN 4012196008339
- Product description
-
Product descriptionWire retainer for wiring trunking, type LK4 and LK4 N. The wire retainer prevents already inserted cables from falling out. These predetermined breaking points allow the length to be reduced for various trunking widths to 38, 28 and 23 mm.
-
- Technical data
-
Technical data
Adjustable to duct width yes Colour Stone grey; RAL 7030 Halogen-free no Material Polystyrene Dimensions

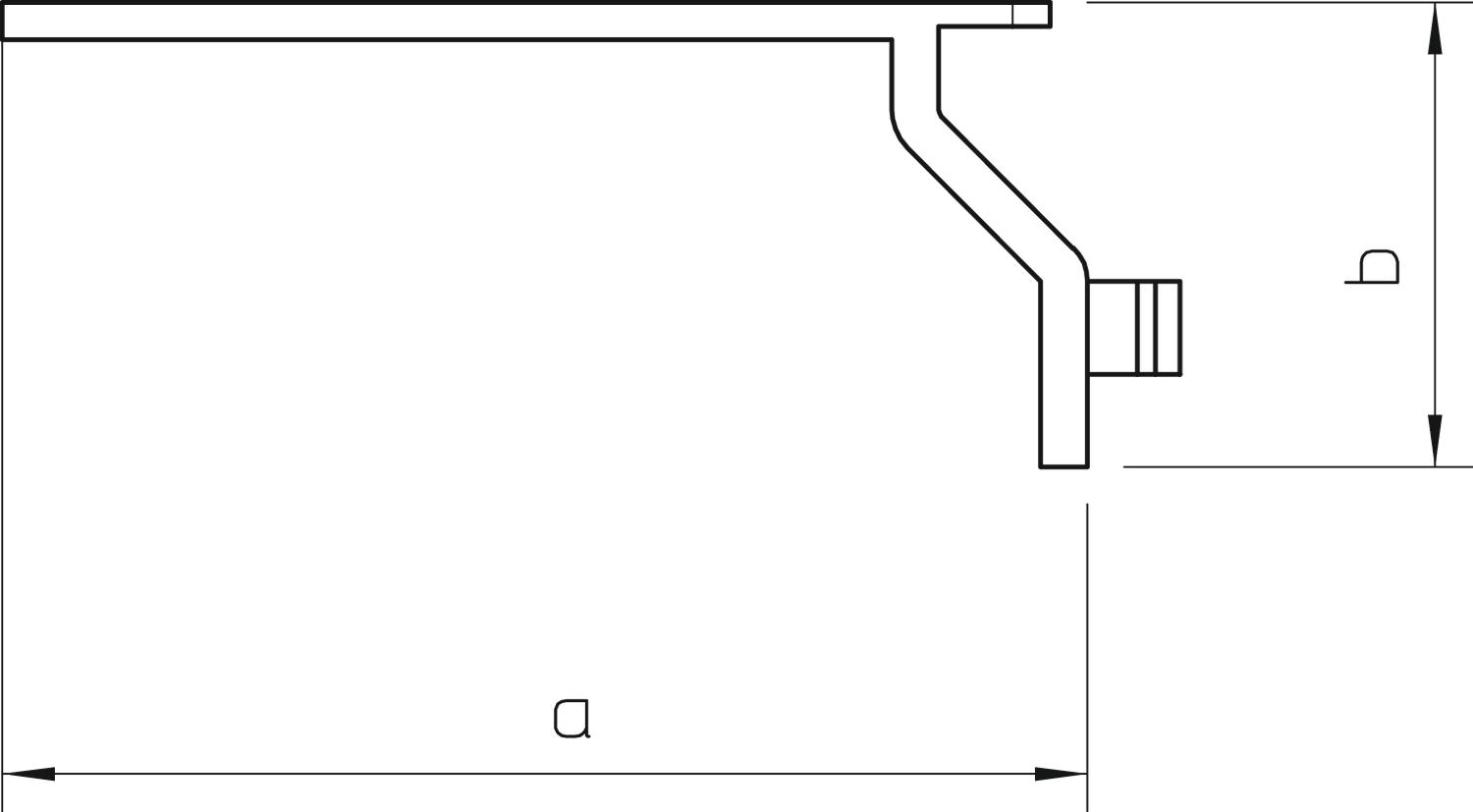

Dimension a 56 mm Dimension b 25 mm Height 25 mm Width 56 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,013 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,013 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LK4 H / 6178092 , 0.14MB , pdfBrochure Wiring trunking , 2.15MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LK4 H / 6178092 , 0.10MB , pdfREACH Declaration of conformity LK4 H / 6178092 , 0.12MB , pdfRoHS Declaration of conformity LK4 H / 6178092 , 0.13MB , pdf
