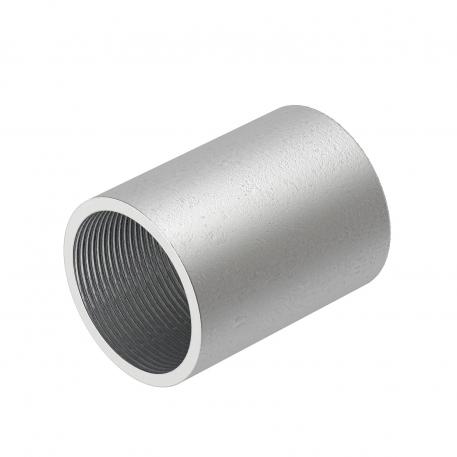

Zinc-nickel coated steel sleeve, with thread

Item no. / Types

for pipe diameter

Thread

Product description

Product description

Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Technical data

Brushed surface	no
Dimension	M20x1,5
for pipe diameter	20 mm
Halogen-free	no
Material	Steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C

Polished surface	no
Size	20
Surface	Zinc / nickel coated
Thread	M20x1,5
Two-part	no
Version for	Thread
With inspection opening and lid	no

CO2 Footprint (GWP) Cradle-to-Gate	0,171 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,171 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	for pipe diameter	Thread	Item no.	Quantity	SSU
SVM16W DN	16 mm	M16x1,5	2046553	piece	25 piece
SVM20W DN	20 mm	M20x1,5	2046554	piece	50 piece
SVM25W DN	25 mm	M25x1,5	2046556	piece	50 piece
SVM32W DN	32 mm	M32x1,5	2046557	piece	50 piece
SVM40W DN	40 mm	M40x1,5	2046558	piece	25 piece
SVM50W DN	50 mm	M50x1,5	2046559	piece	10 piece
SVM63W DN	63 mm	M63x1,5	2046560	piece	5 piece
