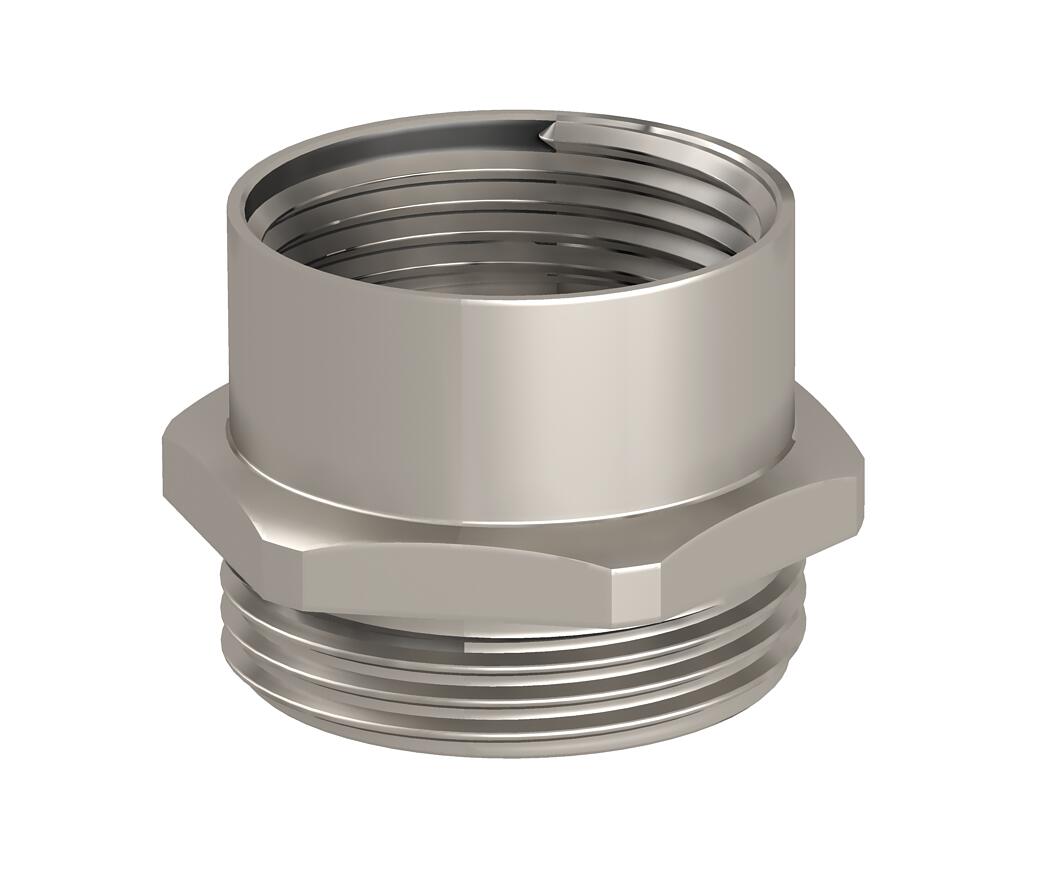

Adapter expansion M - PG
Item no. 2088303 | EAN 4012195372349
- Product description
-
Product descriptionAdapter for converting a metric threaded drill hole to a Pg threaded drill hole.
-
- Technical data
-
Technical data
Dimension M20-PG13,5 explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 20 Thread dimension, PG, internal 13,5 Thread type: External thread Metric Thread type: Internal thread PG WAF 22 Dimensions

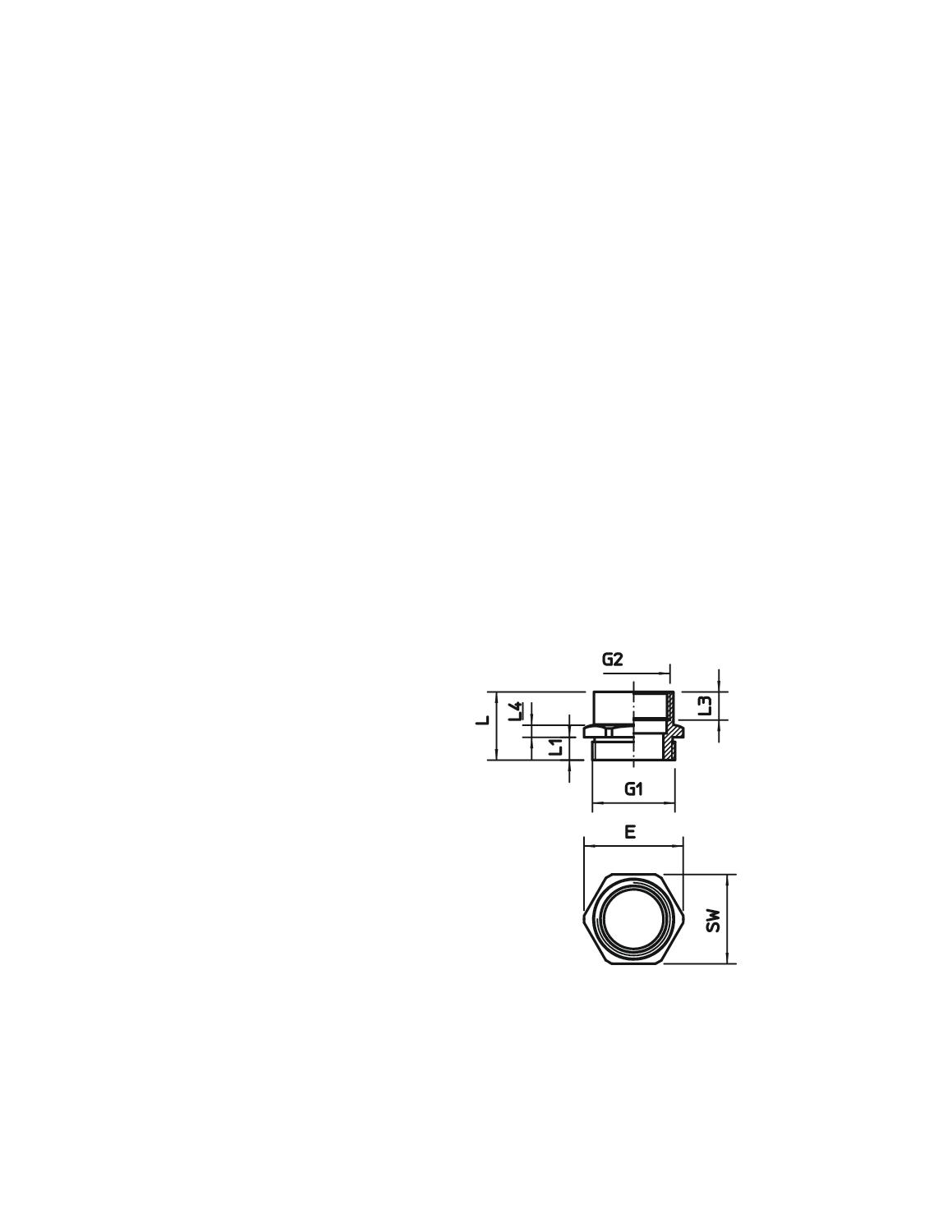

Dimension D 16 mm Dimension E 24,5 mm Dimension L 19 mm Dimension L1 6,5 mm Dimension L3 11,5 mm Dimension L4 3,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0389 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0389 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 165 ADA M20-PG13 / 2088303 , 0.15MB , pdfEU declaration of conformity 165 ADA M20-PG13 / 2088303 , 0.05MB , pdfREACH Declaration of conformity 165 ADA M20-PG13 / 2088303 , 0.10MB , pdfRoHS Declaration of conformity 165 ADA M20-PG13 / 2088303 , 0.13MB , pdf
