Adapter expansion M - PG
Item no. 2088330 | EAN 4012195391074
- Product description
-

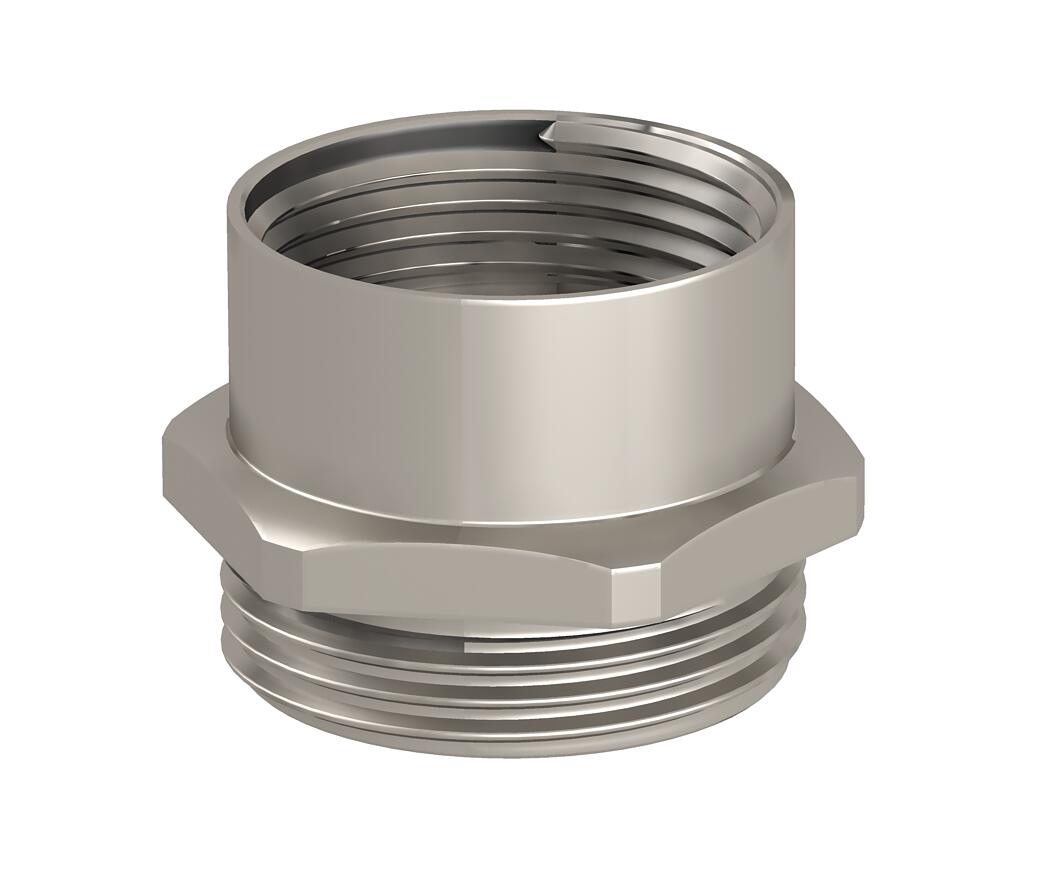

Product descriptionAdapter for converting a metric threaded drill hole to a Pg threaded drill hole.
-
- Technical data
-
Technical data
Dimension M32-PG29 explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 32 Thread dimension, PG, internal 29 Thread type: External thread Metric Thread type: Internal thread PG WAF 40 Dimensions

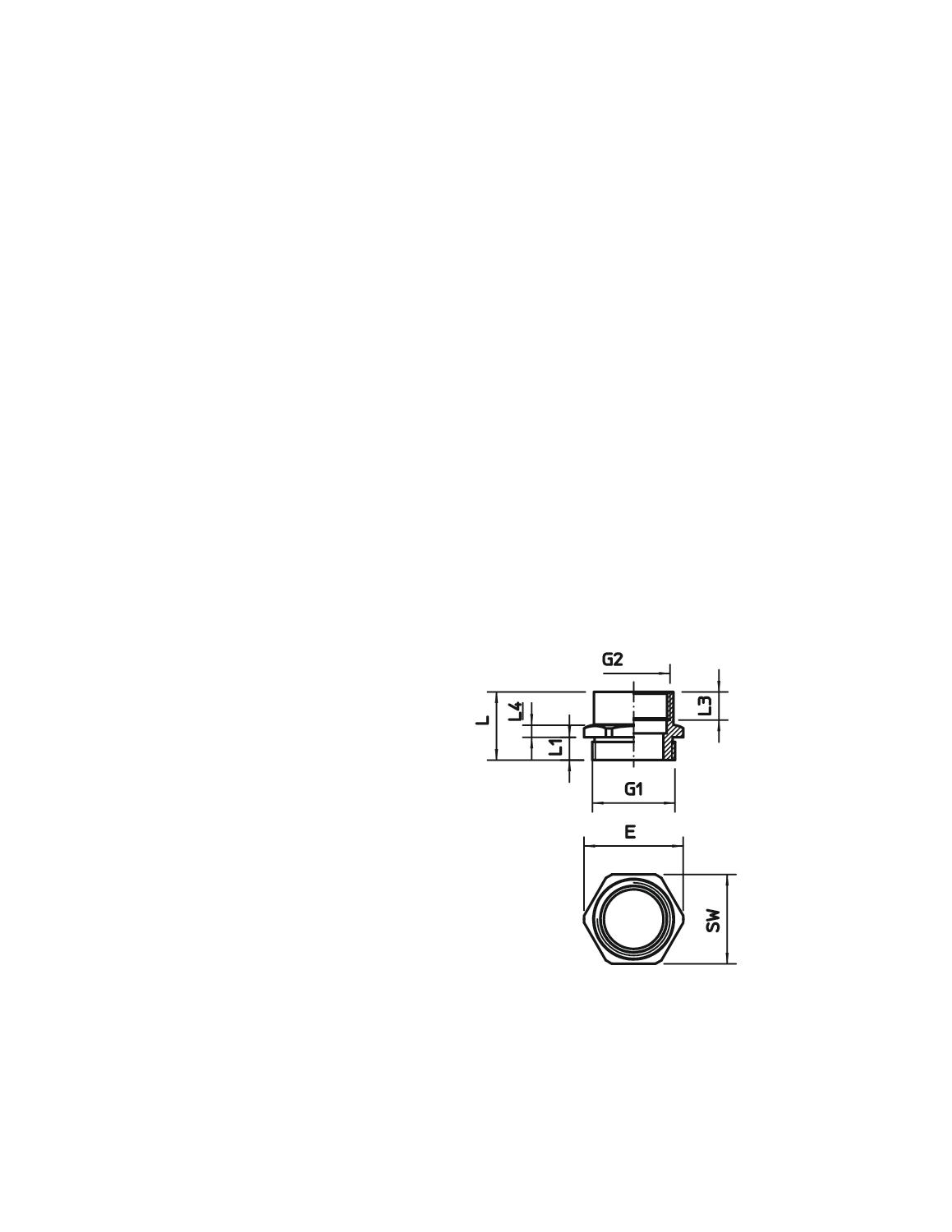

Dimension D 27,5 mm Dimension E 44 mm Dimension L 24,4 mm Dimension L1 8 mm Dimension L3 15 mm Dimension L4 5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,135 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,135 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 165 ADA M32-PG29 / 2088330 , 0.15MB , pdfEU declaration of conformity 165 ADA M32-PG29 / 2088330 , 0.05MB , pdfREACH Declaration of conformity 165 ADA M32-PG29 / 2088330 , 0.12MB , pdfRoHS Declaration of conformity 165 ADA M32-PG29 / 2088330 , 0.12MB , pdf
