Blanking lid, internal corner 800 | 250 | 40

Blanking lid, internal corner

Item no. 7405008 | EAN 4012195102069

Item no. / Types

Length	800 mm

Width

Height

Product description

Product description

Two-part blanking lid for covering the internal corner of on-floor trunking, suitable for all AIK/U trunking bases, including ten fixing screws. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle.

Technical data

Technical data

Function	Internal corner
Material	Steel
Mounting opening	Without
Product series	AIK
ROHS-conformant	yes

Surface	Strip galvanised
Version for	Cover sloping on one side
With connection opening	no
With overhang	yes

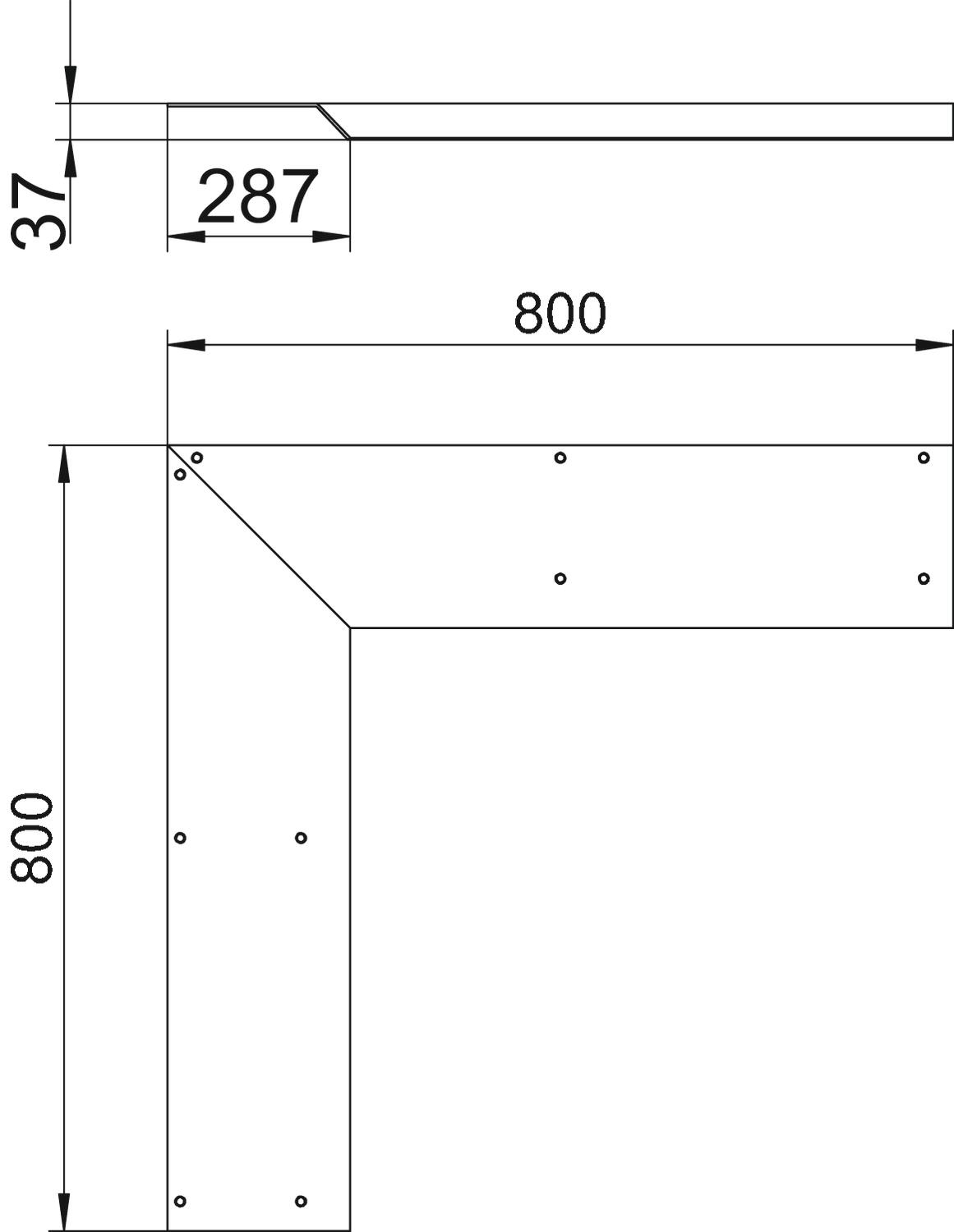

Dimensions

Dimension b	287 mm
Dimension h	37 mm
Height	40 mm

Length	800 mm
Width	250 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	25,8486 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	25,8486 kg CO₂e
Declared Unit	Units

Declared Unit Quantity	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
AIKF IAE 25070	800 mm	250 mm	70 mm	7404992	piece	1 piece
AIKF IEA 15040	800 mm	150 mm	40 mm	7404996	piece	1 piece
AIKF IEA 20070	800 mm	200 mm	70 mm	7405004	piece	1 piece
AIKF IEA 25040	800 mm	250 mm	40 mm	7405008	piece	1 piece
AIKF IEA 35075	800 mm	350 mm	75 mm	7405012	piece	1 piece
