Blanking lid, internal corner 800 | 250 | 70

Blanking lid, internal corner

Item no. 7404992 | EAN 4012195101994

Item no. / Types

Length	800 mm

Width

Height

Product description

Product description

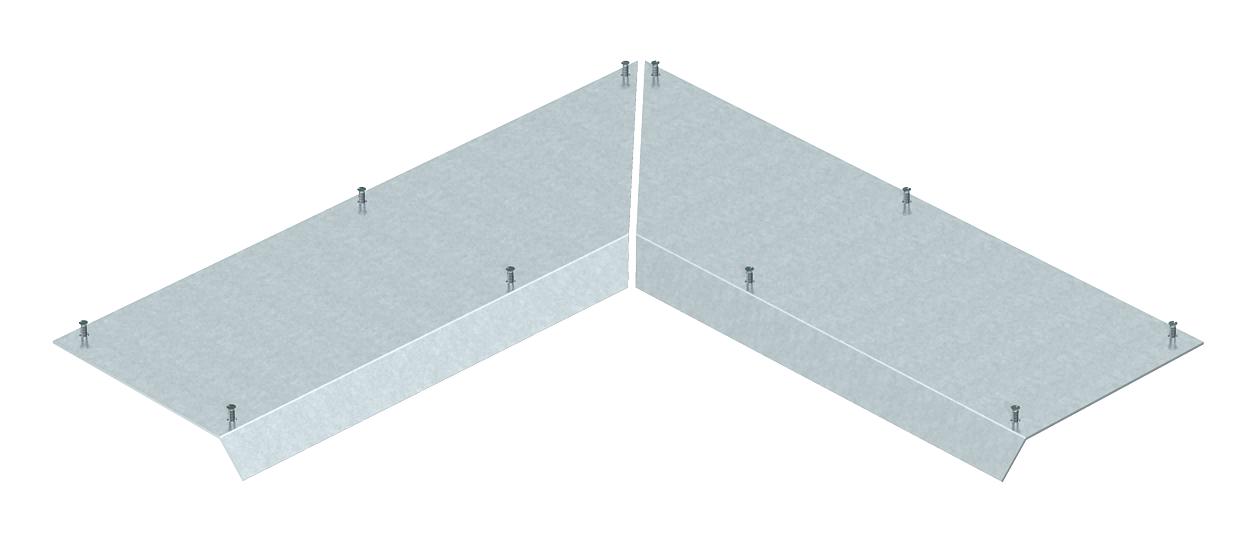

Two-part blanking lid for covering the internal corner of on-floor trunking, suitable for all AIK/U trunking bases, including ten fixing screws. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle.

Technical data

Technical data

Function	Internal corner
Material	Steel
Mounting opening	Without
Surface	Strip galvanised

Version for	Cover sloping on one side
With connection opening	no
With overhang	yes

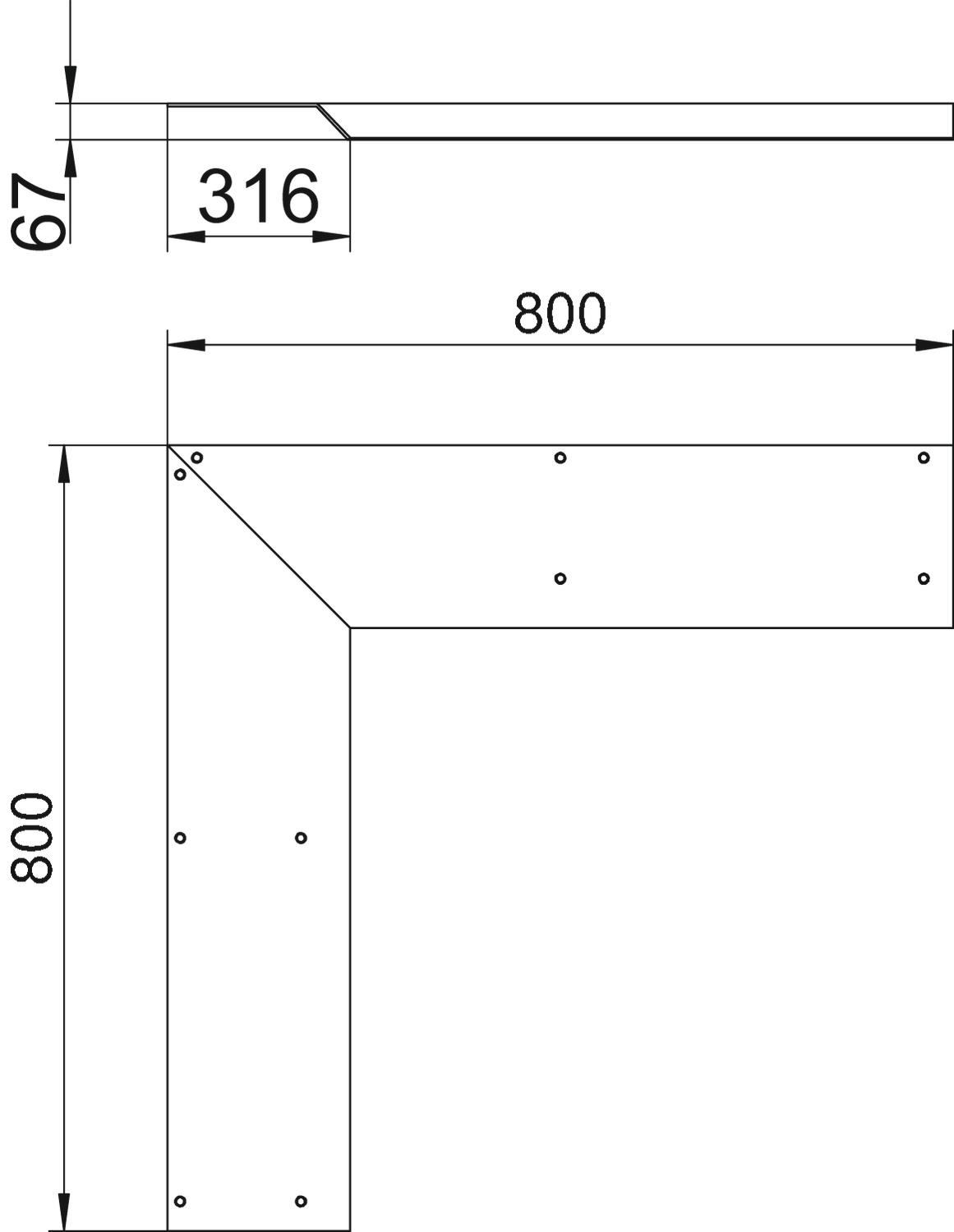

Dimensions

Dimension b	316 mm
Dimension h	67 mm
Height	70 mm

Length	800 mm
Width	250 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	35,1341 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	35,1341 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
AIKF IAE 25070	800 mm	250 mm	70 mm	7404992	piece	1 piece
AIKF IEA 15040	800 mm	150 mm	40 mm	7404996	piece	1 piece
AIKF IEA 20070	800 mm	200 mm	70 mm	7405004	piece	1 piece
AIKF IEA 25040	800 mm	250 mm	40 mm	7405008	piece	1 piece
AIKF IEA 35075	800 mm	350 mm	75 mm	7405012	piece	1 piece
