Cable ladder LCIS 110, 6 m C30 FT 6000 | 600 | 1.5 | no

Cable ladder LCIS 110, 6 m C30 FT

Item no. 6209828 | EAN 4012196431670

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
Dimension	110x600x6000
Fastening of rung	Welded
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Surface	Hot-dip galvanised
Usable cross-section	54000 mm²
Usable cross-section	540 cm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	600 mm
Height	110 mm
Length	6000 mm

Rung slot dimension	16,50
Width	600 mm

Loads

Support spacing 2.0 m	3 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	1,05 kN/m

Support spacing 4.0 m	0,8 kN/m
Support spacing 4.5 m	0,7 kN/m
Support spacing 5.0 m	0,65 kN/m
Support spacing 6.0 m	0,35 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	11,0363 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	11,0363 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, cable ladder, type LCIS 110

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 1120 6 FT	6000 mm	200 mm	1.5 mm	no	6209820	m	6 m
LCIS 1130 6 FT	6000 mm	300 mm	1.5 mm	no	6209822	m	6 m
LCIS 1140 6 FT	6000 mm	400 mm	1.5 mm	no	6209824	m	6 m
LCIS 1145 6 FT	6000 mm	450 mm	1.5 mm	no	6209825	m	6 m
LCIS 1150 6 FT	6000 mm	500 mm	1.5 mm	no	6209826	m	6 m
LCIS 1160 6 FT	6000 mm	600 mm	1.5 mm	no	6209828	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
Straight connector FT	LVG 110 FT	6216548	piece	10 piece
Adjustable connector FT	LGVG 110 FT	6216653	piece	10 piece
Expansion connector 110 FT	LDVG 110 FT	6216670	piece	2 piece
Multifunctional connector FT	LMFV 1160 FT	6225780	piece	1 piece
90° bend 110 FT	LB 90 1160 R3 FT	6225152	piece	1 piece

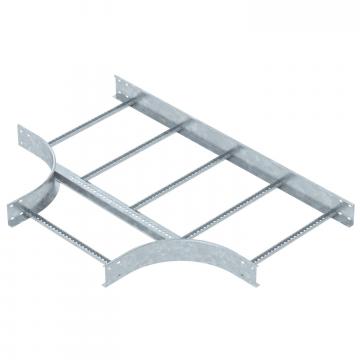

T piece 110 FT	LT 1160 R3 FT	6225320	piece	1 piece

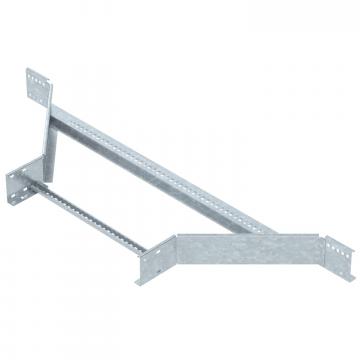

Add-on tee 110 FT	LAA 1160 R3 FT	6225940	piece	1 piece
Adjustable bend element 110 FT	LGBE 1160 FT	6225520	piece	1 piece
End cap	SKH 110 OR	6222553	Pair	20 Pair
Support angle	LAW FT	6221513	piece	10 piece
Connector FT	LAS 110 FT	6221424	piece	10 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Corner plate DD	LEB 25 DD	6221216	piece	1 piece
Corner plate DD	LEB 50 DD	6221259	piece	1 piece
Support plate	LALB 60 FT	6221890	piece	1 piece
Drop-out plate FT	LAB 60 FT	6220479	piece	1 piece
Insert plate DD	ELB-L 60 DD	6103368	m	3 m
