Cable ladder LCIS 110, 6 m C30 FT 6000 | 450 | 1.5 | no

Cable ladder LCIS 110, 6 m C30 FT

Item no. 6209825 | EAN 4012196540525

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	10,0483 kg CO2e / 1 Meter
Colour	zinc
Dimension	110x450x6000
Dimension B	450 mm
Fastening of rung	Welded
Height	110 mm
Length	6000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile

Support spacing 2.0 m	3 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	1,05 kN/m
Support spacing 4.0 m	0,8 kN/m
Support spacing 4.5 m	0,7 kN/m
Support spacing 5.0 m	0,65 kN/m
Support spacing 6.0 m	0,35 kN/m
Surface	Hot-dip galvanised
Usable cross-section	405 cm²
Usable cross-section	40500 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	450 mm

Technical data

Load diagram, cable ladder, type LCIS 110

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 1120 6 FT	6000 mm	200 mm	1.5 mm	no	6209820	m	6 m
LCIS 1130 6 FT	6000 mm	300 mm	1.5 mm	no	6209822	m	6 m
LCIS 1140 6 FT	6000 mm	400 mm	1.5 mm	no	6209824	m	6 m
LCIS 1145 6 FT	6000 mm	450 mm	1.5 mm	no	6209825	m	6 m
LCIS 1150 6 FT	6000 mm	500 mm	1.5 mm	no	6209826	m	6 m
LCIS 1160 6 FT	6000 mm	600 mm	1.5 mm	no	6209828	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece
Adjustable connector FT	LGVG 110 FT	6216653	piece	10 piece
Expansion connector 110 FT	LDVG 110 FT	6216670	piece	2 piece
Multifunctional connector FT	LMFV 1145 FT	6225776	piece	1 piece
90° bend FT	LB 90 1145 R3 FT	6225148	piece	1 piece

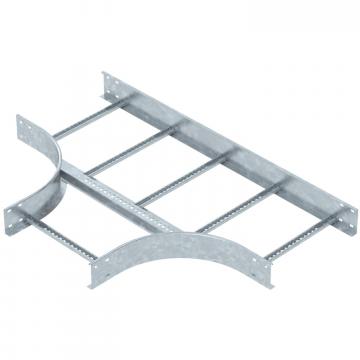

T piece 110 FT	LT 1145 R3 FT	6225316	piece	1 piece

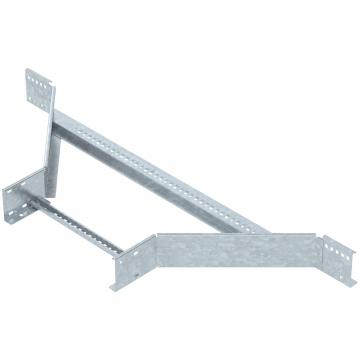

Mounting/branch piece FT	LAA 1145 R3 FT	6225936	piece	1 piece
Adjustable bend element 110 FT	LGBE 1145 FT	6225516	piece	1 piece
End cap	SKH 110 OR	6222553	Pair	20 Pair
Support angle	LAW FT	6221513	piece	10 piece
Connector FT	LAS 110 FT	6221424	piece	10 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Corner plate DD	LEB 25 DD	6221216	piece	1 piece
Corner plate DD	LEB 50 DD	6221259	piece	1 piece
