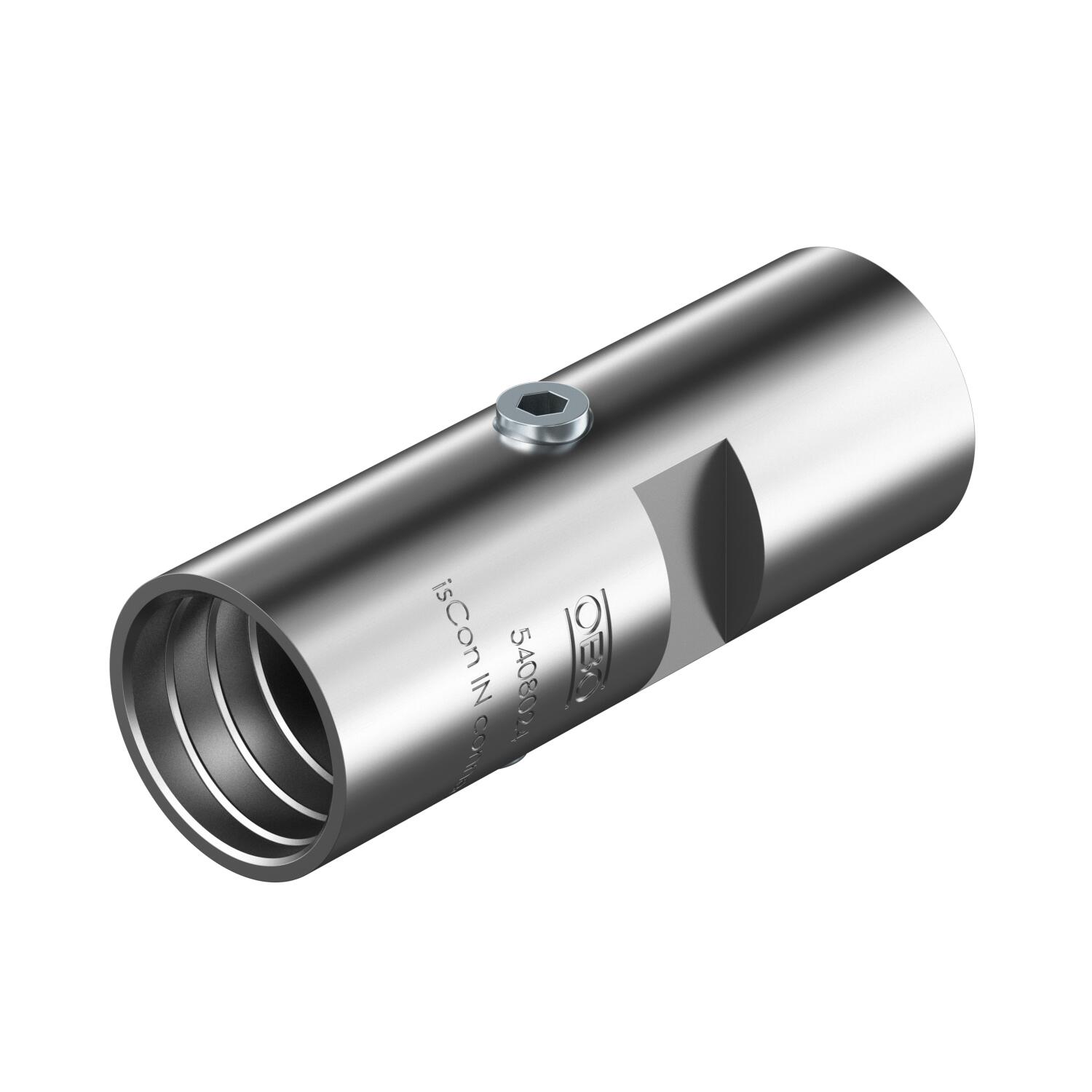

Connection element for installation in the insulated interception rod isFang IN
Item no. 5408024 | EAN 4012195864172
- Product description
-
Product description• Screw-on termination of the connection for the isCon® cable
• Connection and installation of the cable in the insulated interception rod
• Tested up to 150 kA (lightning protection Class II)
-
- Technical data
-
Technical data
Clamping range, max. 23 mm Dimension Ø23mm Fit 23 mm Lightning current carrying capacity H1/150 kA Material Stainless steel 1.4301 Suitable for connection Miscellaneous Dimensions
Dimension d min. 28 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,2871 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,2871 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 piece - Downloads
-
Data sheet isCon IN connect / 5408024 , 0.16MB , pdfSafety data sheet isCon IN connect / 5408024 , 2.00MB , pdfEU declaration of conformity isCon IN connect / 5408024 , 0.06MB , pdfREACH Declaration of conformity isCon IN connect / 5408024 , 0.12MB , pdfRoHS Declaration of conformity isCon IN connect / 5408024 , 0.13MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.15MB , pdf
