Device connection lid, branch trunking 800 | 150 | 40
morepic-1 morepic-2

Device connection lid, branch trunking

Item no. 7404852 | EAN 4012195101277

800 mm
40 mm
Product description
Product description

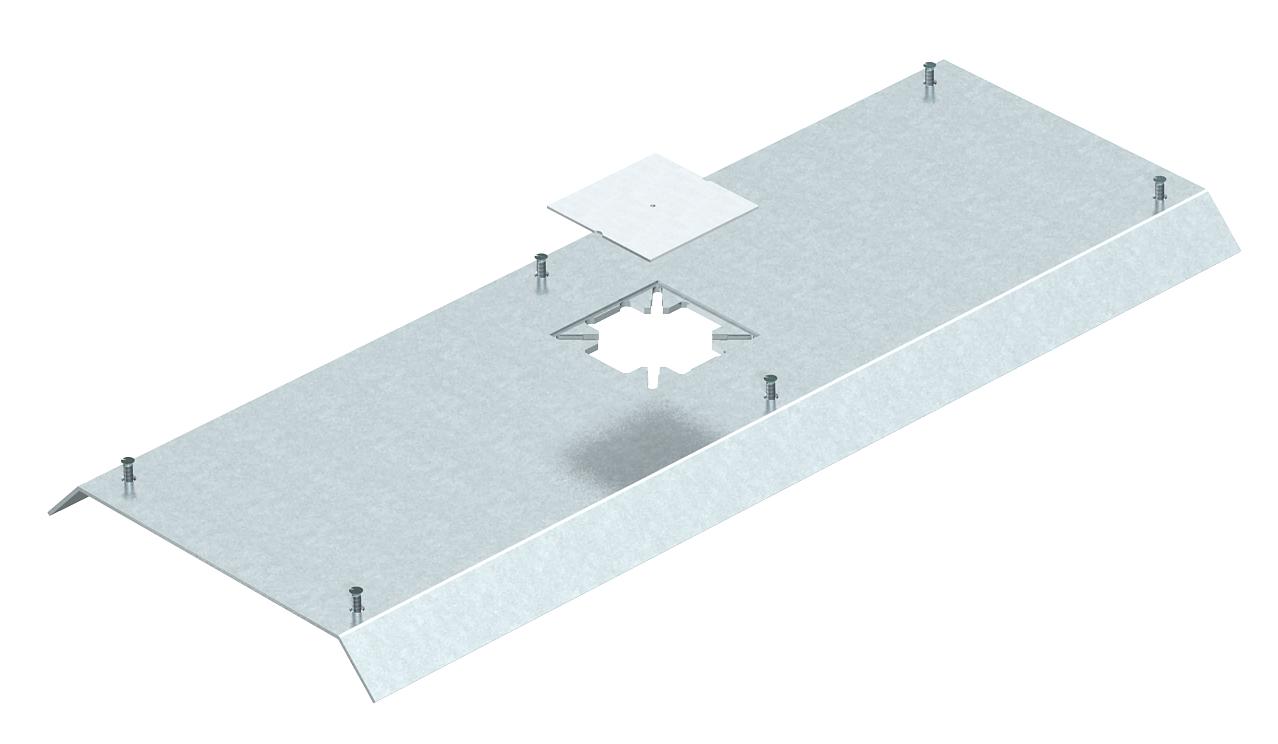

Mounting lid for AIKA/U junction trunking base for Telitank set-up. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle on both sides.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 12,4069 kg CO2e / 1 Piece

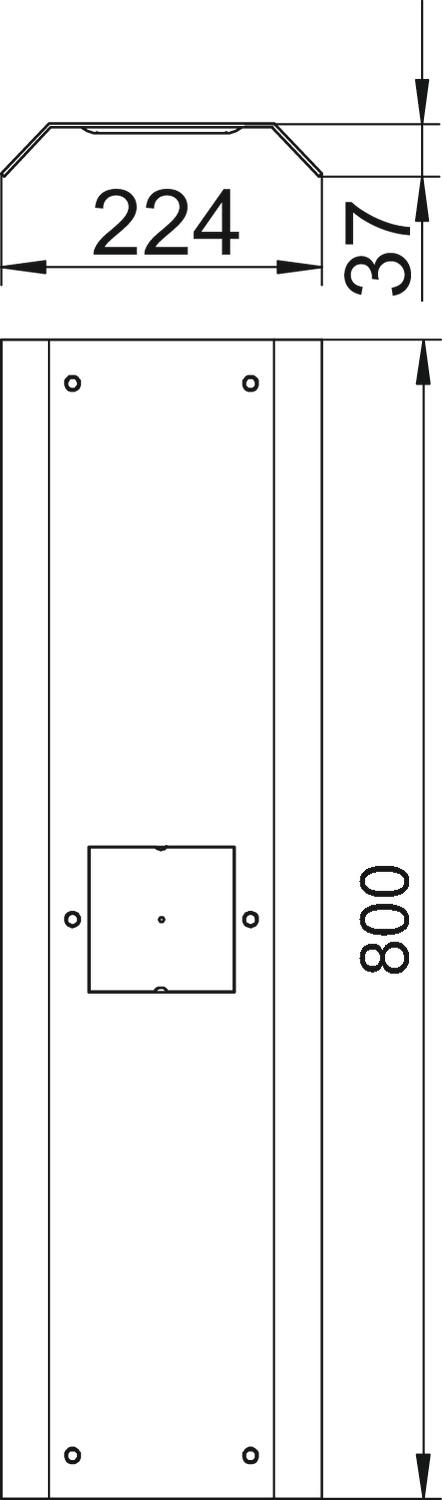

Dimension b 224 mm
Dimension h 37 mm
Function Miscellaneous
Height 40 mm
Length 800 mm
Material Steel
Mounting opening Square
Surface Strip galvanized
Version for Cover sloping on one side
Width 150 mm
With connection opening no
With overhang yes
All types

All types

Types Length Width Height Item no. Quantity SSU
AIKA DAT 15040 800 mm 150 mm 40 mm 7404852
1 piece
AIKA DAT 25040 800 mm 250 mm 40 mm 7404860
1 piece
Downloads

Download

REACH Declaration of conformity AIKA DAT 15040 / 7404852 , 0.12MB , pdf
Download
RoHS Declaration of conformity AIKA DAT 15040 / 7404852 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
