Device connection lid, branch trunking 800 | 250 | 40
morepic-1 morepic-2

Device connection lid, branch trunking

Item no. 7404860 | EAN 4012195101321

800 mm
40 mm
Product description
Product description
Mounting lid for AIKA/U junction trunking base for Telitank set-up. The trunking lid is screwed tight to the Al side profiles of the trunking base. The lid slope extends beyond the trunking base at a 45° angle on both sides.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

Function Miscellaneous
Material Steel
Mounting opening Square
Surface Strip galvanised
Version for Cover sloping on one side
With connection opening no
With overhang yes

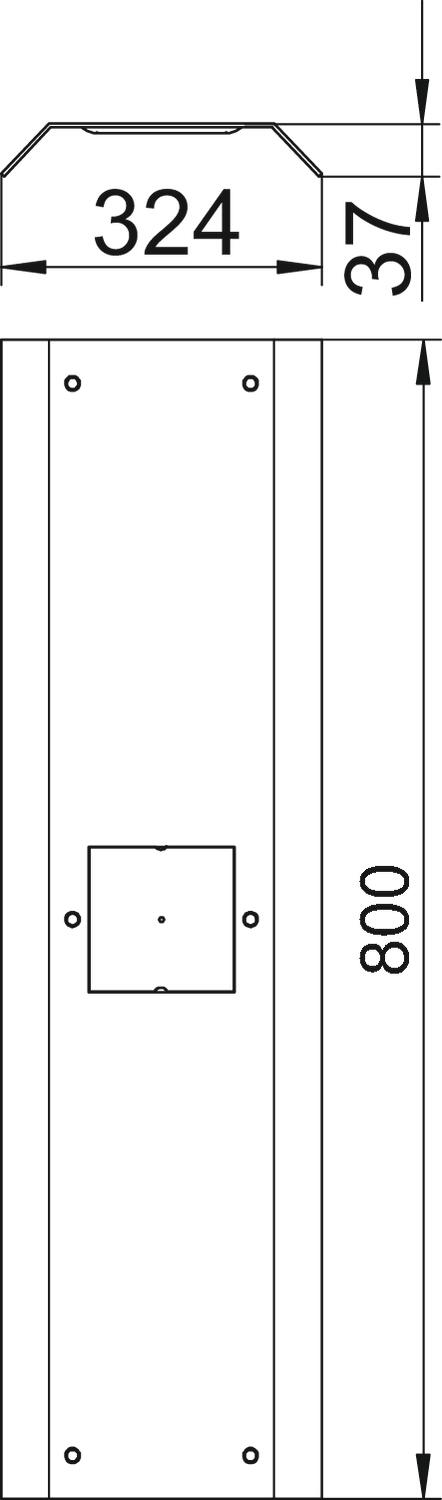

Dimensions

Dimension b 324 mm
Dimension h 37 mm
Height 40 mm
Length 800 mm
Width 250 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 18,0989 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 18,0989 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Width Height Item no. Quantity SSU
AIKA DAT 15040 800 mm 150 mm 40 mm 7404852
1 piece
AIKA DAT 25040 800 mm 250 mm 40 mm 7404860
1 piece
Downloads

Download

EU declaration of conformity AIKA DAT 25040 / 7404860 , 0.11MB , pdf
Download
REACH Declaration of conformity AIKA DAT 25040 / 7404860 , 0.12MB , pdf
Download
RoHS Declaration of conformity AIKA DAT 25040 / 7404860 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
