- Product description
-

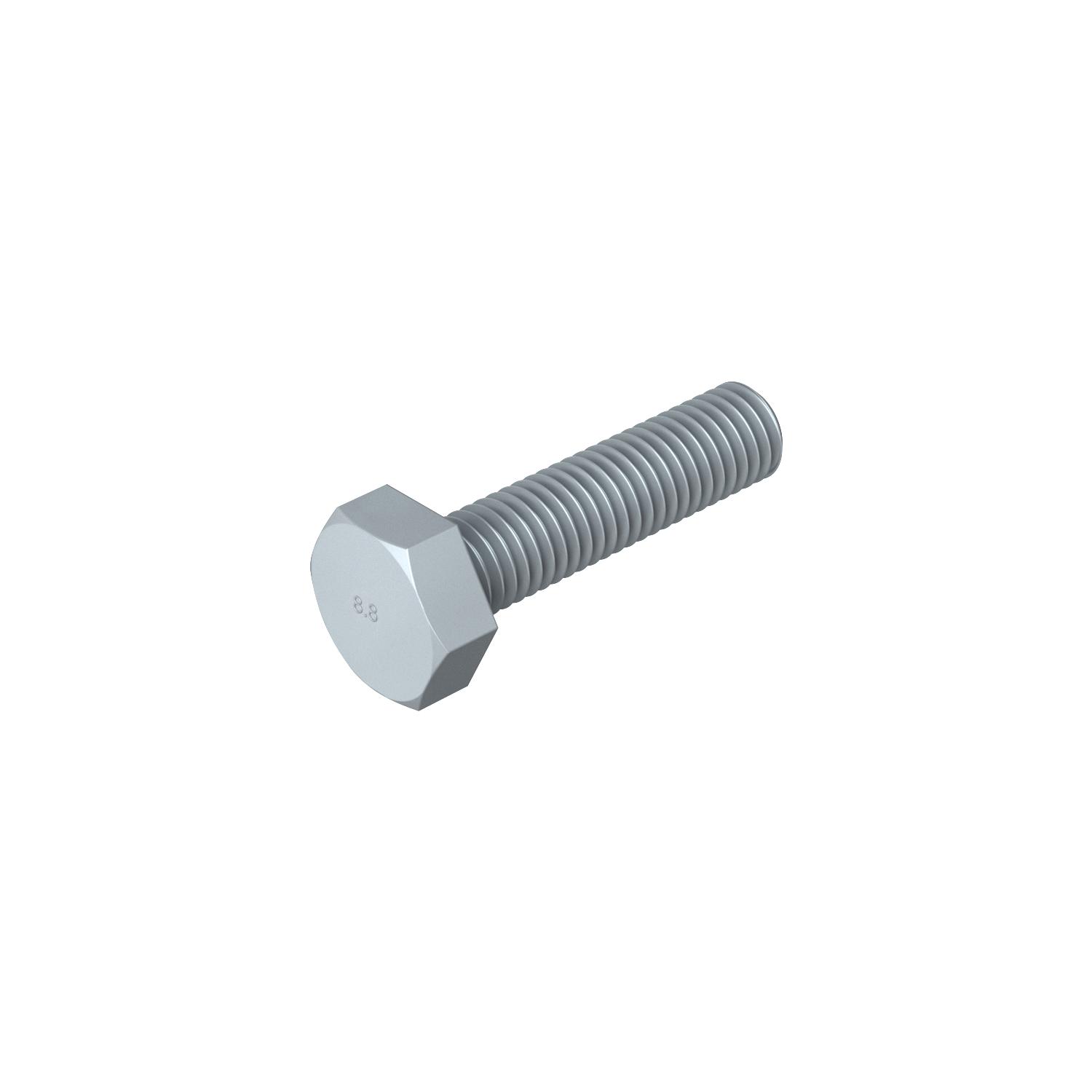

Product descriptionHexagonal bolt according to DIN 933 with metric thread. Resistance grade at least 8.8.
-
- Technical data
-
Technical data
Dimension M10x40 Full thread yes Left thread no Material Steel Resistance grade 8.8 Screw system Hexagonal Self-locking no Surface Zinc slat Thread M10 Thread length 40 mm Thread metric 10 Thread type Metric WAF 17 With flange no With nut no With washer no Dimensions

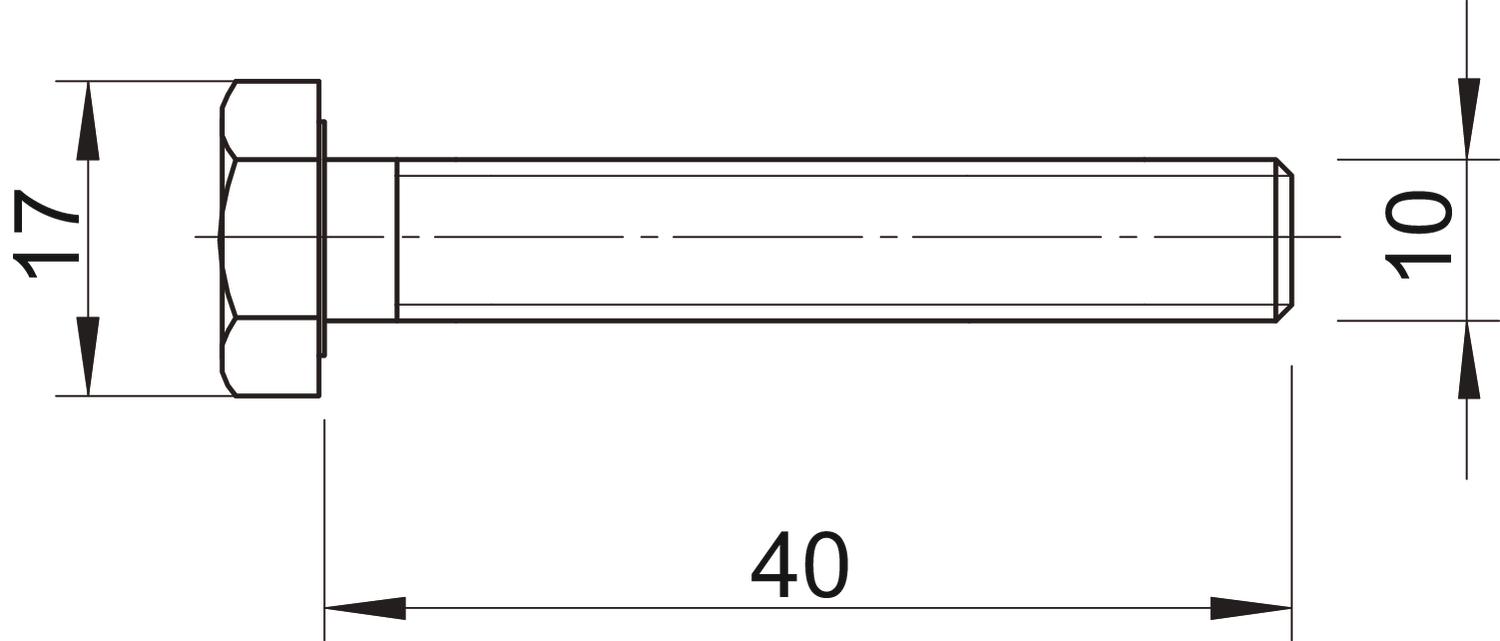

Dimension d 10 mm Dimension L 40 mm Length 40 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0768 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0768 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet SKS M10x40 ZL / 3156762 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity SKS M10x40 ZL / 3156762 , 0.12MB , pdfRoHS Declaration of conformity SKS M10x40 ZL / 3156762 , 0.13MB , pdf
