- Product description
-

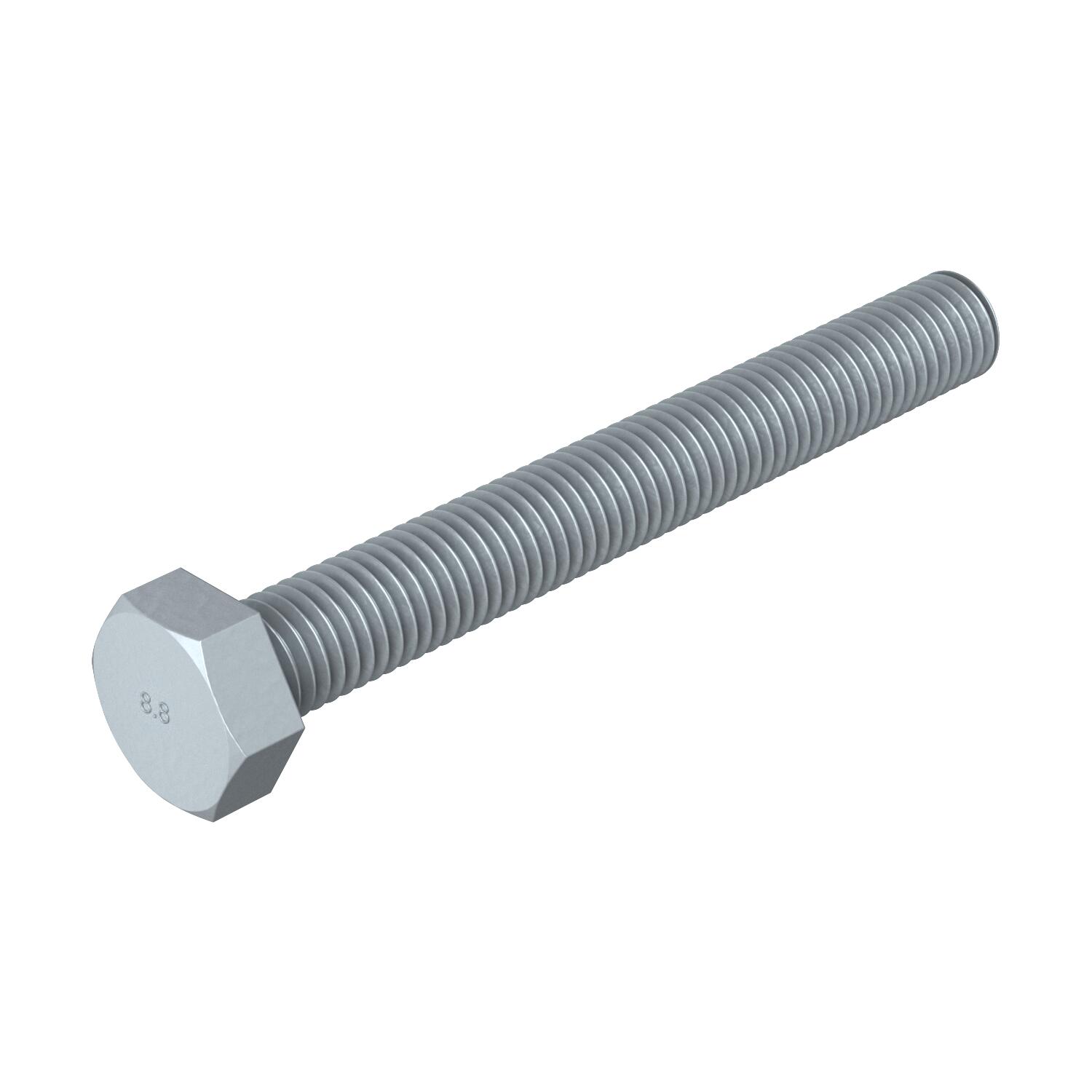

Product descriptionHexagonal bolt according to DIN 933 with metric thread. Resistance grade at least 8.8.
-
- Technical data
-
Technical data
Dimension M12x100 Full thread yes Left thread no Material Steel Resistance grade 8.8 Screw system Hexagonal Self-locking no Surface Zinc slat Thread M12 Thread length 100 mm Thread metric 12 Thread type Metric WAF 19 With flange no With nut no With washer no Dimensions

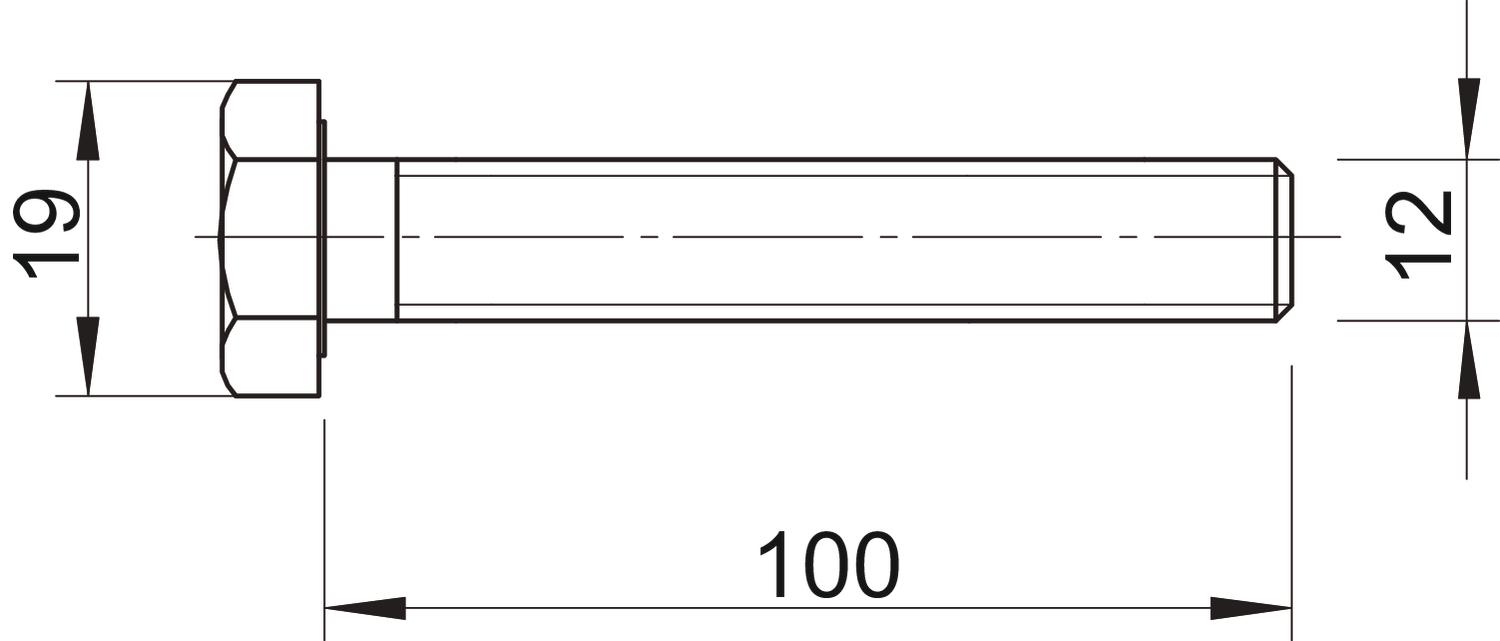

Dimension d 12 mm Dimension L 100 mm Length 100 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,215 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,215 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet SKS M12x100 ZL / 3156799 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity SKS M12x100 ZL / 3156799 , 0.12MB , pdfRoHS Declaration of conformity SKS M12x100 ZL / 3156799 , 0.13MB , pdf
