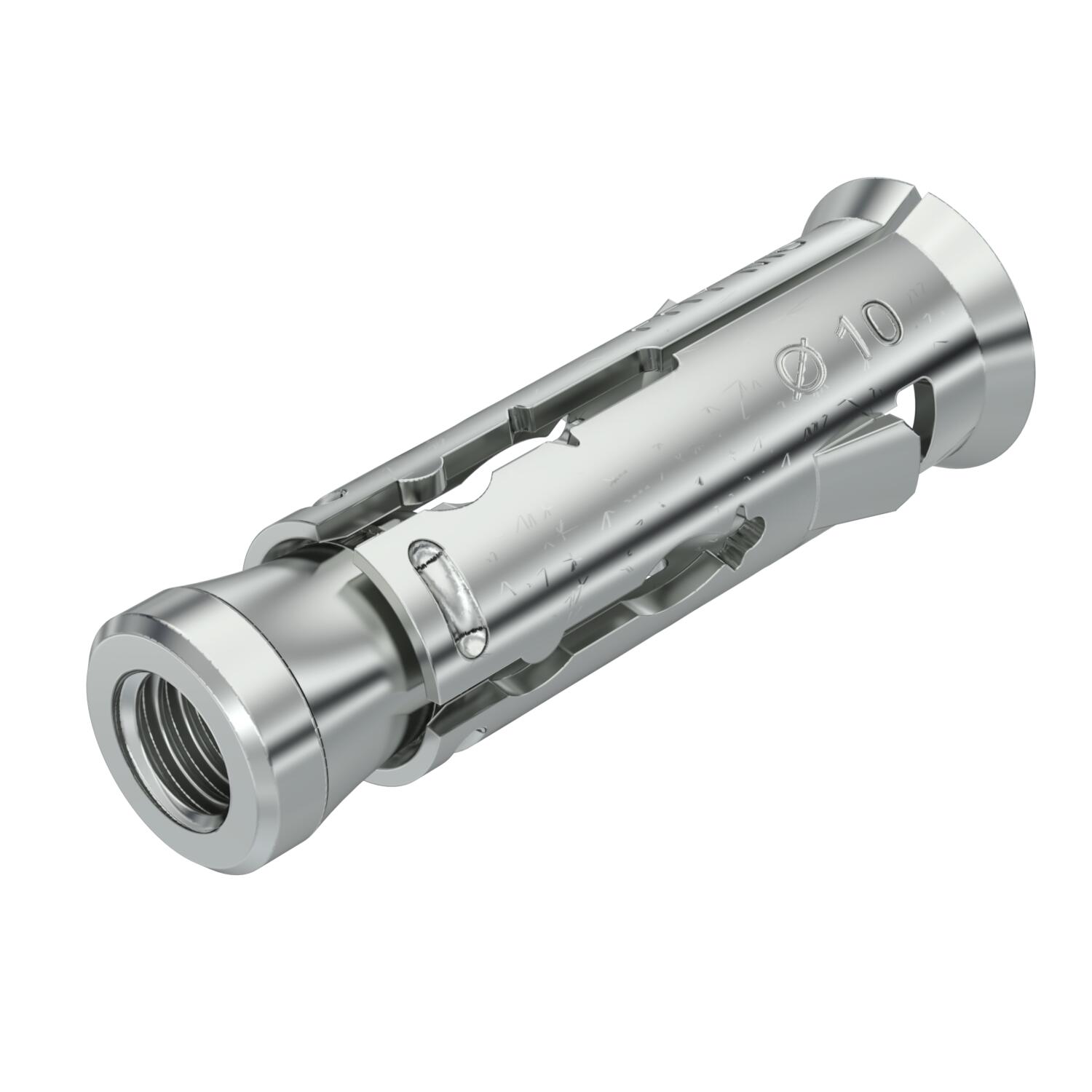

Hollow core anchor G

Item no. 3499040 | EAN 4012197504571

Product description
Product description
Hollow core anchor with internal thread for anchoring, for example, cable tray constructions, pipes, suspended ceilings, wooden constructions, etc. on walls and ceilings made from stressed concrete hollow-core slabs in indoor and outdoor areas. With an edge to prevent the anchor from being pulled in. When the fastening screw is screwed in the expansion sleeve is spread open through the cone and tightens against the drill hole walls. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-21/0857.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc

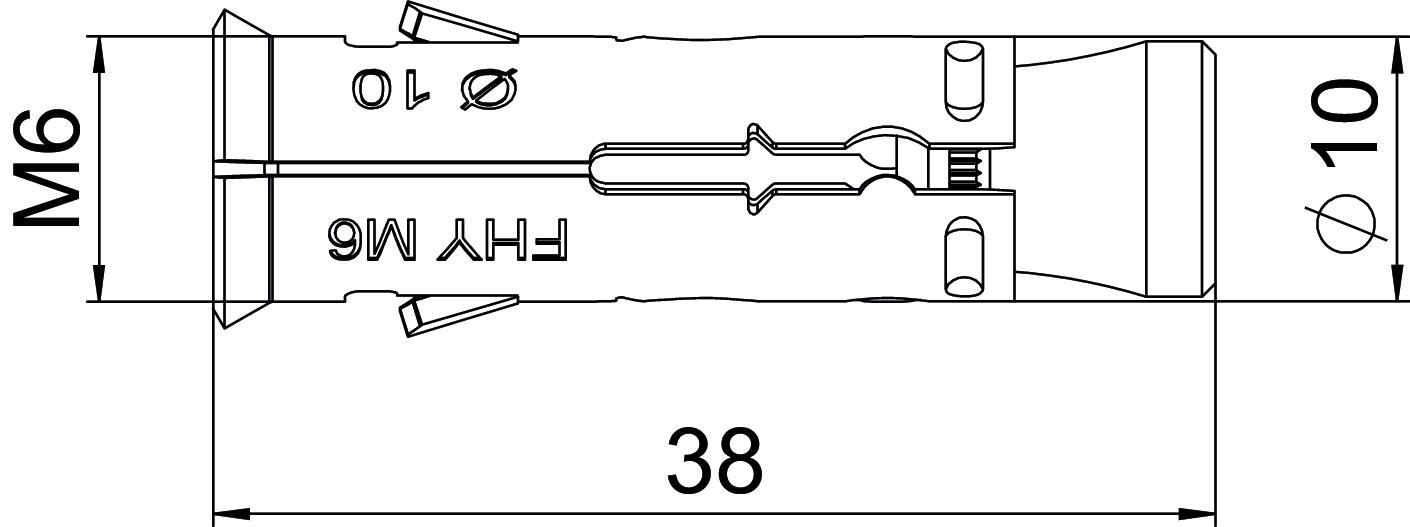

Dimension 10x37
Drill hole depth 50 mm
Drill hole diameter, min. 10 mm
Material Steel
Surface Electrogalvanized
Thread M6
Thread metric 6
Thread type Metric
With bolts no
With thread yes
All types

All types

Types Drill hole diameter, min. Thread Item no. Quantity SSU
FHY M6 10 mm M6 3499040
1 piece
FHY M8 12 mm M8 3499042
1 piece
FHY M10 16 mm M10 3499044
1 piece
FHY M12 18 mm M12 3499046
1 piece
