- Product description
-

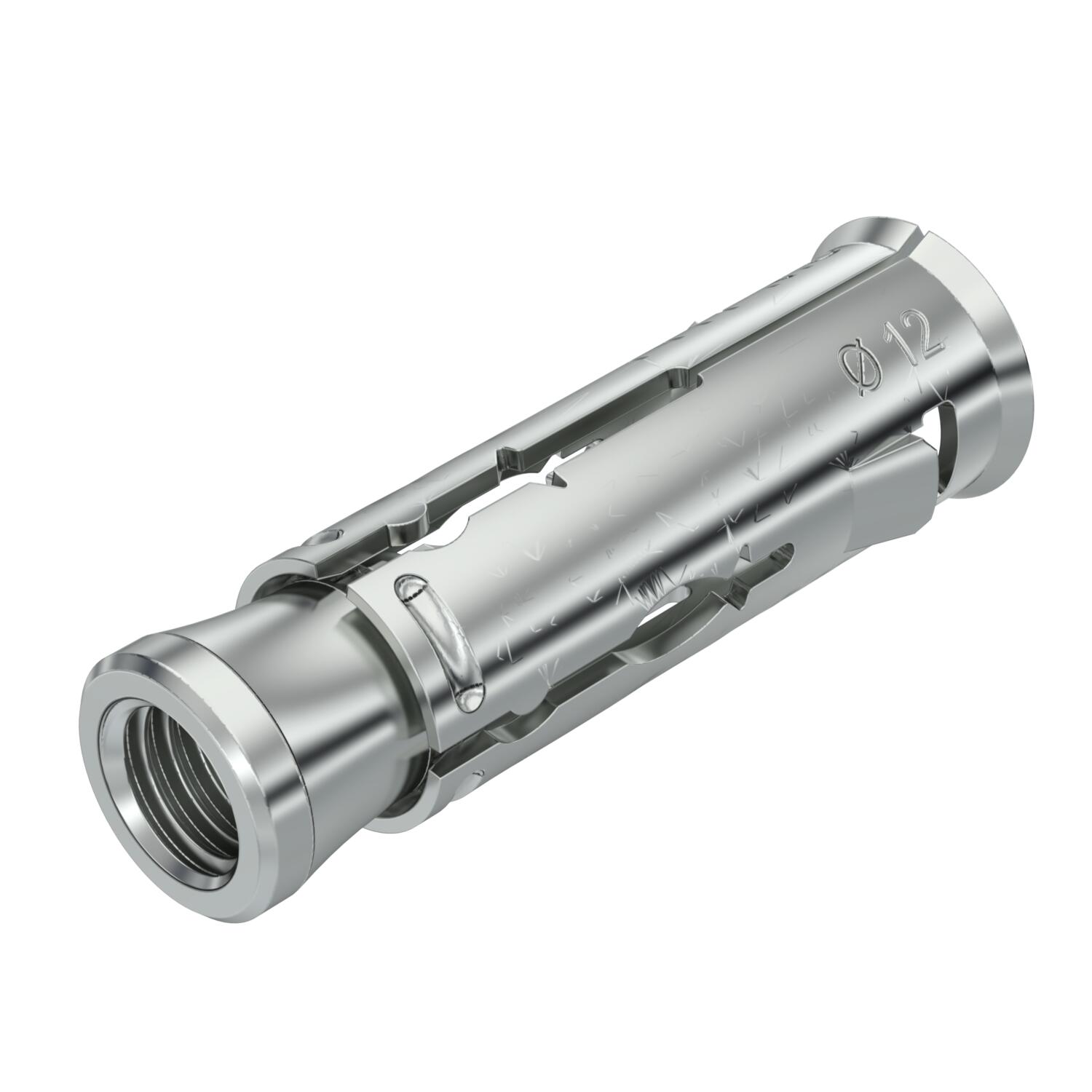

Product descriptionHollow core anchor with internal thread for anchoring, for example, cable tray constructions, pipes, suspended ceilings, wooden constructions, etc. on walls and ceilings made from stressed concrete hollow-core slabs in indoor and outdoor areas. With an edge to prevent the anchor from being pulled in. When the fastening screw is screwed in the expansion sleeve is spread open through the cone and tightens against the drill hole walls. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-21/0857.
-
- Technical data
-
Technical data

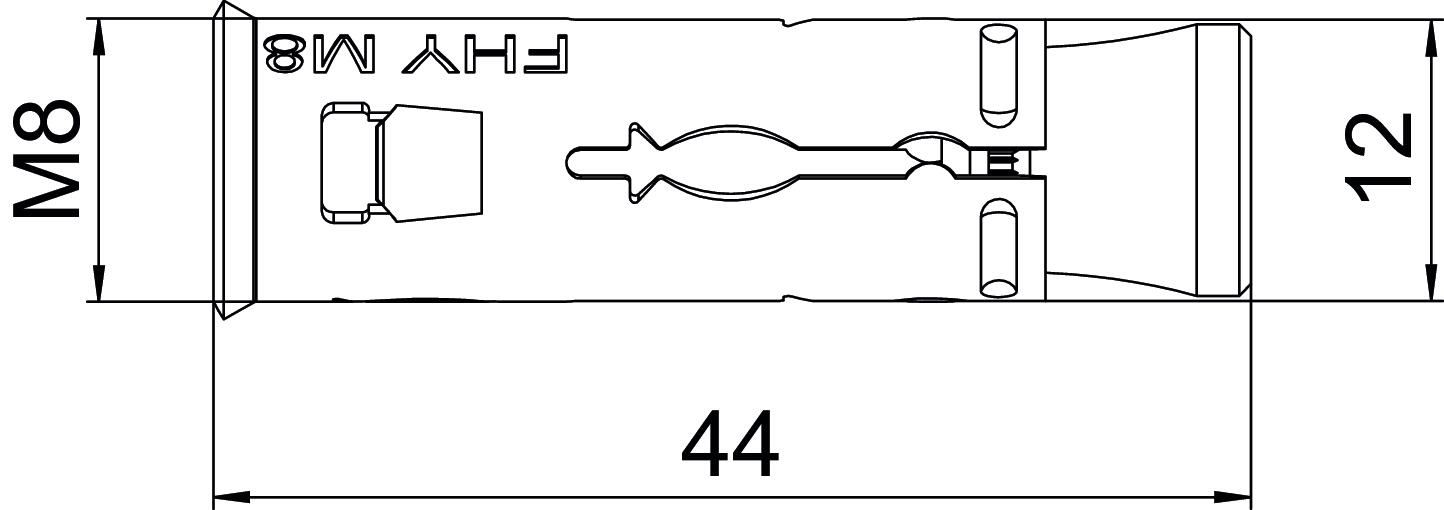

Colour zinc Dimension 12x43 Drill hole depth 60 mm Drill hole diameter, min. 12 mm Material Steel Surface Electrogalvanized Thread M8 Thread metric 8 Thread type Metric With bolts no With thread yes - All types
- Downloads
-
Data sheet FHY M8 / 3499042 , 0.16MB , pdfNo invitation to tender text is available for this product.
