LCIS 60 cable ladder, 3 m C30 FS 3000 | 200 | 1.5 | no

LCIS 60 cable ladder, 3 m C30 FS

Item no. 6209610 | EAN 4012196487578

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H....
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	6,4364 kg CO2e / 1 Meter
Colour	zinc
Dimension	60x200x3000
Dimension B	200 mm
Fastening of rung	Welded
Height	60 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile

Support spacing 1.5 m	3,3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,3 kN/m
Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,78 kN/m
Support spacing 4.0 m	0,4 kN/m
Support spacing 4.5 m	0,3 kN/m
Support spacing 5.0 m	0,2 kN/m
Surface	Strip galvanized
Usable cross-section	80 cm²
Usable cross-section	8000 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	200 mm

Technical data

Load diagram, cable ladder, type LCIS 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
LCIS 620 3 FS	3000 mm	200 mm	1.5 mm	no	6209610	m	3 m
LCIS 630 3 FS	3000 mm	300 mm	1.5 mm	no	6209612	m	3 m
LCIS 640 3 FS	3000 mm	400 mm	1.5 mm	no	6209614	m	3 m
LCIS 650 3 FS	3000 mm	500 mm	1.5 mm	no	6209616	m	3 m
LCIS 660 3 FS	3000 mm	600 mm	1.5 mm	no	6209618	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Straight and angle connector FS	LWVG 60 FS	6208895	piece	10 piece
Adjustable connector FS	LGVG 60 FS	6208941	piece	10 piece
Multifunctional connector FS	LMFV 620 FS	6225710	piece	1 piece
90° bend 60 FS	LB 90 620 R3 FS	6225042	piece	1 piece
T piece 60 FS	LT 620 R3 FS	6225210	piece	1 piece

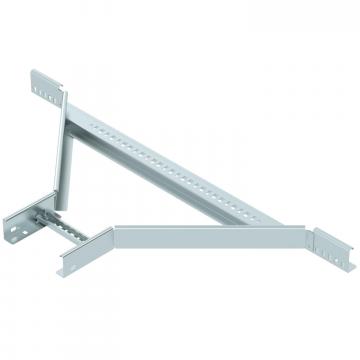

Add-on tee 60 FS	LAA 620 R3 FS	6225850	piece	1 piece
Adjustable bend element 60 FS	LGBE 620 FS	6225450	piece	1 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Connector FS	LAS 60 FS	6221351	piece	10 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Corner plate FS	LEB 25 FS	6221203	piece	1 piece
Corner plate FS	LEB 50 FS	6221246	piece	1 piece
Insert plate FS	ELB-L 20 FS	6103235	m	3 m
