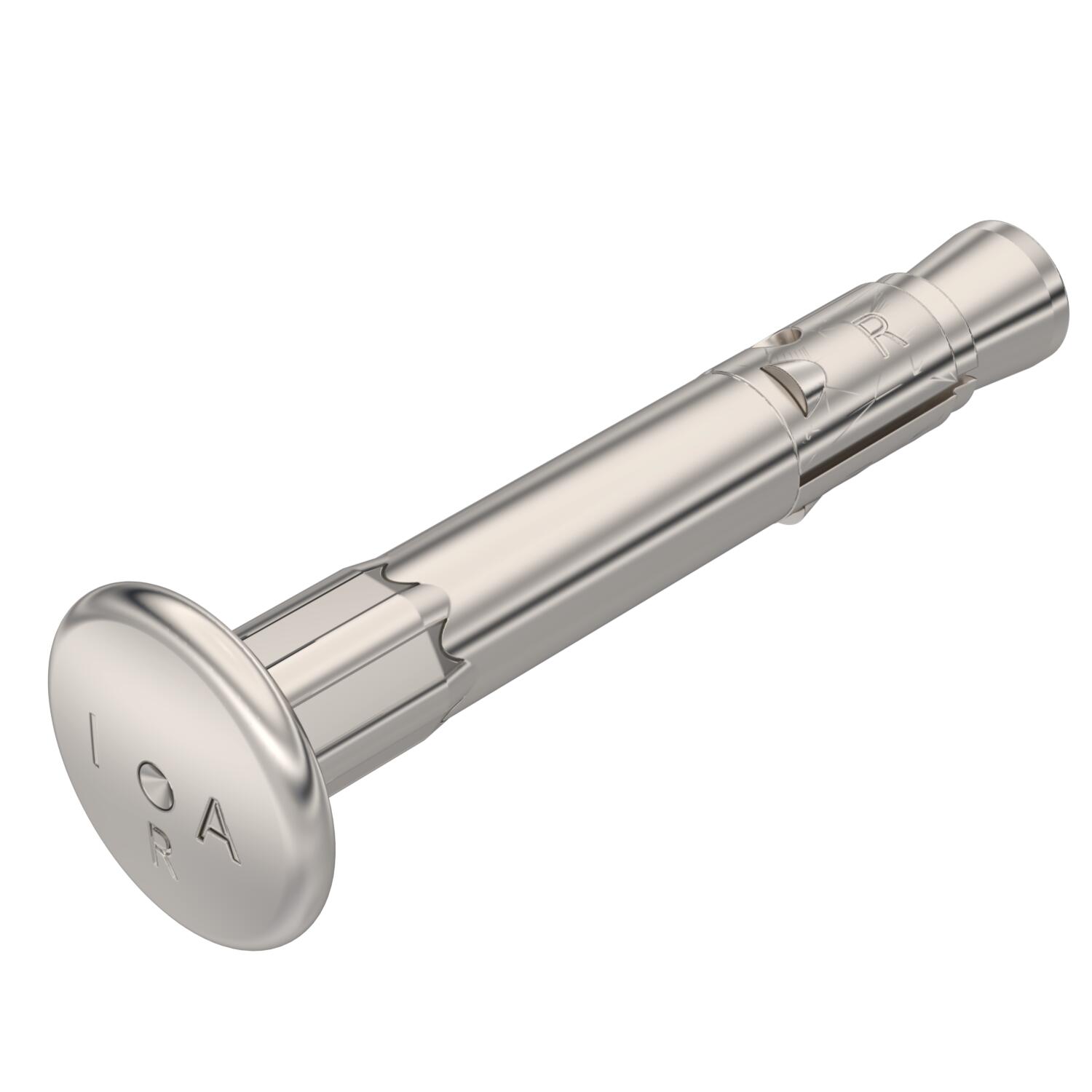

Nail tie with nail head A4

Item no. 3499014 | EAN 4012197507343

Product description
Product description
Nail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Approvals available yes
Clamping strength 5 mm
Colour stainless steel

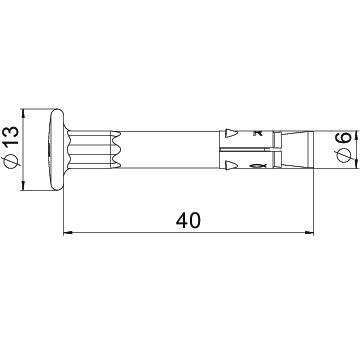

Dimension 6x42,5
Dimension L 42,5 mm
Drill hole depth 45 mm
Drill hole diameter, min. 6 mm
Fastening unit Miscellaneous
Length 42,5 mm
Material Stainless steel
Self-drilling no
Version for Lightning strike
All types

All types

Types Thread Item no. Quantity SSU
FNAII 6x30/5 3499010
1 piece
FNAII 6x30/5A4 3499014
1 piece
FNAII 6x30/5A5 3499016
1 piece
Downloads

No invitation to tender text is available for this product.
