- Product description
-

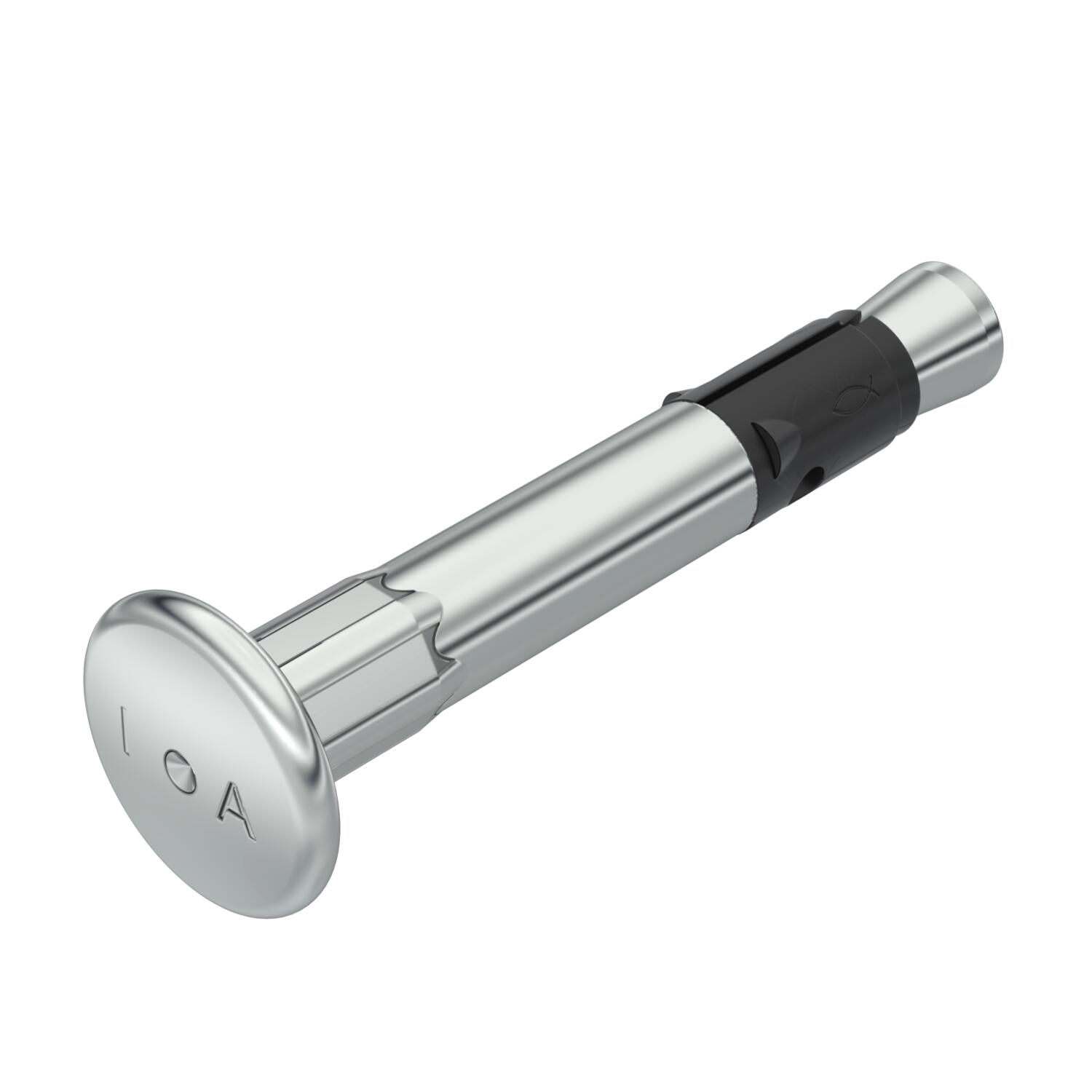

Product descriptionNail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
-
- Technical data
-
Technical data

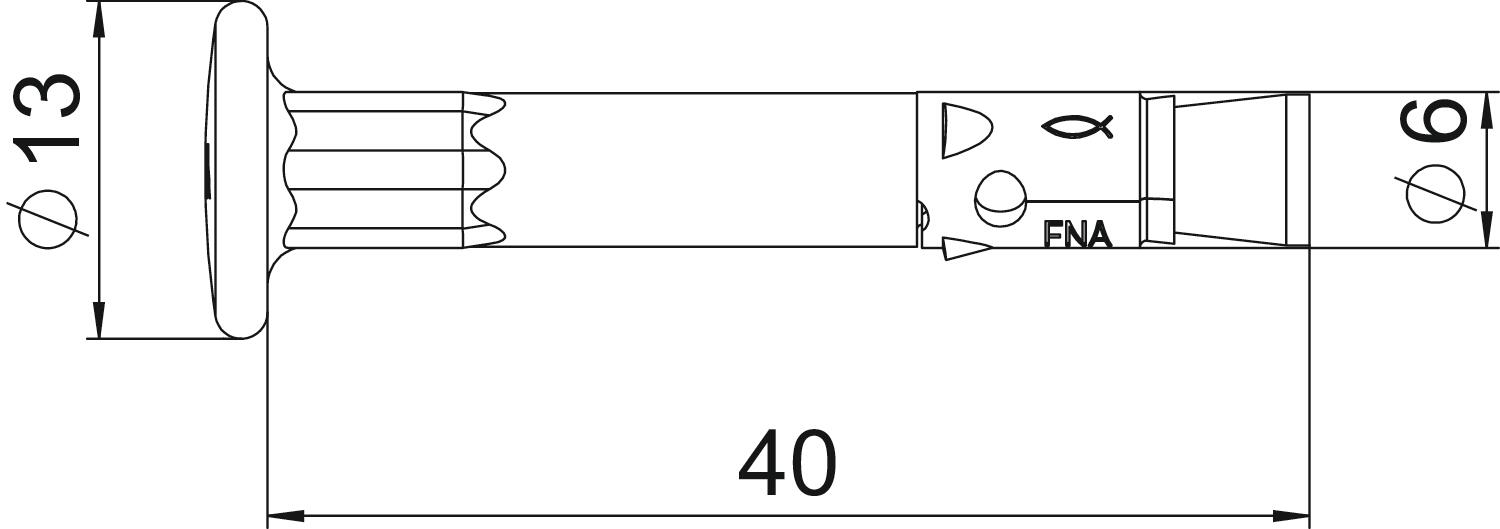

Approvals available yes Clamping strength 5 mm Colour zinc Dimension 6x42,5 Dimension L 42,5 mm Drill hole depth 45 mm Drill hole diameter, min. 6 mm Fastening unit Miscellaneous Length 42,5 mm Material Steel Self-drilling no Surface Electrogalvanized Version for Lightning strike - All types
- Downloads
-
Data sheet FNAII 6x30/5 / 3499010 , 0.15MB , pdfNo invitation to tender text is available for this product.
