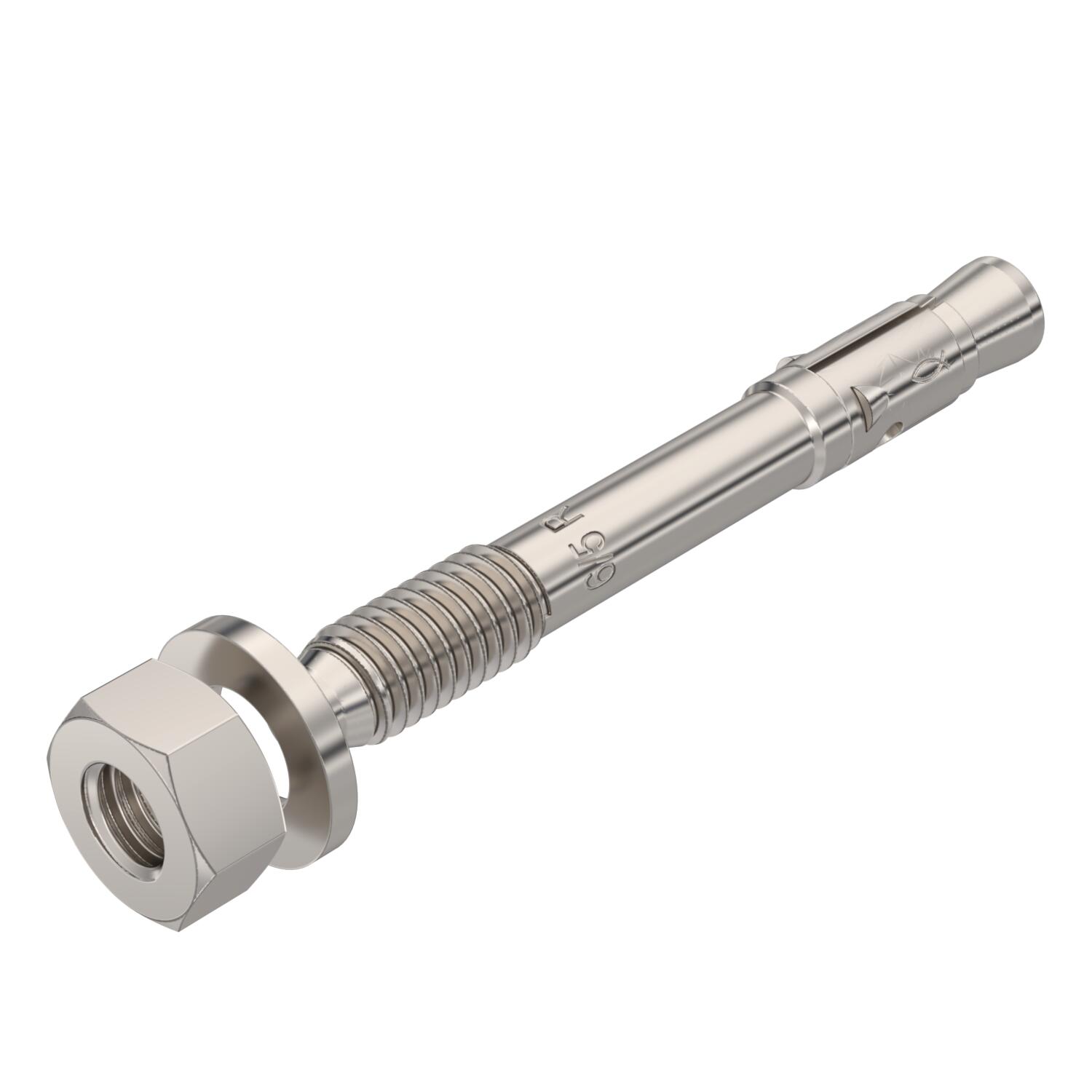

Nail tie with thread A4

Item no. 3499024 | EAN 4012197507374

M6
Product description
Product description
Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Approvals available yes
Clamping strength 10 mm
Colour stainless steel

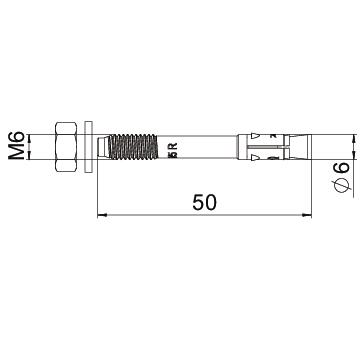

Dimension 6x50
Dimension L 55 mm
Drill hole depth 45 mm
Drill hole diameter, min. 6 mm
Fastening unit Miscellaneous
Length 55 mm
Material Stainless steel
Self-drilling no
Thread M6
Thread metric 6
Version for Lightning strike
All types

All types

Types Thread Item no. Quantity SSU
FNAII 6x30M6/5 M6 3499020
1 piece
FNAII 6x30M6/5A4 M6 3499024
1 piece
FNAII 6x30M6/5A5 M6 3499026
1 piece
Downloads

Download

No invitation to tender text is available for this product.
