- Product description
-

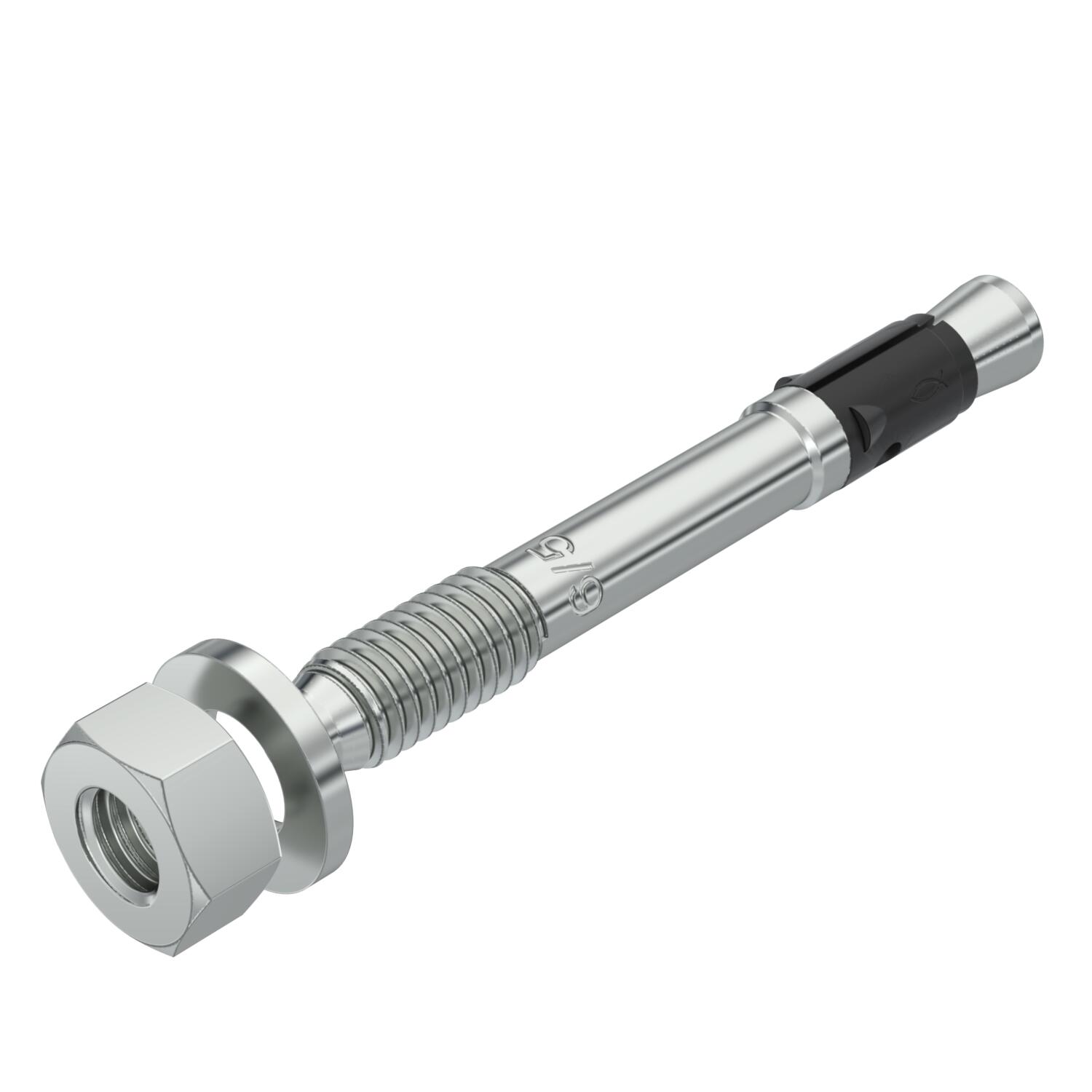

Product descriptionNail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
-
- Technical data
-
Technical data

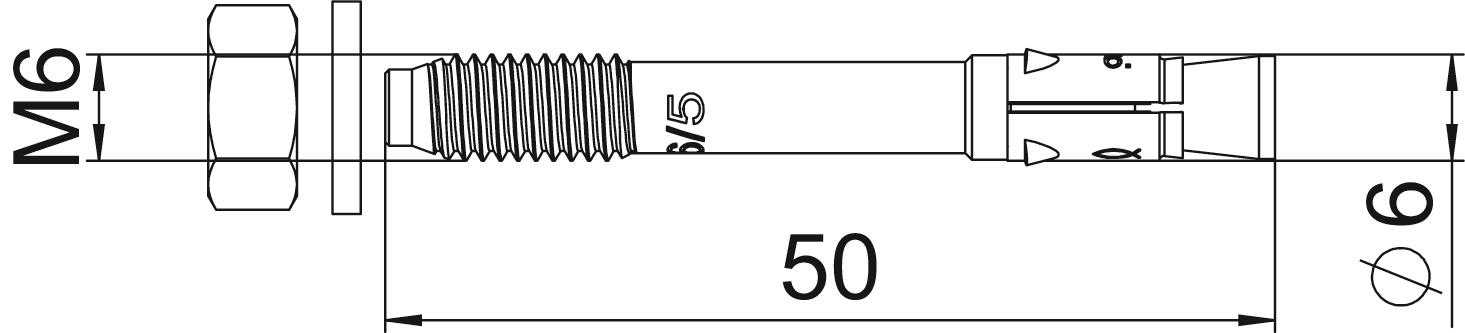

Approvals available yes Clamping strength 10 mm Colour zinc Dimension 6x50 Dimension L 55 mm Drill hole depth 45 mm Drill hole diameter, min. 6 mm Fastening unit Miscellaneous Length 55 mm Material Steel Self-drilling no Surface Electrogalvanized Thread M6 Thread metric 6 Version for Lightning strike - All types
- Downloads
-
Data sheet FNAII 6x30M6/5 / 3499020 , 0.16MB , pdfNo invitation to tender text is available for this product.
