Screw plug, metric thread

Item no. 2090654 | EAN 4012197456085

Item no. / Types

Thread

Product description

Product description

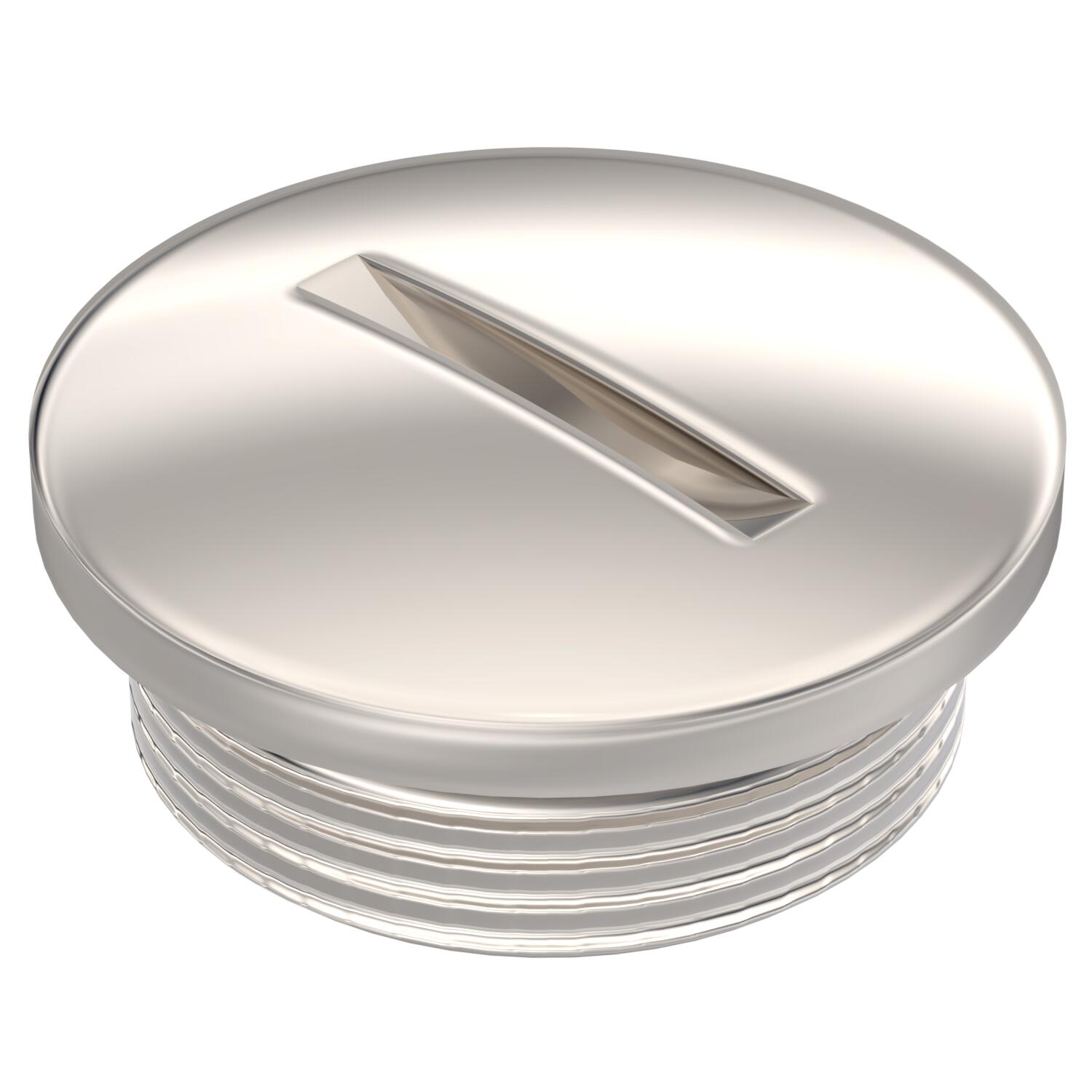

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With metric thread to DIN EN 60423 or ISO 68. Protection class IP 68 (5 bar/1 h).

Technical data

Technical data

Dimension	Ø24x9.5
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	no

Material	Brass
Nominal thread size metric/PG	20
Protection rating	IP68
Surface	Nickel-plated
Thread	M20 x 1,5
Thread increase	1,5 mm
Thread type	Metric

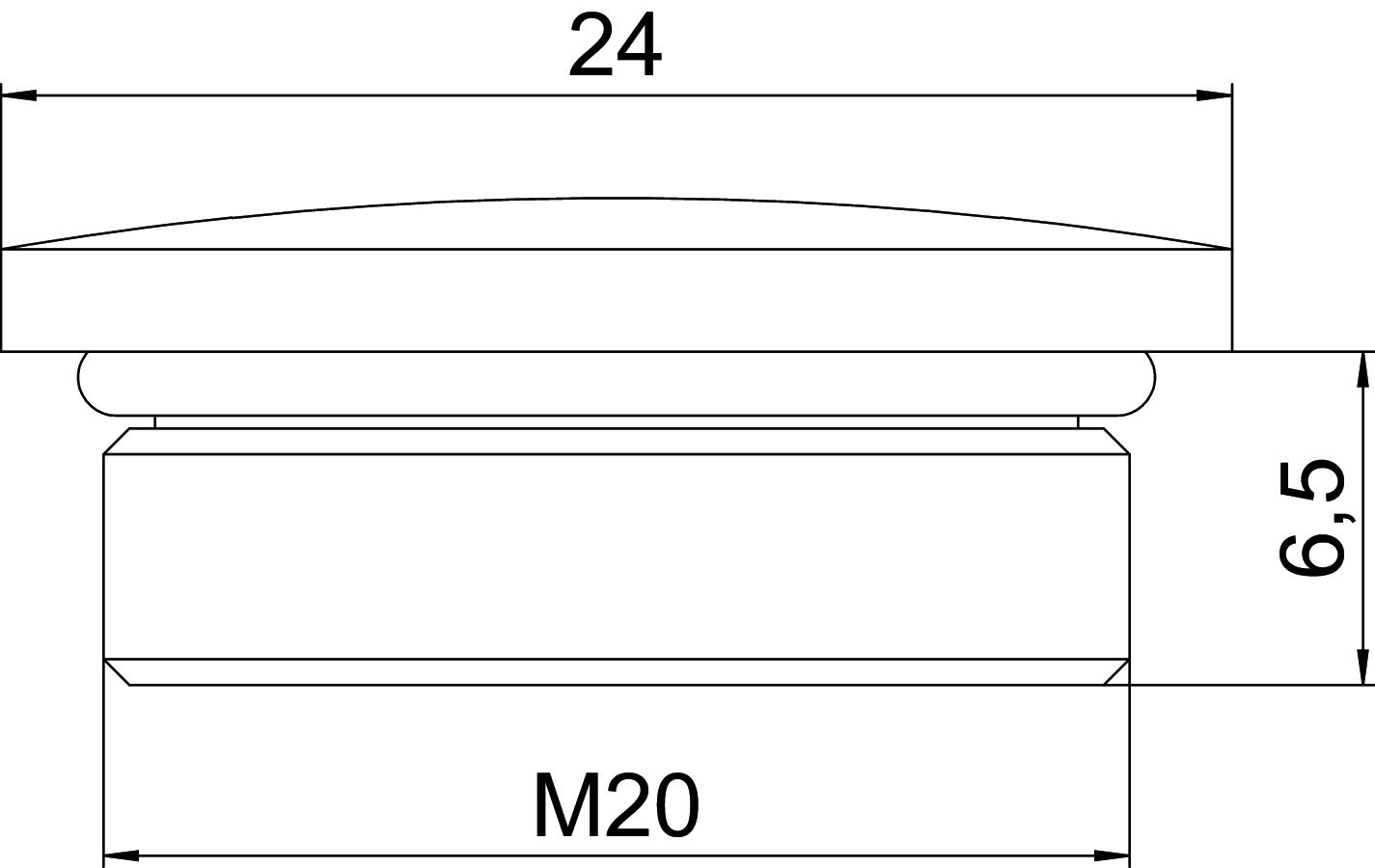

Dimensions

Dimension D	24 mm
Dimension L	6,5 mm
Height	10 mm

Length	24 mm
Width	24 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,0008 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,0008 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Thread	Item no.	Quantity	SSU
168 MS M12 + O	M12 x 1,5	2090650	piece	100 piece
168 MS M16 + O	M16 x 1,5	2090652	piece	100 piece
168 MS M20 + O	M20 x 1,5	2090654	piece	100 piece
168 MS M25 + O	M25 x 1,5	2090656	piece	50 piece
168 MS M32 + O	M32 x 1,5	2090658	piece	50 piece
168 MS M40 + O	M40 x 1,5	2090662	piece	50 piece
168 MS M50 + O	M50 x 1,5	2090664	piece	25 piece
168 MS M63 + O	M63 x 1,5	2090668	piece	25 piece
