Screw plug, metric thread M32 x 1,5
morepic-1 morepic-2

Screw plug, metric thread

Item no. 2090658 | EAN 4012197456160

Product description
Product description

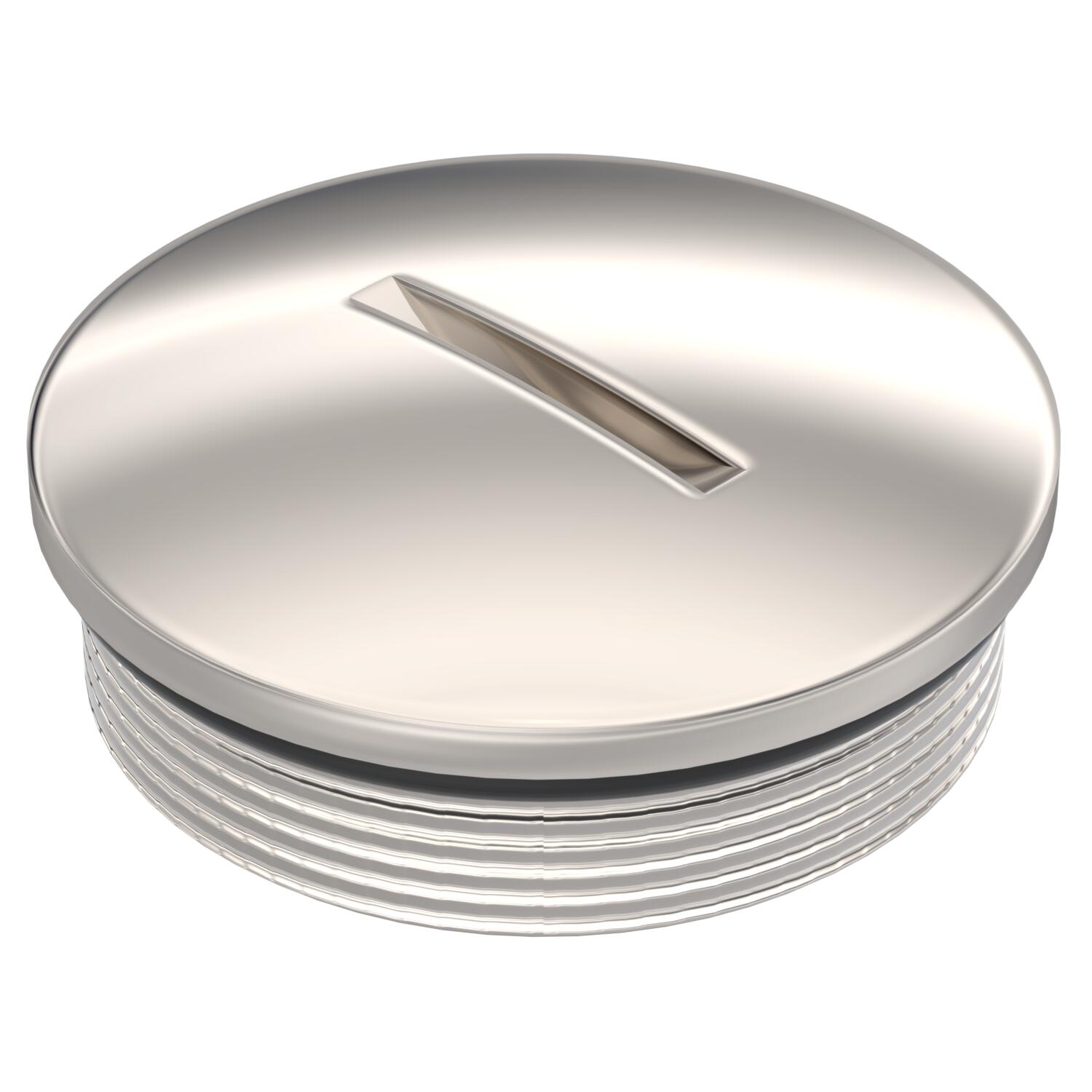

Metal screw plug with integrated sealing ring To close unused threaded openings, e.g. in housings or junction and branch boxes. With metric thread to DIN EN 60423 or ISO 68. Protection class IP 68 (5 bar/1 h).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
  • Protection rating IP 68
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

Dimension Ø35x12
explosion-proof no
Fibre-glass reinforced no
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant no
Material Brass
Nominal thread size metric/PG 32
Protection rating IP68
Surface Nickel-plated
Thread M32 x 1,5
Thread increase 1,5 mm
Thread type Metric

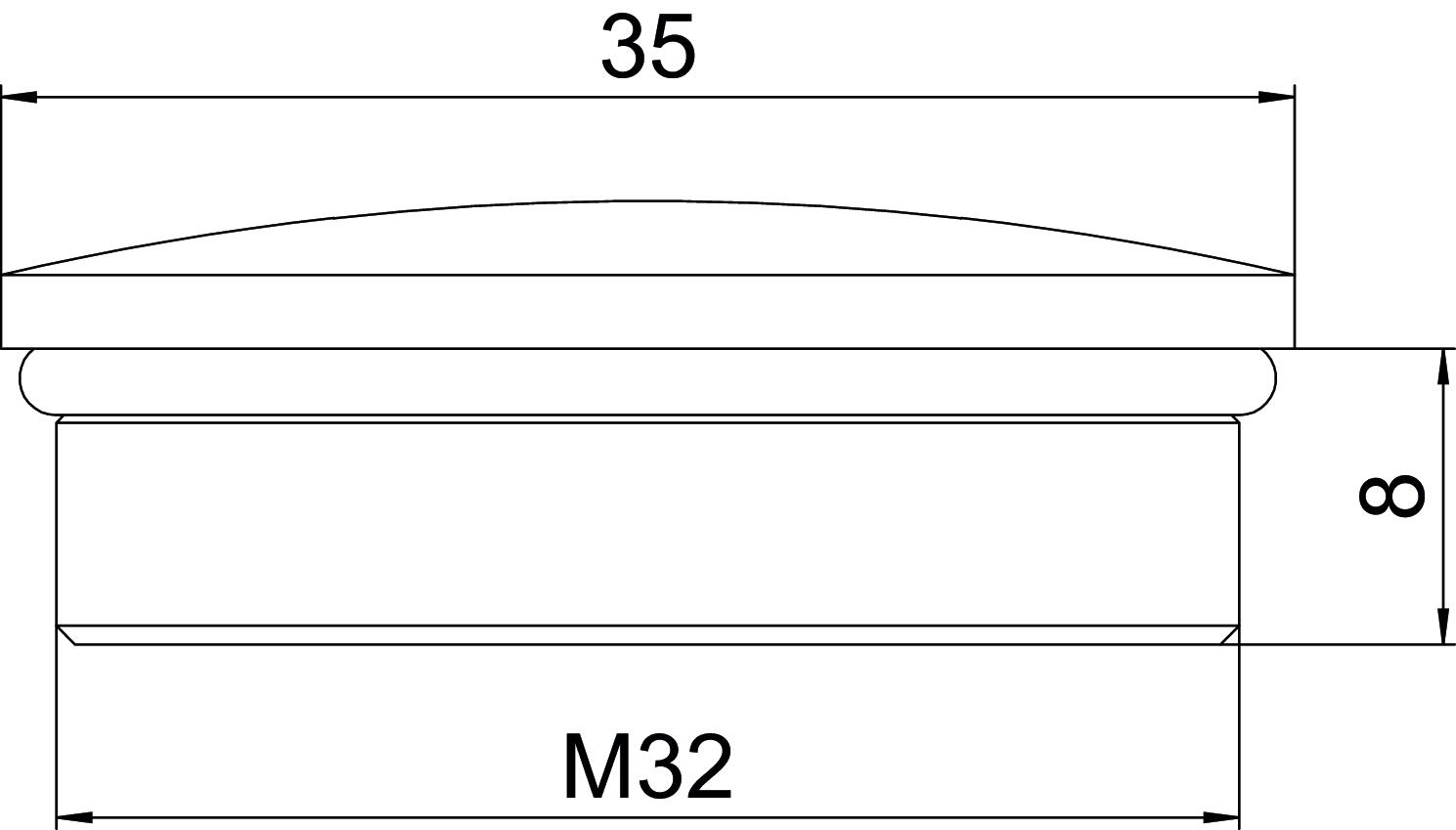

Dimensions

Dimension D 35 mm
Dimension L 8 mm
Height 12 mm
Length 35 mm
Width 35 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0023 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0023 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-27T00:00:00.000+0200
All types

All types

Types Thread Item no. Quantity SSU
168 MS M12 + O M12 x 1,5 2090650
100 piece
168 MS M16 + O M16 x 1,5 2090652
100 piece
168 MS M20 + O M20 x 1,5 2090654
100 piece
168 MS M25 + O M25 x 1,5 2090656
50 piece
168 MS M32 + O M32 x 1,5 2090658
50 piece
168 MS M40 + O M40 x 1,5 2090662
50 piece
168 MS M50 + O M50 x 1,5 2090664
25 piece
168 MS M63 + O M63 x 1,5 2090668
25 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
