Note: This article is discontinued.

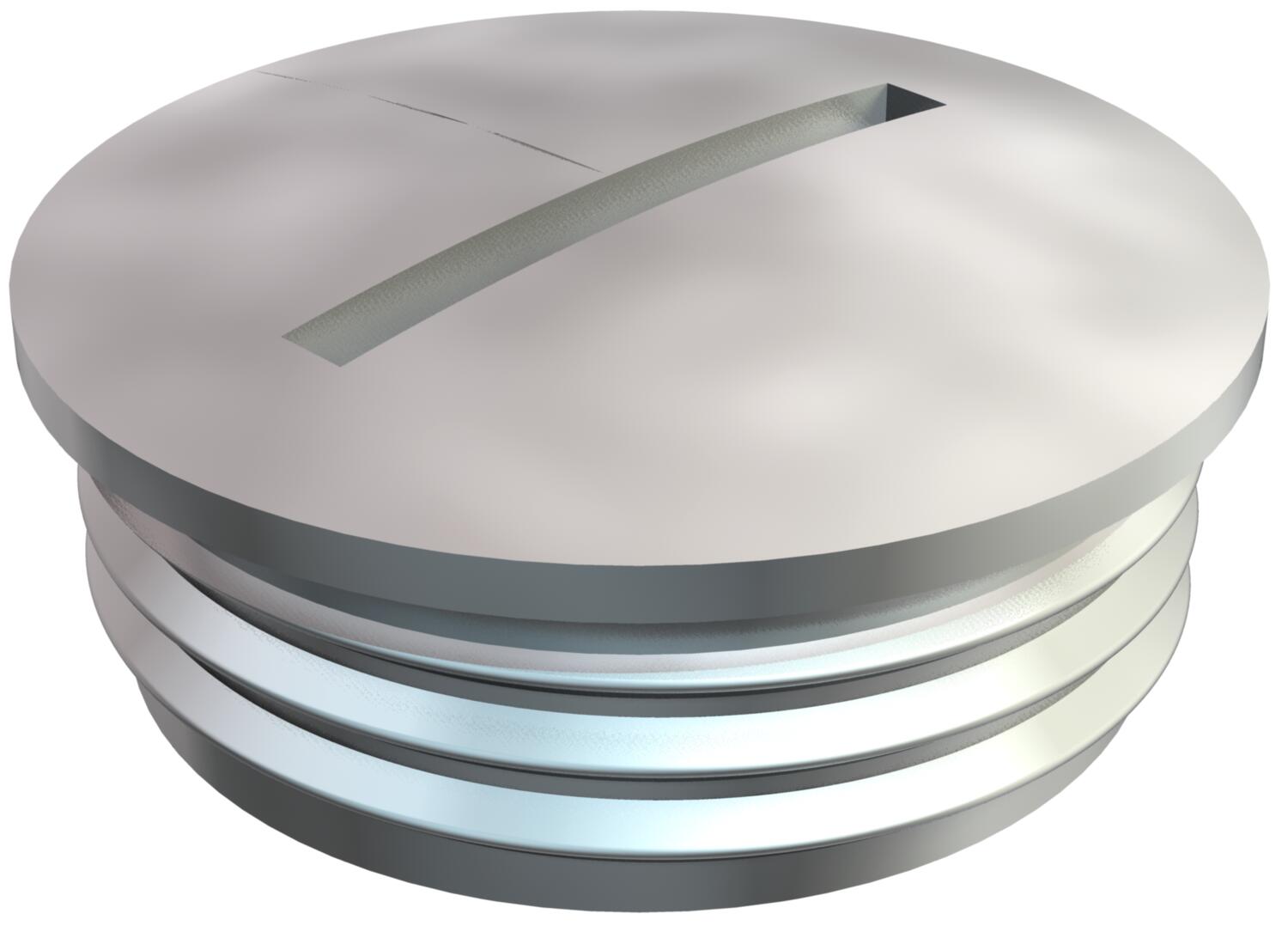

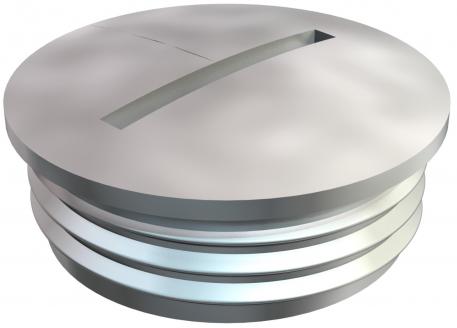

Screw plug, PG thread
Item no. 2090422 | EAN 4012195194415
- Product description
-
Product descriptionScrew plug N in accordance with DIN 46320, with PG thread to DIN 40430.
In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).
Sealing ring not contained in the scope of delivery.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Dimension PG42 explosion-proof no Fibre-glass reinforced no For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Brass Nominal thread size metric/PG 42 Protection rating IP68 Surface Nickel-plated Thread Pg 42 Thread increase 1,59 mm Thread type PG Dimensions

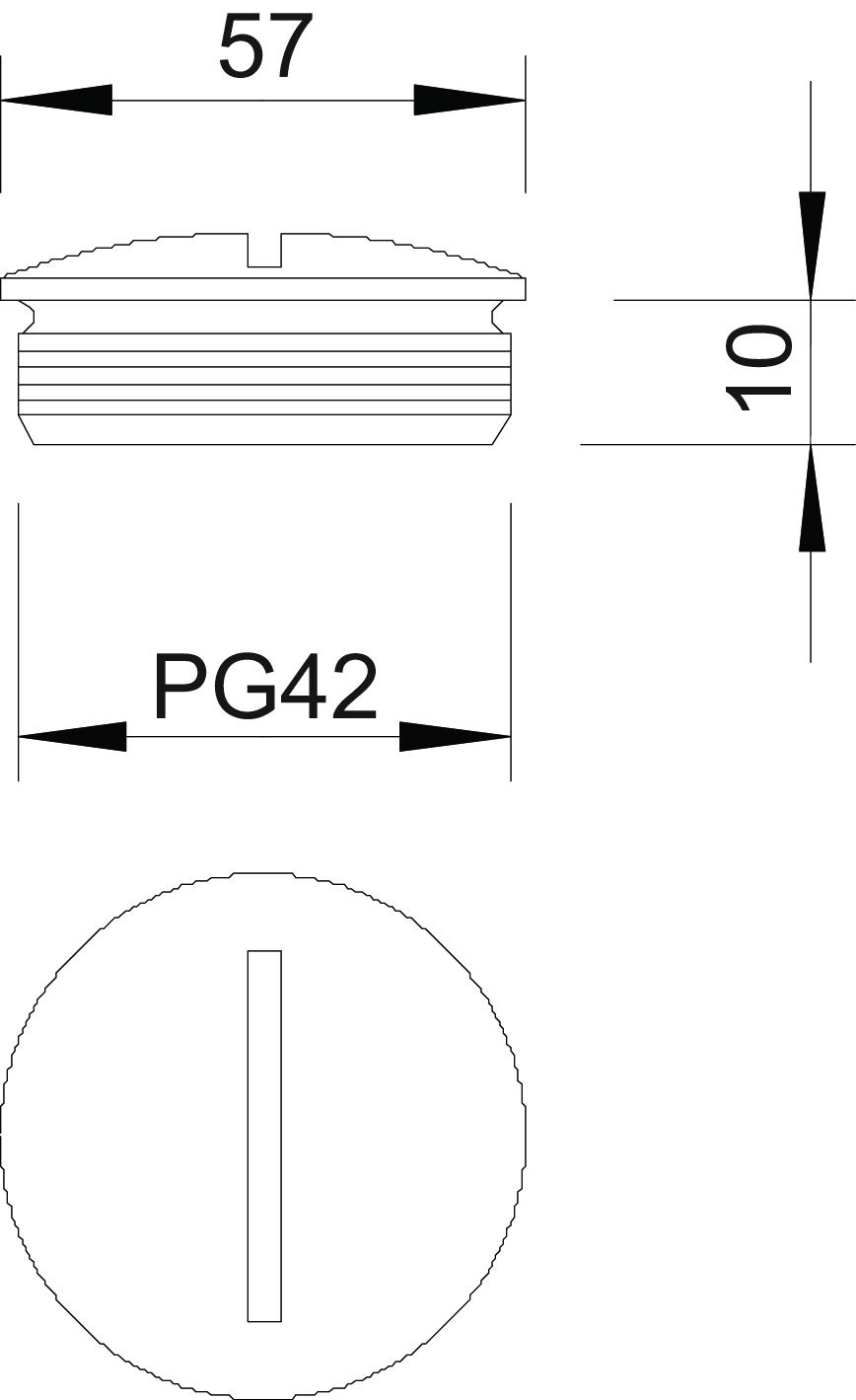

Dimension D 57 mm Dimension L 10 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3154 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,3154 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 168 MS PG42 / 2090422 , 0.20MB , pdfEU declaration of conformity 168 MS PG42 / 2090422 , 0.10MB , pdfUK Declaration of Conformity 168 MS PG42 / 2090422 , 0.09MB , pdfREACH Declaration of conformity 168 MS PG42 / 2090422 , 0.10MB , pdfRoHS Declaration of conformity 168 MS PG42 / 2090422 , 0.13MB , pdf
