Serrated washer DIN 6798 G 11 | 6.4 | 2.1 | M6
morepic-1 morepic-2

Serrated washer DIN 6798 G

Item no. 3404064 | EAN 4012195301639

Product description
Product description
Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension M6
External diameter 11 mm
Inner diameter 0,25 mm
Lock washer version Open external gearing
Material Steel
Plate thickness 0,08 in
Product series Bolts and hooks
ROHS-conformant yes
Surface Electrogalvanised
Thickness 2,1 mm
Thread M6

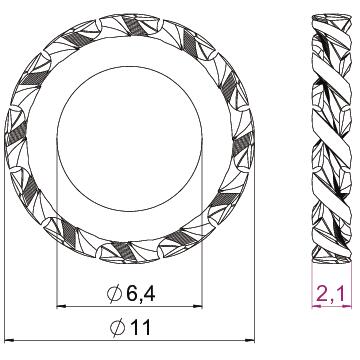

Dimensions

Dimension d 6,4 mm
Dimension d max. 11 mm
Dimension d min. 11 mm
Dimension h 2,1 mm
Height 2,1 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0013 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0013 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
SWS M5 G 10 mm 5.3 mm 1.8 mm M5 3404056
100 piece
SWS M6 G 11 mm 6.4 mm 2.1 mm M6 3404064
100 piece
SWS M8 G 15 mm 8.4 mm 2.4 mm M8 3404080
100 piece
SWS M10 G 18 mm 10.5 mm 2.7 mm M10 3404102
100 piece
SWS M12 G 20.5 mm 13 mm 3 mm M12 3404129
100 piece
