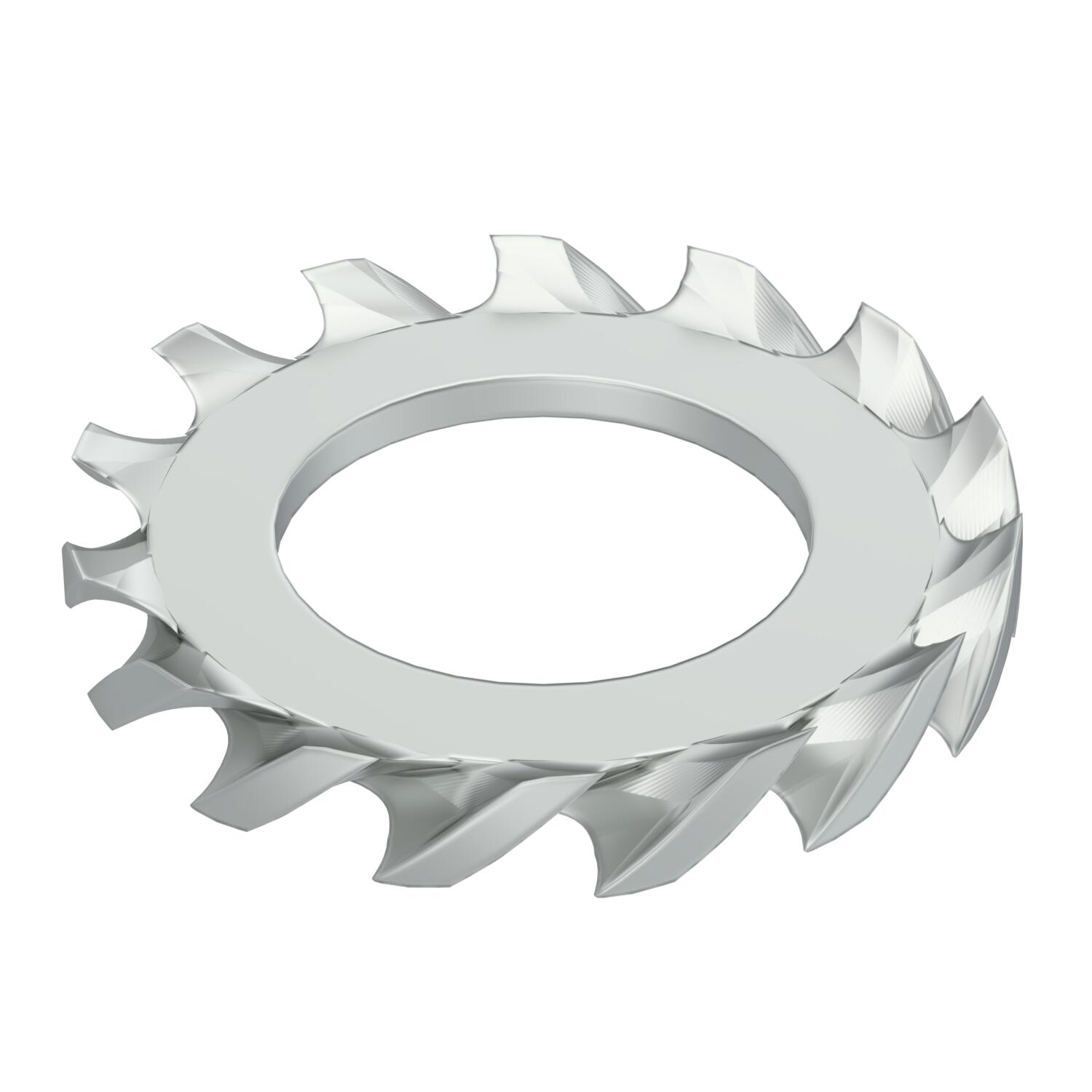

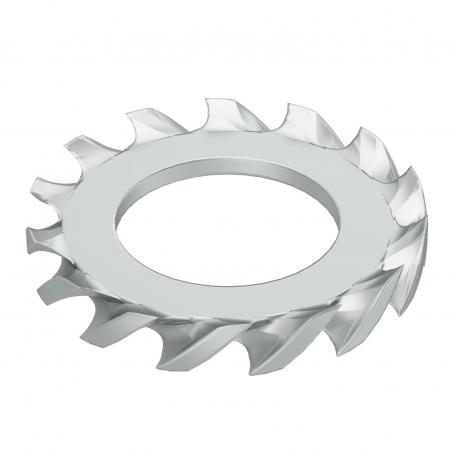

Serrated washer DIN 6798 G
Item no. 3404080 | EAN 4012195301691
- Product description
-
Product descriptionSerrated washer to DIN 6798, shape A.
-
- Technical data
-
Technical data
Dimension M8 External diameter 15 mm Inner diameter 0,33 mm Lock washer version Open external gearing Material Steel Plate thickness 0,09 in Product series Bolts and hooks ROHS-conformant yes Surface Electrogalvanised Thickness 2,4 mm Thread M8 Dimensions

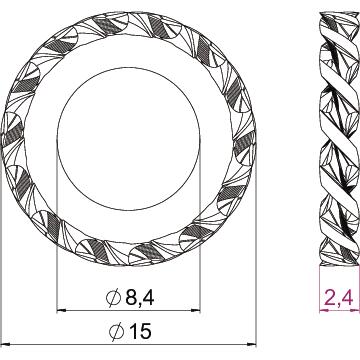

Dimension d 8,4 mm Dimension d max. 15 mm Dimension d min. 15 mm Dimension h 2,4 mm Height 2,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0023 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0023 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet SWS M8 G / 3404080 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity SWS M8 G / 3404080 , 0.06MB , pdfREACH Declaration of conformity SWS M8 G / 3404080 , 0.12MB , pdfRoHS Declaration of conformity SWS M8 G / 3404080 , 0.13MB , pdf
