Support bracket AS 15

Item no. / Types

Length	41 mm

Width

F in kN	1.5 kN

Product description

Product description

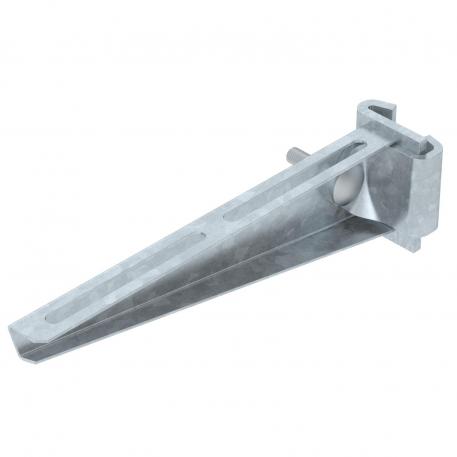

Light-duty support bracket for infinitely adjustable fastening on IS 8 support.

The support bracket can be fastened to both sides of the I support.

The necessary clamping lug (item no. 6419015), including bolt and nut can be ordered individually for bracket widths 110–160 mm.

Technical data

Colour	zinc
Dimension	B210mm
EPD article	yes
F in kN	1,5 kN
Maintain electrical functions	no

CO2 Footprint (GWP) Cradle-to-Gate	0,9596 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,9596 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Length	Width	F in kN	Item no.	Quantity	SSU
AS 15 11 FT	41 mm	110 mm	1.5 kN	6421326	piece	1 piece
AS 15 16 FT	41 mm	160 mm	1.5 kN	6421334	piece	1 piece
AS 15 21 FT	41 mm	210 mm	1.5 kN	6421350	piece	1 piece
AS 15 31 FT	41 mm	310 mm	1.5 kN	6421385	piece	1 piece
AS 15 41 FT	41 mm	410 mm	1.5 kN	6421423	piece	1 piece
AS 15 51 FT	41 mm	510 mm	1.5 kN	6421466	piece	1 piece
AS 15 61 FT	41 mm	610 mm	1.5 kN	6421490	piece	1 piece
