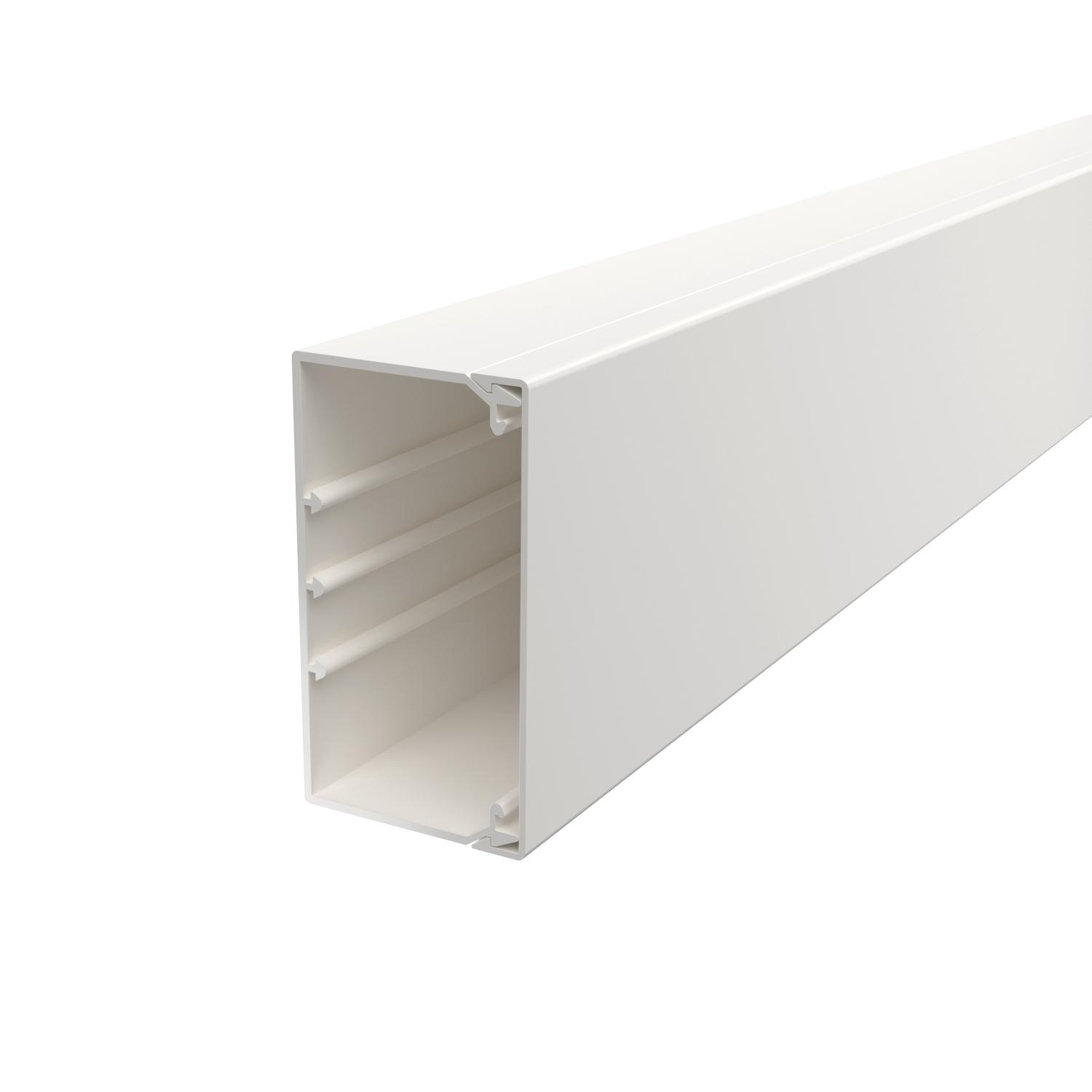

Trunking, type WDK 60110 2000 | 108.5 | 60.3 | Pure white; RAL 9010

Trunking, type WDK 60110

Item no. 6191215 | EAN 4012196363438

Item no. / Types

Length	2000 mm

Width	108.5 mm

Height	60.3 mm

Colour

Product description

Product description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.

Technical data

Technical data

Antibacterial treatment	no
Cable retaining clip	yes
Colour	Pure white; RAL 9010
Delivery on a roll	no
Dimension	60x110x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	29

Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	24
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	22
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Usable cross-section	5076 mm²
Version, cable trunking cover	Loose
Weatherproof	yes

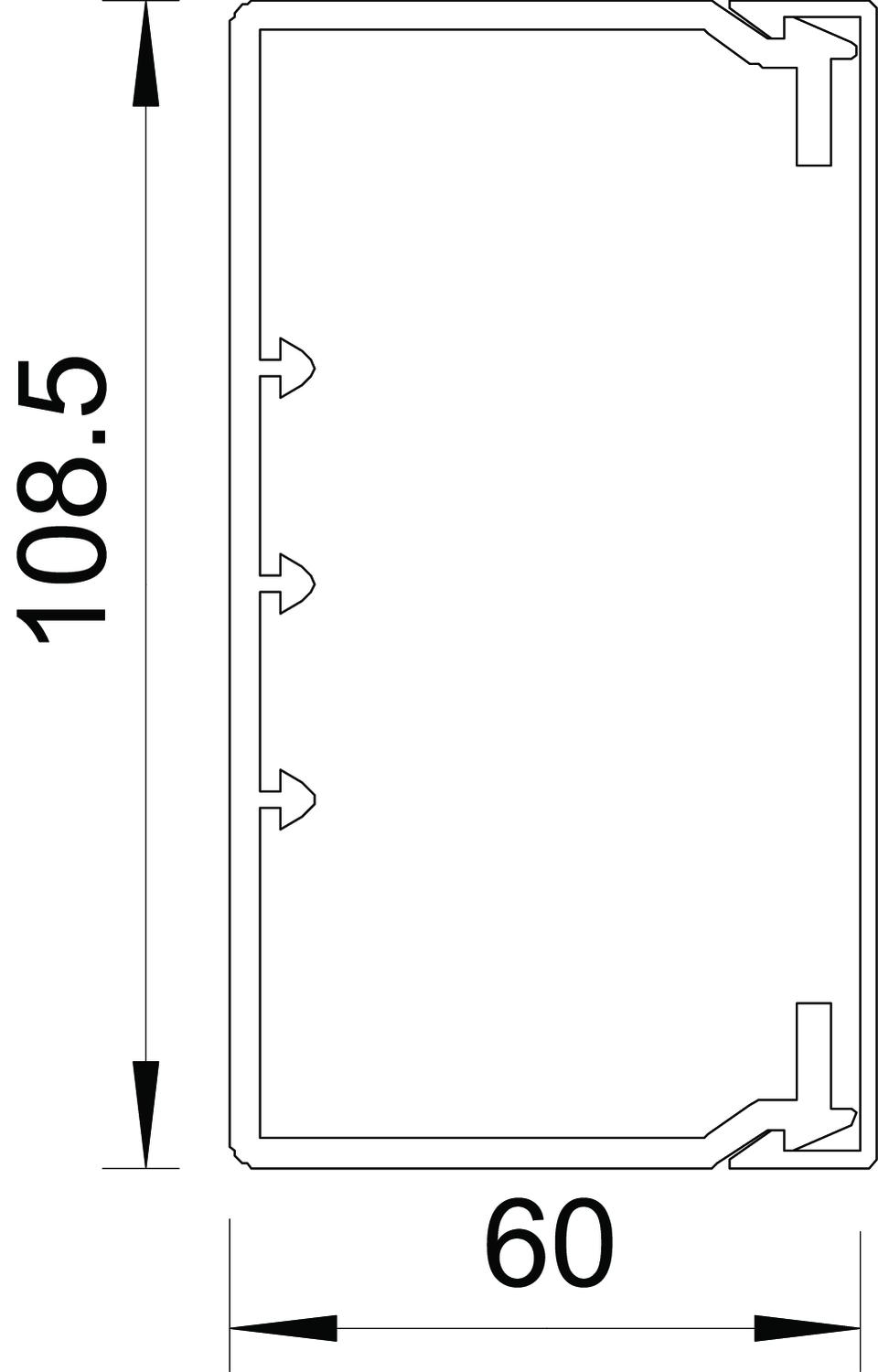

Dimensions

Height	60,3 mm
Length	2000 mm

Width	108,5 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	2,3507 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	2,3507 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Width	Height	Colour	Item no.	Quantity	SSU
WDK60110RW	2000 mm	108.5 mm	60.3 mm	Pure white; RAL 9010	6191215	m	16 m
WDK60110SW	2000 mm	108.5 mm	60.3 mm	Jet black; RAL 9005	6022018	m	16 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

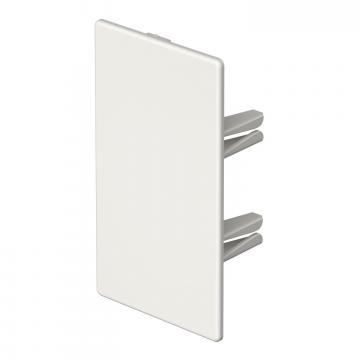

End piece, trunking type WDK 60110	WDK HE60110RW	6193307	piece	10 piece

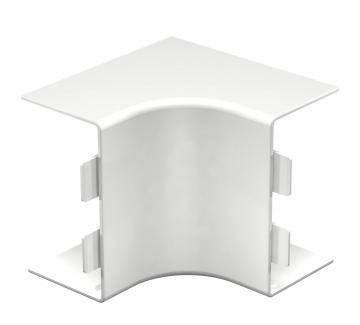

Internal corner cover, trunking type WDK 60110	WDK HI60110RW	6192033	piece	2 piece

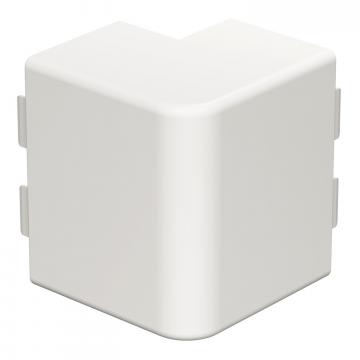

External corner cover, trunking type WDK 60110	WDK HA60110RW	6192335	piece	2 piece

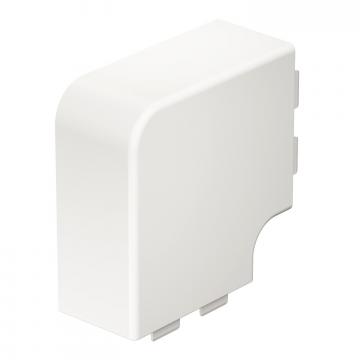

Flat angle cover, trunking type WDK 60110	WDK HF60110RW	6192939	piece	2 piece
Partition for WDK trunking, trunking height 60 mm	2371 60	6023118	m	2 m
Universal adapter for direct fastening	UNI BA	2357064	piece	1 piece
